Kraibon rubber

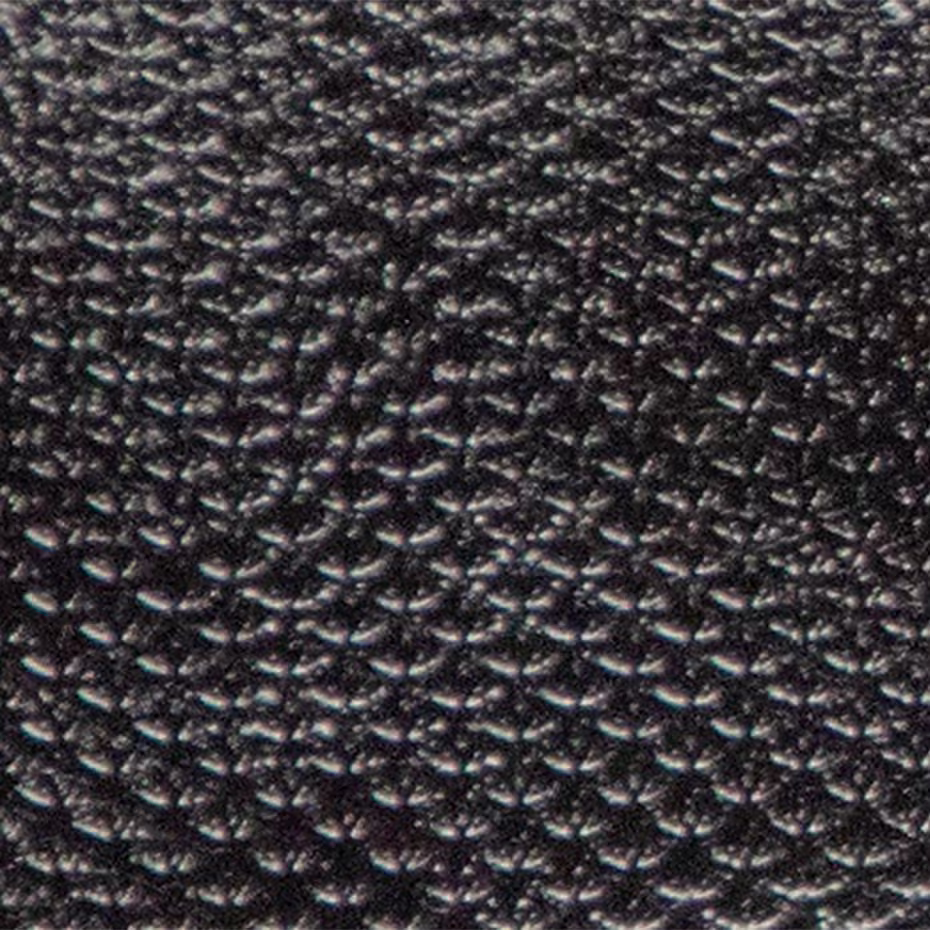

616B65 Kraibon rubber is a thin film made of non-cross-linked rubber that hardens jointly with the resin in the existing fabrication process. A composition of hard and soft material can be created, combining the favourable mechanical properties of fibre composites with the good elasticity of rubber.
The usual fabrication process for a fibre composite component remains unchanged. No additional bonding agents are needed.
616B65 Kraibon rubber is a thin film made of non-cross-linked rubber that hardens jointly with the resin in the existing fabrication process. A composition of hard and soft material can be created, combining the favourable mechanical properties of fibre composites with the good elasticity of rubber.
The usual fabrication process for a fibre composite component remains unchanged. No additional bonding agents are needed.
Kraibon is a thin film of non-cross-linked rubber that cures together with the resin in the existing manufacturing process. A structure of hard and soft material can be achieved which combines the good mechanical properties of fibre composite plastics with the good "elastic" properties of rubber. The usual manufacturing process of a fibre composite component remains unchanged - no additional bonding agents are required.
This innovative technology is now also being used in orthopaedics and can be used, for example, to produce soft edges in orthoses. The drapability of the material allows it to be easily moulded to the component. It can be inserted and draped like prepreg. Different material thicknesses can be achieved by laying several layers.
| Material | Rubber |
| Scope of application | Orthosis lower limb, Orthosis upper limb, Prosthesis lower limb, Prosthesis upper limb |
| Use | Definitely socket production, Definitely orthosis production |
All benefits at a glance
Processing in combination with Ottobock pre-pregs – no adhesive or mechanical joint required for a flexible edge
Smooth transition between hard and soft material
Excellent draping characteristics for easy mould-ing to the component
Various material thicknesses can be obtained with multiple layers
Cut pieces of Kraibon rubber can be stored in the supplied grip bag in a conventional freezer
Can be combined with Ottobock reinforcement materials and Ottobock prepregs
Product information
| Material | Rubber |
| Scope of application | Orthosis lower limb, Orthosis upper limb, Prosthesis lower limb, Prosthesis upper limb |
| Use | Definitely socket production, Definitely orthosis production |
| Product type | Thermoset prepregs |
| Colour | Black |
| Weight | 520 g/m² |
| Contents | 28 Page |
| Order unit | Package |
| Amputation level | Transfemoral amputation, Transradial amputation, Transtibial amputation, Transhumeral amputation |
Product Data
| Article number | Packaging | Thickness of each blank | Package | Weight per unit area |
|---|---|---|---|---|
| 616B65=2 | 28 blanks, 250 mm x 300 mm | 0.5 mm | 2 m² | 520 g/m² |
| Article number | 616B65=2 |
| Packaging | 28 blanks, 250 mm x 300 mm |
| Thickness of each blank | 0.5 mm |
| Package | 2 m² |
| Weight per unit area | 520 g/m² |
