Laminating island

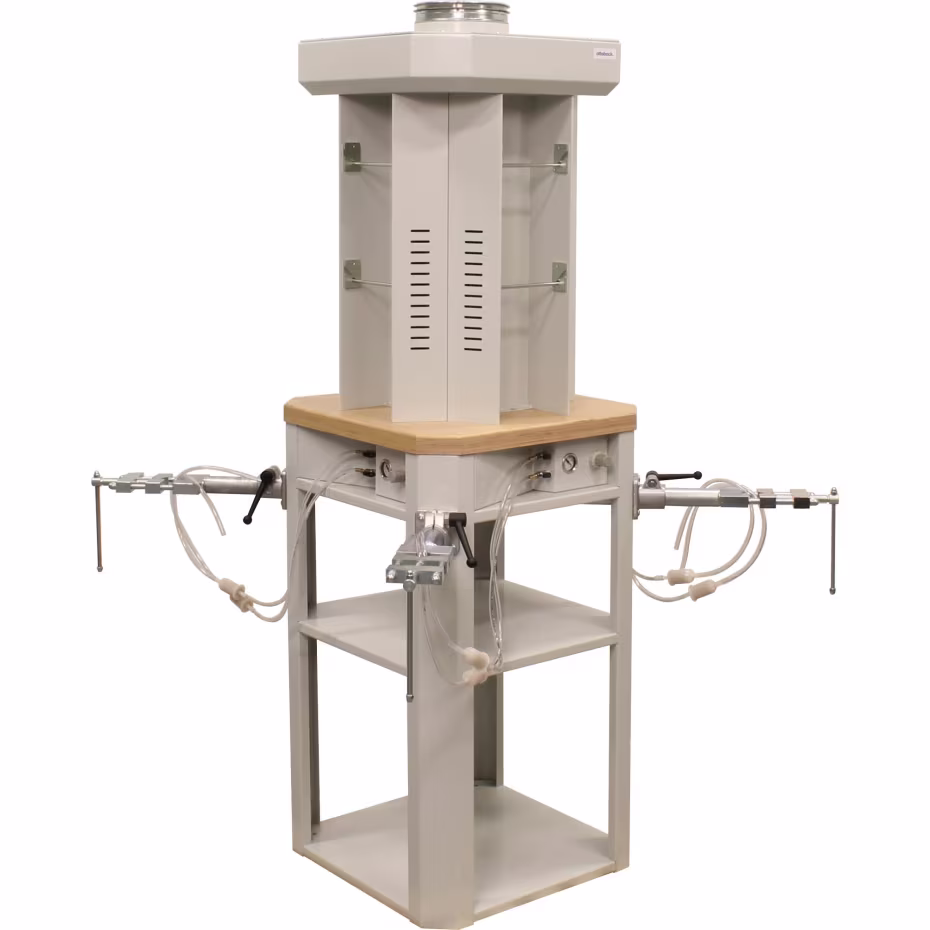

The laminating island features a compact, well-conceived design. It has four fully equipped workstations with two vacuum connections each (one with variable vacuum), an Orthofix clamping device and an optional casting assist – while taking up minimal space.
The laminating island features a compact, well-conceived design. It has four fully equipped workstations with two vacuum connections each (one with variable vacuum), an Orthofix clamping device and an optional casting assist – while taking up minimal space.
The required roll material can be stored directly at the workstation for efficient laminating work. The mobile material cart with an integrated cutting surface is an additional aid. It also ensures materials and tools are always close to hand.
Workers’ health is also protected. Slots integrated in the laminating island extract vapours efficiently. A flexibly adjustable suction arm (optional) can also be attached.
| Material | Steel, Wood |
All benefits at a glance
Saves space – four fully equipped workstations take up a minimal area. The optional trolley offers extra working space and storage options.
Efficient – clever design gives you access to all work materials right at the workstation.
Safe – vapours are extracted via slots and a suction arm (optional), external suction required.
Product information
| Material | Steel, Wood |
Product Data
| Article number | 758Z138=1 | 758R30=1 |
| Description | Laminating island | Material cart, mobile, for 758Z138 |
| Equipment | Four workstations, each consisting of the following: | Cutting surface (replaceable), tool shelf, |
| Size (W x D x H) | 1,100 mm x 1,100 mm x 1,870 mm | 1,079 mm x 400 mm x 1,017 mm |
| Vacuum connection Ø | Replaceable, 13 mm or 19 mm | |
| Connecting cable | 5 m power cord with two-pin earthed plug | |
| Weight | 102 kg | 38 kg |
| Colour | Light grey | Light grey |
| Article number | 758Z138=1 |
| Product features | 40 mm multiplex beech wood worktop, 2 earthed outlets with hinged cover centred under the workbench top, outlet connection via 5 m cable with earthed plug over the top of the laminating island, 4 work positions, each position consisting of:, - 1 x 704G11 Orthofix clamping device, - 2 x vacuum connection (Ø 6 mm) with ball valve, one of which allows the vacuum to be regulated, - 2 x 616R2=10X2 vacuum hose (inner Ø 6 mm, overall length per hose: 1 m), - 2 x 755Z20=2 filter, - 1 x pressure gauge, - 2 x roll holder (width of each roll holder: 170 mm), - Suction slots, - Shelf, suction slots, shelf |
| Size (W x D x H) | 1,100 mm x 1,100 mm x 1,870 mm |
| Connecting cable | 5 m power cord with two-pin earthed plug |
| Volume flow | Without suction arm, recommended: 450 m³/h |
| Vacuum connection Ø | Replaceable, 13 mm or 19 mm |
| Extraction nozzle Ø | 200 mm |
| Weight | 102 kg |
| Material | Steel, Wood |
| Colour | Light grey (RAL 7035) |
| Accessories | 760A40 Suction arm 758Z185=1 Film holder 755Z47=1 Add-on tank lamination island |
