What makes the Triton side flex carbon foot different from other prosthetic feet with side-to-side flexibility?

The Triton side flex is a prosthetic foot whose extraordinary degree of side-to-side flexibility sets it apart from other feet. It adapts to the current situation immediately and in a controlled manner.This improves comfort and the feeling of safety.

Can the resistance of the side-to-side flexibility be adjusted?

No, empirical values show that the same resistance is ideal for all users.

Is the Triton side flex suitable for sports?

Yes, the Triton side flex is suitable for common field sports, like the other products in the Triton line of prosthetic feet. The Triton side flex is a good alternative for users with a low build height. The Triton side flex is a good choice for sports that require sideward lunges (such as table tennis).

Is the Triton side flex waterproof?

The Triton side flex is waterproof and can be used in fresh, salt or chlorinated water. In order to maintain the functionality of the foot, it is essential to clean it as instructed after using it in water.

Is the Triton side flex available in my size?

The prosthetic foot is available in a range of sizes from 22 to 30 cm. Your O&P professional selects the Triton side flex for you based on your foot size and body weight.

Do I need a new prosthesis to use the Triton side flex?

No, the Triton side flex can be integrated into either a new or an existing modular prosthesis, provided it has sufficient build height. Your O&P professional will advise you and select, order and install the prosthetic foot for you.

Do I need to wear special shoes with the Triton side flex?

No, the Triton side flex is delivered with a footshell that is based on the shape of a natural foot, making it compatible with most commercial footwear. Most foot sizes also come in a slim and a normal variant to match your natural foot as closely as possible. The abducted big toe on the footshell makes it possible to wear sandals.

Can I try out the Triton side flex?

Yes, of course you can test the Triton side flex. Please just speak to your O&P professional.

Triton side flex | Your will. Your way.

Benefits at a glance

Triton side flex – adaptable with socket stability

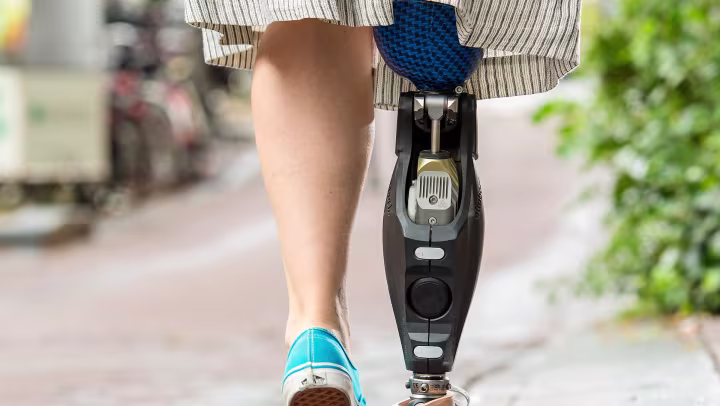

Close-up auf Marije's Triton side flex, which effortlessly adapts to a laterally sloping curb.

Adapts effortlessly to sideward slopes

There was a time when Marije would have taken detours. Thanks to her Triton side flex, she now avoids neither sloping sidewalks nor slanted curbs and other side inclines in the city.

Marije and her boyfriend stand in the bow of a tourist boat, taking selfies with a smartphone.

Standing safely on unsteady surfaces

A boat tour through Amsterdam: What a great surprise from her boyfriend! The couple take a lot of selfies, and these carefree images show that Marije’s prosthetic foot gives her secure, worry-free footing – even on unsteady surfaces.

Marije skilfully navigates the confined space between the furniture in her kitchen with her Triton side flex carbon foot.

Moving in confined spaces

A quick movement between the sink and fridge, a small step to the side towards the cutlery drawer. Thanks to her Triton side flex, Marije can prepare a meal in a hurry when she has to – before her next shift at the hospital.

Marije leans to the side against her fridge with her Triton side flex prosthetic foot as she talks to her boyfriend.

Relaxed leaning and standing

With her previous prosthetic foot, Marije used to find it very uncomfortable to simply lean sideways against a wall or door frame while chatting with friends. But the side-to-side flexibility of her Triton side flex lets her stand in a relaxed position, even during longer conversations.

Marije carries her bicycle out of the corridor and down some steps into the courtyard with her Triton side flex prosthetic foot.

Safe and comfortable movement

Thanks to her Triton side flex, everyday activities like quickly moving the bicycle down the steps from the hallway or carrying the weekly shopping up to the flat do not represent a challenge for Marije.

Standing with her legs wide apart, Marije playfully swings a young patient around by her hands in a treatment room.

Standing with legs apart: safe and comfortable

As a paediatrician, Marije is always concerned about the well-being of her small patients. Her Triton side flex gives her stability she can count on when lifting and carrying the little ones.

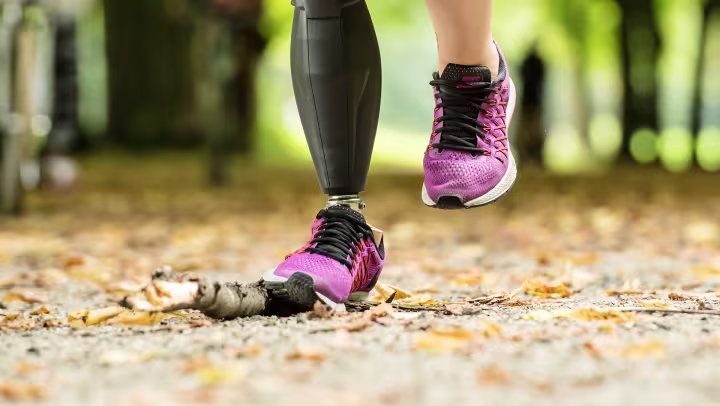

Close-up auf Marije's Triton side flex, which allows her to effortlessly step over a fallen branch.

Walking on uneven ground and obstacles

Thanks to her Triton side flex prosthetic foot, which easily compensates for side-to-side unevenness and small obstacles, Marije is now able to dedicate her full attention to her surroundings and the people around her when she takes walks outside

Marije and her boyfriend sit on the edge of a fountain and let their legs dangle in the water.

Afraid of water? Not with the Triton side flex!

Marije is glad that she can spend time in and on the water when the weather is hot. She enjoys the refreshing coolness with her boyfriend and her Triton side flex carbon foot. The Triton side flex is resistant to fresh, salt and chlorinated water.

More than a prosthetic foot. It’s a foundation.

The prosthetic foot makes a difference in the success of the treatment. Learn more about prosthetic feet in general and our other foot options here.

User Experience

Triton makes the difference

Marije

Marije is a vibrant young woman who is always on the go – at her job, during her free time in the park or with a boat on Amsterdam’s canals. Thanks to her new Triton side flex prosthetic foot and its unique side-to-side adaptability, Marije goes her own way without needing to think about where she puts her foot next.

Functionality

More lateral flexibility, more secure ground contact

New lateral flexibility

Conventional prosthetic feet adapt to lateral slopes only to a small extent at heel strike. Only later on do these feet adapt to a greater extent as the load on the forefoot increases, with maximum adaptation occurring at the end of the stance phase. The Triton side flex adapts to lateral slopes and uneven ground to a high degree right after heel strike. This has a positive impact on the user’s comfort and safety.

Specifications

Product information

Product type	Enhanced composite design feet
Mobility grade	3, 4
Max. body weight	125 kg
Amputation level	Transfemoral amputation, Hip disarticulation, Transtibial amputation
Material	Carbon

Product Data

Article number	Mobility grade	Side	Size	Weight (without footshell)	Stiffness	Max. body weight	Heel height	System height	Colour	Shape
1C68=L22-1-P/15S	3, 4	left	22 cm	585 g	1	55 kg	15 +/- 5 mm	~ 57 mm	15=light brown	slim
1C68=L22-1-P/4S	3, 4	left	22 cm	585 g	1	55 kg	15 +/- 5 mm	~ 57 mm	4=Skin colour	slim
1C68=L22-2-P/15S	3, 4	left	22 cm	585 g	2	75 kg	15 +/- 5 mm	~ 57 mm	15=light brown	slim
1C68=L22-2-P/4S	3, 4	left	22 cm	585 g	2	75 kg	15 +/- 5 mm	~ 57 mm	4=Skin colour	slim
1C68=L22-3-P/15S	3, 4	left	22 cm	585 g	3	100 kg	15 +/- 5 mm	~ 57 mm	15=light brown	slim
1C68=L22-3-P/4S	3, 4	left	22 cm	585 g	3	100 kg	15 +/- 5 mm	~ 57 mm	4=Skin colour	slim
1C68=L23-1-P/15S	3, 4	left	23 cm	585 g	1	55 kg	15 +/- 5 mm	~ 57 mm	15=light brown	slim
1C68=L23-1-P/4S	3, 4	left	23 cm	585 g	1	55 kg	15 +/- 5 mm	~ 57 mm	4=Skin colour	slim
1C68=L23-2-P/15S	3, 4	left	23 cm	585 g	2	75 kg	15 +/- 5 mm	~ 57 mm	15=light brown	slim
1C68=L23-2-P/4S	3, 4	left	23 cm	585 g	2	75 kg	15 +/- 5 mm	~ 57 mm	4=Skin colour	slim
1C68=L23-3-P/15S	3, 4	left	23 cm	585 g	3	100 kg	15 +/- 5 mm	~ 57 mm	15=light brown	slim
1C68=L23-3-P/4S	3, 4	left	23 cm	585 g	3	100 kg	15 +/- 5 mm	~ 57 mm	4=Skin colour	slim
1C68=L24-1-P/15N	3, 4	left	24 cm	585 g	1	55 kg	10 +/- 5 mm	~ 64 mm	15=light brown	normal
1C68=L24-1-P/15S	3, 4	left	24 cm	585 g	1	55 kg	15 +/- 5 mm	~ 58 mm	15=light brown	slim
1C68=L24-1-P/4N	3, 4	left	24 cm	585 g	1	55 kg	10 +/- 5 mm	~ 64 mm	4=Skin colour	normal
1C68=L24-1-P/4S	3, 4	left	24 cm	585 g	1	55 kg	15 +/- 5 mm	~ 58 mm	4=Skin colour	slim
1C68=L24-2-P/15N	3, 4	left	24 cm	585 g	2	75 kg	10 +/- 5 mm	~ 64 mm	15=light brown	normal
1C68=L24-2-P/15S	3, 4	left	24 cm	585 g	2	75 kg	15 +/- 5 mm	~ 58 mm	15=light brown	slim
1C68=L24-2-P/4N	3, 4	left	24 cm	585 g	2	75 kg	10 +/- 5 mm	~ 64 mm	4=Skin colour	normal
1C68=L24-2-P/4S	3, 4	left	24 cm	585 g	2	75 kg	15 +/- 5 mm	~ 58 mm	4=Skin colour	slim
1C68=L24-3-P/15N	3, 4	left	24 cm	585 g	3	100 kg	10 +/- 5 mm	~ 64 mm	15=light brown	normal
1C68=L24-3-P/15S	3, 4	left	24 cm	585 g	3	100 kg	15 +/- 5 mm	~ 58 mm	15=light brown	slim
1C68=L24-3-P/4N	3, 4	left	24 cm	585 g	3	100 kg	10 +/- 5 mm	~ 64 mm	4=Skin colour	normal
1C68=L24-3-P/4S	3, 4	left	24 cm	585 g	3	100 kg	15 +/ - 5 mm	~ 58 mm	4=Skin colour	slim
1C68=L25-1-P/15N	3, 4	left	25 cm	585 g	1	55 kg	10 +/- 5 mm	~ 66 mm	15=light brown	normal
1C68=L25-1-P/15S	3, 4	left	25 cm	585 g	1	55 kg	15 +/- 5 mm	~ 63 mm	15=light brown	slim
1C68=L25-1-P/4N	3, 4	left	25 cm	585 g	1	55 kg	10 +/- 5 mm	~ 66 mm	4=Skin colour	normal
1C68=L25-1-P/4S	3, 4	left	25 cm	585 g	1	55 kg	15 +/- 5 mm	~ 63 mm	4=Skin colour	slim
1C68=L25-2-P/15N	3, 4	left	25 cm	585 g	2

Article number

1C68=L22-1-P/15S

1C68=L22-1-P/4S

1C68=L22-2-P/15S

1C68=L22-2-P/4S

1C68=L22-3-P/15S

1C68=L22-3-P/4S

1C68=L23-1-P/15S

1C68=L23-1-P/4S

1C68=L23-2-P/15S

1C68=L23-2-P/4S

1C68=L23-3-P/15S

1C68=L23-3-P/4S

1C68=L24-1-P/15N

1C68=L24-1-P/15S

1C68=L24-1-P/4N

1C68=L24-1-P/4S

1C68=L24-2-P/15N

1C68=L24-2-P/15S

1C68=L24-2-P/4N

1C68=L24-2-P/4S

1C68=L24-3-P/15N

1C68=L24-3-P/15S

1C68=L24-3-P/4N

1C68=L24-3-P/4S

1C68=L25-1-P/15N

1C68=L25-1-P/15S

1C68=L25-1-P/4N

1C68=L25-1-P/4S

1C68=L25-2-P/15N

1C68=L25-2-P/15S

1C68=L25-2-P/4N

1C68=L25-2-P/4S

1C68=L25-3-P/15N

1C68=L25-3-P/15S

1C68=L25-3-P/4N

1C68=L25-3-P/4S

1C68=L25-4-P/15N

1C68=L25-4-P/15S

1C68=L25-4-P/4N

1C68=L25-4-P/4S

1C68=L26-1-P/15N

1C68=L26-1-P/15S

1C68=L26-1-P/4N

1C68=L26-1-P/4S

1C68=L26-2-P/15N

1C68=L26-2-P/15S

1C68=L26-2-P/4N

1C68=L26-2-P/4S

1C68=L26-3-P/15N

1C68=L26-3-P/15S

1C68=L26-3-P/4N

1C68=L26-3-P/4S

1C68=L26-4-P/15N

1C68=L26-4-P/15S

1C68=L26-4-P/4N

1C68=L26-4-P/4S

1C68=L27-2-P/15N

1C68=L27-2-P/15S

1C68=L27-2-P/4N

1C68=L27-2-P/4S

1C68=L27-3-P/15N

1C68=L27-3-P/15S

1C68=L27-3-P/4N

1C68=L27-3-P/4S

1C68=L27-4-P/15N

1C68=L27-4-P/15S

1C68=L27-4-P/4N

1C68=L27-4-P/4S

1C68=L28-2-P/15N

1C68=L28-2-P/4N

1C68=L28-3-P/15N

1C68=L28-3-P/4N

1C68=L28-4-P/15N

1C68=L28-4-P/4N

1C68=L29-2-P/15N

1C68=L29-2-P/4N

1C68=L29-3-P/15N

1C68=L29-3-P/4N

1C68=R22-1-P/15S

1C68=R22-1-P/4S

1C68=R22-2-P/15S

1C68=R22-2-P/4S

1C68=R22-3-P/15S

1C68=R22-3-P/4S

1C68=R23-1-P/15S

1C68=R23-1-P/4S

1C68=R23-2-P/15S

1C68=R23-2-P/4S

1C68=R23-3-P/15S

1C68=R23-3-P/4S

1C68=R24-1-P/15N

1C68=R24-1-P/15S

1C68=R24-1-P/4N

1C68=R24-1-P/4S

1C68=R24-2-P/15N

1C68=R24-2-P/15S

1C68=R24-2-P/4N

1C68=R24-2-P/4S

1C68=R24-3-P/15N

1C68=R24-3-P/15S

1C68=R24-3-P/4N

1C68=R24-3-P/4S

1C68=R25-1-P/15N

1C68=R25-1-P/15S

1C68=R25-1-P/4N

1C68=R25-1-P/4S

1C68=R25-2-P/15N

1C68=R25-2-P/15S

1C68=R25-2-P/4N

1C68=R25-2-P/4S

1C68=R25-3-P/15N

1C68=R25-3-P/15S

1C68=R25-3-P/4N

1C68=R25-3-P/4S

1C68=R25-4-P/15N

1C68=R25-4-P/15S

1C68=R25-4-P/4N

1C68=R25-4-P/4S

1C68=R26-1-P/15N

1C68=R26-1-P/15S

1C68=R26-1-P/4N

1C68=R26-1-P/4S

1C68=R26-2-P/15N

1C68=R26-2-P/15S

1C68=R26-2-P/4N

1C68=R26-2-P/4S

1C68=R26-3-P/15N

1C68=R26-3-P/15S

1C68=R26-3-P/4N

1C68=R26-3-P/4S

1C68=R26-4-P/15N

1C68=R26-4-P/15S

1C68=R26-4-P/4N

1C68=R26-4-P/4S

1C68=R27-2-P/15N

1C68=R27-2-P/15S

1C68=R27-2-P/4N

1C68=R27-2-P/4S

1C68=R27-3-P/15N

1C68=R27-3-P/15S

1C68=R27-3-P/4N

1C68=R27-3-P/4S

1C68=R27-4-P/15N

1C68=R27-4-P/15S

1C68=R27-4-P/4N

1C68=R27-4-P/4S

1C68=R28-2-P/15N

1C68=R28-2-P/4N

1C68=R28-3-P/15N

1C68=R28-3-P/4N

1C68=R28-4-P/15N

1C68=R28-4-P/4N

1C68=R29-2-P/15N

1C68=R29-2-P/4N

1C68=R29-3-P/15N

1C68=R29-3-P/4N

Mobility grade

3, 4

Side

left

right

FAQS

Answers for you

The Triton side flex prosthetic foot with side-to-side flexibility was designed for highly active individuals (mobility grades 3–4) who navigate varied indoor and outdoor environments and place a high value on uncompromised response and control – even when performing high-impact activities. It is suitable for users weighing up to 125 kg. Due to its low height, the Triton side flex is also suitable for users who only have limited build height available for the installation of their prosthetic foot. Both transfemoral and transtibial amputees can benefit from the advantages of this prosthetic foot.
