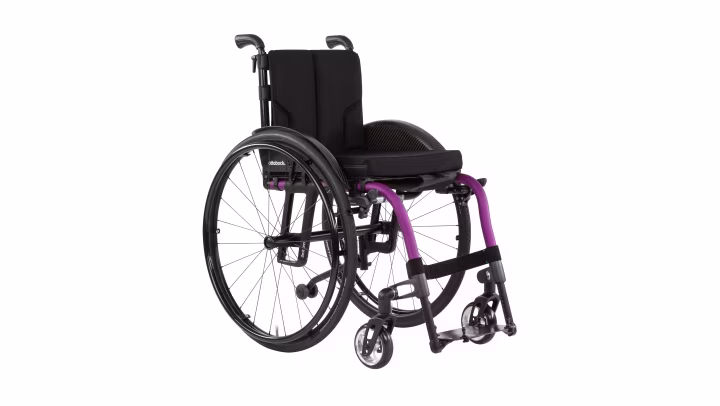

Zenit onn
Lightweigt performance.
Lightweigt performance.
The Zenit onn F and Zenit onn R are available in lightweight aviation specification aluminum or carbon fibre composite. The Zenit onn F models feature the Easy-Go folding system, which combines the flexibility of a folding wheelchair with the look and performance of a rigid frame. The Zenit onn F CLT version has welded-on components while keeping the weight the lowes possible.
The Zenit onn R rigid frame wheelchair is also available in aluminum or carbon composite. The R CLT version provides maximum stability with welded-on components for the lowest possible mass in the entire Zenit onn product family!
Thanks to this well-thought-out design, all Zenit onn models can be precisely customized to individual needs — for maximum stability, efficiency, and driving comfort.
| Max. body weight | 120 kg |
| Activities | Daily use, Rehab |
| User group | women, men, adults, youth, children |
A folding open frame wheelchair with the driving characteristics of a rigid frame wheelchair for active and highly active users – that's what the Zenit onn F is for its user. And, thanks to the uniquely stiff cross brace, it can be folded easily to provide a rather small transportation size.
The lightest foldable open frame wheelchair in the Zenit onn product family, with the driving characteristics of a rigid frame wheelchair for highly active users - that´s the Zenit onn F CLT. CLT stand for Compact Lightweight. Most frame components are welded, providing unparallel durability, frame rigidity and distinct driving experience.
_de?_a=BAMCkGiu0)
A folding open frame wheelchair with the driving characteristics of a rigid frame wheelchair for active and highly active users – that's what the Zenit onn F is for its user. And, thanks to the uniquely stiff cross brace, it can be folded easily to provide a rather small transportation size.
The Zenit onn R CLT is the most lightweight member of the Zenit onn product family! It offers its user an extremely wide range of configuration in terms of dimensions and optional equipment. As a result, it can be configured to near equivalence of a custom-made manual wheelchair, for comparable needs. The driving characteristic of the Zenit onn R CLT can be precisely configured to meet high demands and requirements, and the settings range enables an ideal seating position and posture for its user.
Free up foot space.
Free up foot space allows easy transfers and problem-free self-propulsion.
Product information
| Max. body weight | 120 kg |
| Activities | Daily use, Rehab |
| User group | women, men, adults, youth, children |
| Product type | Manual wheelchairs |
Product Data
| Article number | 480F168=1_AA02_C | 480F168=1_AA03_C | 480F168=1_AA04_C | 480F168=1_AA05_C |
| Seat width | 320 - 460 mm | 320 - 460 mm | 320 - 460 mm | 320 - 460 mm |
| Seat depth | 360 - 500 mm | 360 - 500 mm | 360 - 500 mm | 360 - 500 mm |
| Overall length | 640 - 1,040 mm | 640 - 1,040 mm | 640 - 1,040 mm | 640 - 1,040 mm |
| Overall width | 495 - 710 mm | 495 - 710 mm | 495 - 710 mm | 495 - 710 mm |
| Overall height | 620 - 1,050 mm | 620 - 1,050 mm | 620 - 1,050 mm | 620 - 1,050 mm |
| Back height | 250 - 500 mm | 250 - 500 mm | 250 - 500 mm | 250 - 500 mm |
| Lower leg length | 280 - 510 mm | 280 - 510 mm | 280 - 510 mm | 280 - 510 mm |
| Max. load | 120 kg | 100 kg | 120 kg | 100 kg |
| Total weight | 8,4 kg | 7,8 kg | 7,3 kg | 6 kg |
| Front frame angle | 75 / 85 ° | 75 / 85 ° | 75 / 85 ° | 75 / 85 ° |
Answers for you
Compatible accessories
?_a=BAMCkGiu0)
Find similar products
This is a medical device. Use it according to the instructions for use.
