B4
Are you looking for an entry-level electric wheelchair? Then the Juvo B4 is the right choice. Thanks to its compact design and various adjustment options, the electric wheelchair effortlessly handles the challenges of daily life. The rear-wheel drive is ideal for navigating tight spaces.
Are you looking for an entry-level electric wheelchair? Then the Juvo B4 is the right choice. Thanks to its compact design and various adjustment options, the electric wheelchair effortlessly handles the challenges of daily life. The rear-wheel drive is ideal for navigating tight spaces.
| Max. body weight | 140 kg |
| Activities | Rehab |
| User group | youth, adults, mature adults |
The compact dimensions of the Juvo B4, with a width of only 59 cm, allow for passing through narrow doors and maneuvering in tight passages. The specific combinations of caster wheels and drive wheels increase ground clearance for outdoor use. If you intend to use your Juvo B4 exclusively indoors, a model with small wheel sizes can be chosen.

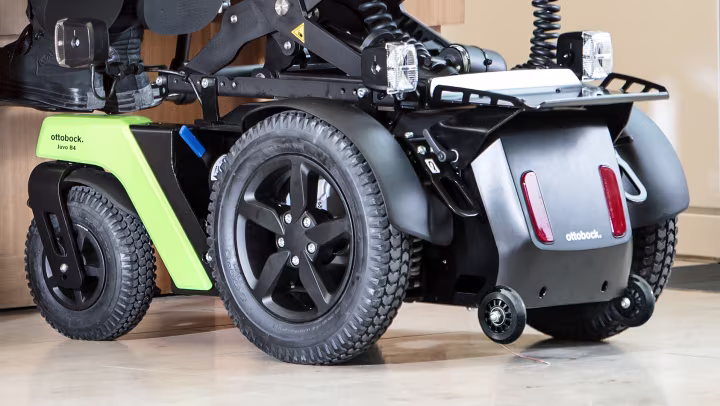

The drive unit is made of steel, making it particularly robust and requiring very little maintenance. The integrated anti-tip rollers ensure control and safety on uneven terrain.
The continuously sprung drive wheel suspension compensates for uneven terrain and can be further optimized with an additional front suspension. Different battery sizes provide the range you need for your daily independence.
Through our collaboration with physiotherapists and occupational therapists, we have developed an optimally shaped seat that can be ordered in a variety of sizes and contours. The front of the seat consists of an anatomically shaped seating surface that provides high lateral stability. The cushion, adapting to the shape of the thigh, helps relieve the hip joint. An integrated "ramp" also supports the optimal positioning of the pelvis. Together with the backrest padding, it helps actively stabilize the pelvis.

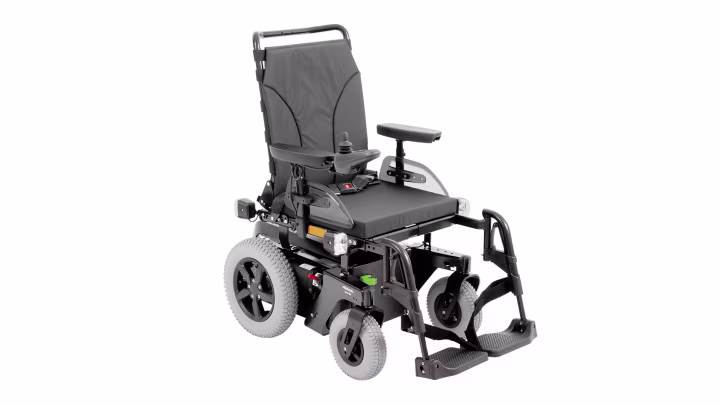

Our basic seating solution allows adjusting the seat width via the armrests. The transparent side panels also provide support while sitting and act as a splash guard. The soft armrest pads are adjustable in height and depth. A seat cushion with a robust nylon cover is included in the standard scope. Alternatively, seat cushions like the Terra can also be installed on the solid seat plate. The backrest can be individually adapted to the user using straps. The backrest can be manually adjusted in four stages and optionally operated electrically.
The adjustable VAS (Variable Adjustable Seat), which grows with the user, can be precisely adjusted to your body size by the specialist dealer. It comes standard with an adjustable, padded backrest and a flat seat cushion. The Ergo Joint backrest angle adjustment is nearly free of uncomfortable shear forces. The contoured seat frame has lateral guides and mounts for optional positioning elements such as thigh lateral supports. Optionally available are also height-adjustable and swing-away armrests, as well as a wide range of leg supports.
Kristina simply tackles everyday challenges.
Consulting for barrier-free construction projects is Kristina's greatest passion. Her goal is to create an inclusive and barrier-free environment where everyone can fully participate in social life. With her enthusiasm and knowledge, she aims to raise awareness of the needs of people with and without mobility restrictions and drive positive change.
Kristina is an inspiration to many who accompany her on her journey. Due to a progressive neuromuscular condition, Kristina uses her Juvo B4 daily to stay mobile. Equipped with her strong will and her Juvo, Kristina simply tackles the challenges of everyday life. She also enjoys traveling to explore new places, meet people, and experience new impressions: "I explore the city at my own pace, on my own terms, in my own time."
Additional Option - Electronic Seat Adjustment
Optimal seat adjustments play a crucial role in providing you with maximum independence and comfort in everyday life. A seat tilt adjustment of up to 45° ensures the best possible pressure redistribution and allows you to change positions at any time. The adjustment of the backrest angle can be essential for optimal body posture and seat balance. Electric seat tilt adjustment, combined with electric backrest angle and knee angle adjustment, promotes blood circulation and provides pressure relief.
Product information
| Max. body weight | 140 kg |
| Activities | Rehab |
| User group | youth, adults, mature adults |
| Colour | White, Black, Orange, Green, Blue |
| Speed(s) | 6 km/h, 7,2 km/h, 10 km/h |
| Scope of application | Mobility |
| Product type | Power wheelchairs |
Product Data
| Article number | 490E75=1_C |
| Construction | Rear-wheel drive |
| Maximum permissible inclination | 7° (12%) nach ISO 7176-2 |
| Speed(s) | Germany |
| Top speed | 10 km/h |
| Width | 585 / 595 mm |
| Overall height | 980 - 1080 mm ( Standardsitz) / 850 - 1110 mm (VAS) |
| Overall width | 585 / 595 mm |
| Overall length | 980 - 1080 mm ( Standardsitz) / 850 - 1110 mm (VAS) |
| Seat width | 340 - 560 mm |
| Seat height | 380 – 500 mm |
| Seat depth | 340 - 580 mm |
| Seat inclination | -3° / 0° / 3° / 6°/ 9° (Standardsitz) / 0° / 3° / 6° (VAS) |
| Back angle | -9° bis 30°(manuell) ; 0° bis 30° (elektrisch) |
| Seat tilt | 20°/45° (power) |
| Arm support height | 200–400 mm (standard seat) / 200–360 mm (VAS seat) |
| Lower leg length | 150 - 470 mm |
| Control device | VR2 (70 A / 90 A), R-net (90 A) |
| Battery capacity | 56Ah (C5) / 60,4 Ah (C20) AGM | 62 Ah (C5) / 79,6 Ah (C20) GEL | 63Ah (C5) / 74 Ah (C20) GEL |
| Max. charging time | max. 12 |
| Max. driving distance range (according to ISO 7176-4) | Approx. 35 km with 56 Ah (C5) AGM batteries/approx. 45 km with 62 Ah (C5) gel batteries/ 63 Ah (C5) gel batteries |
| Obstacle negotiation capability | 50 mm |
| Climbing ability | 7° / 12% |
| Turning radius | 800 mm |
| Type of battery | AGM or GEL |
| Output current | 2 x 12 V |
| Lighting | LED headlight with direction indicator, category B, according to German Motor Vehicle Safety Standards (StVZO) LED footpath lighting with activation sensor, category B |
| Operating voltage | 24V |
| Battery charger | 8A, 10A, 12A |
| Fuse | 80 A (VR2); 100 A (R-Net) |
| Weight when empty | ≥ 93,5 kg |
| Total weight | 290 kg |
| Tyre size | 12.5"; 14" (drive wheel) / 8"; 9"; 10" (caster wheel) |
| IP protection rating (according to DIN EN 60529) | IP44 |
| Actuating force | 1.6 N (joystick on control panel) |
| Braking distance (according to DIN EN 12184:2014) | 6 km/h: 1,000 mm; for 7.2 km/h: 1,200 mm; for 10 km/h: 2,100 mm mm |
| Motor power | 300 Watt / 350 Watt |
| Arm support length | 280 mm |
| Back height | 370 / 420 / 470 mm Standardsitz (Junior); 450 / 500 / 550 mm (Standardsitz Klein, Groß, XL); 450 / 510 / 530 / 550 mm (VAS) |
| Ground clearance | 57 / 75 / 95 mm |
| Tyre type | Luft, pannengeschützt / PU, pannensicher |
| Corrosion protection | Cathodic dip coating / powder coating |
| Fixing straps | Beckengurt mit Gurtschloss |
| Operating temperature | -15 °C to +40 °C |
| Storage temperature | -15 °C bis +40 °C |
| Transport temperature | -15 °C to +40 °C |
| Back angle adjustment | manuell oder elektrisch |
