Wingus power wheelchair
Easy handling, ease of service and excellent sitting comfort make the Wingus an ideal entry-level power wheelchair. It combines time-tested functionality with an appealing, minimalist design and reliability made in Germany.
Easy handling, ease of service and excellent sitting comfort make the Wingus an ideal entry-level power wheelchair. It combines time-tested functionality with an appealing, minimalist design and reliability made in Germany.
| Max. body weight | 120 kg |
| Activities | Rehab |
| User group | women, men, adults, elderly, youths |

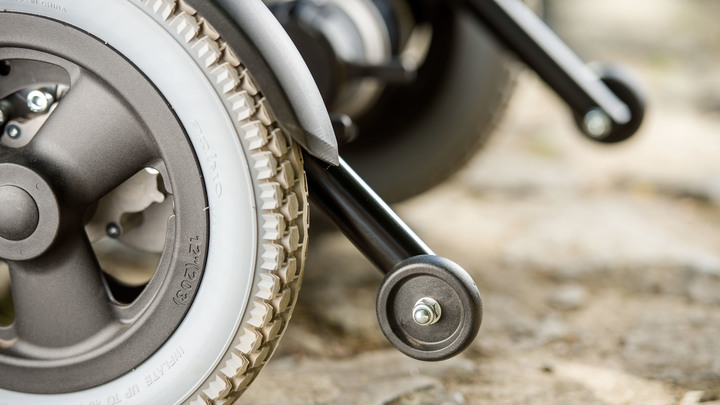

The anti-tipper integrated into the frame offers added safety in everyday life.

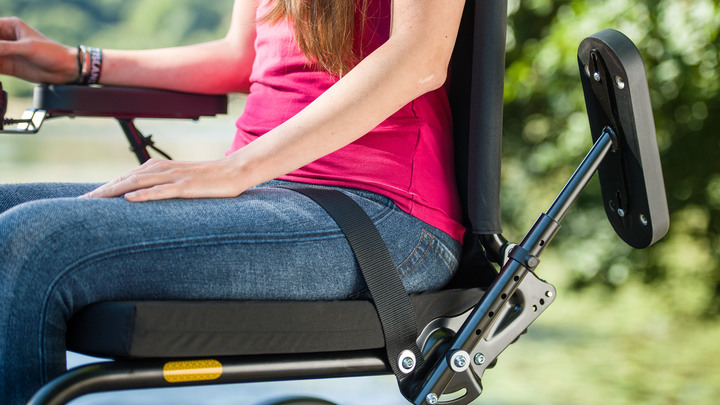

The swing-away arm supports allow the user to drive up close to objects and make side transfers easier.

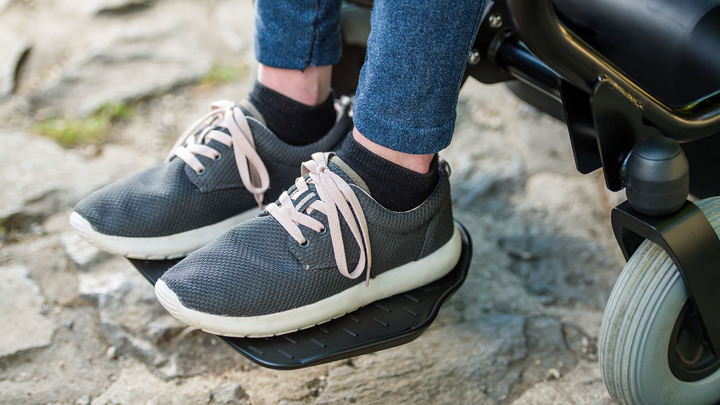

The Wingus has a height-adjustable leg support with a flip-up, angle-adjustable foot plate.

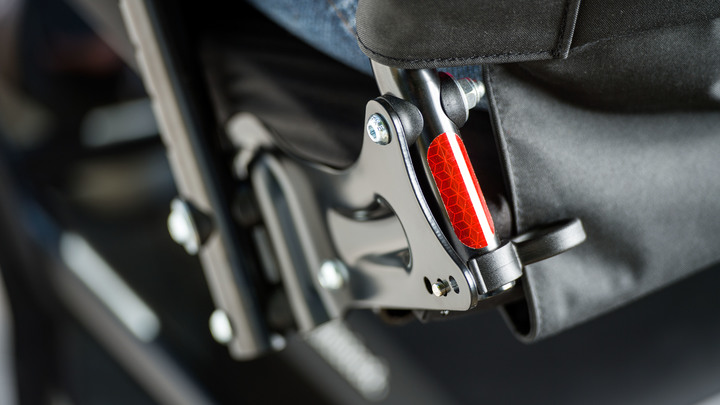

The Wingus’ clear focus on functionality reveals itself in the back support as well. For example, the back support angle is easy to set to 0°, 10° or 20°.

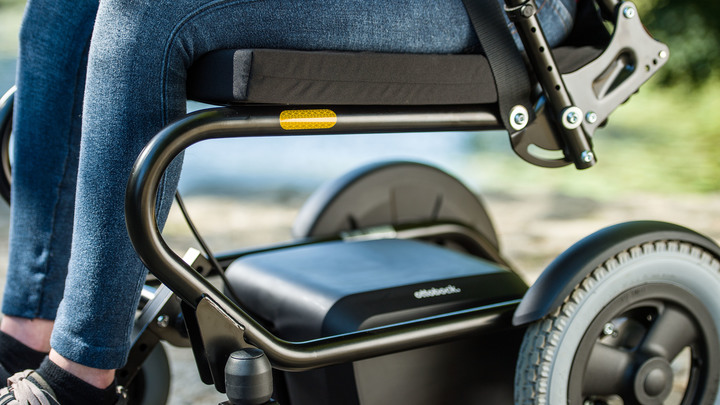

The Wingus offers users an extremely comfortable ride thanks to its innovative cantilever frame. This makes it comfortable to drive, even on rough terrain.
產品資訊
| Max. body weight | 120 kg |
| Activities | Rehab |
| User group | women, men, adults, elderly, youths |
| Color | Black |
| Speed(s) | 6 km/h |
| Number of power seat adjustments | keine elektrischen Sitzverstellungen möglich |
| Max. load | 120 kg |
| Scope of application | Mobility |
| Product type | Power wheelchairs |
產品文件
| Article number | 490E163=00000 | 490E163=00012 | 490E163=00042 |
| Description | Wingus power wheelchair | Wingus power wheelchair | Wingus power wheelchair |
| Seat width | 400 - 460 mm | 400 - 460 mm | 400 - 460 mm |
| Seat height | 500 mm | 500 mm | 500 mm |
| Seat depth | 380 - 480 mm | 380 - 480 mm | 380 - 480 mm |
| Overall length | 1050 mm | 1050 mm | 1050 mm |
| Overall width | 585 mm | 585 mm | 585 mm mm |
| Back height | 550 mm | 550 mm | 550 mm |
| Back angle | 0° / 10° / 20° | 0° / 10° / 20° | 0° / 10° / 20° |
| Arm support height | 200 – 300 mm | 200 – 300 mm | 200 – 300 mm |
| Seat inclination | 4° | 4° | 4° |
| Lower leg length | 380 - 480 mm | 380 - 480 mm | 380 - 480 mm |
| Battery capacity | 30 Ah (C5) /36,5 Ah (C20) AGM I 29,75 Ah (C5) / 35 Ah (C20) AGM I 27 Ah (C5) / 35 Ah (C20) GEL I 28,75 Ah (C5) / 35 Ah (C20) GEL | 27 Ah (C5) / 35 Ah (C20) gel | 30 Ah (C5) /36.5 Ah (C20) AGM |
| Max. driving distance range (according to ISO 7176-4) | 25 km | 25 km | 25 km |
| Motor power | 160 Watt / 200 Watt | 160 watts | 160 watts |
| Obstacle negotiation capability | 50 mm | 50 mm | 50 mm |
| Climbing ability | 7° (12%) according to ISO 7176-2 | 7° (12%) according to ISO 7176-2 | 7° (12%) according to ISO 7176-2 |
| Turning radius | 740 mm | 740 mm | 740 mm |
| Max. load | 120 kg | 120 kg | 120 kg |
