Ottobock
1C20 - Foot prosthetics

ProSymes

The intelligent prosthetic foot for Syme amputations

After an amputation, patients want a prosthetic fitting that guarantees the perfect adjustment of the foot position in addition to high functionality. For patients with an amputation according to the method of the Scottish surgeon James Syme, we developed the 1C20 ProSymes prosthetic foot with a unique structure and application technology. Its special adjustment concept permits correction of the foot position during trial fitting and after finishing the prosthesis. The 1C20 ProSymes is suitable for Symes amputees who need a reliable and dynamic prosthetic foot with excellent heel spring.

After an amputation, patients want a prosthetic fitting that guarantees the perfect adjustment of the foot position in addition to high functionality. For patients with an amputation according to the method of the Scottish surgeon James Syme, we developed the 1C20 ProSymes prosthetic foot with a unique structure and application technology. Its special adjustment concept permits correction of the foot position during trial fitting and after finishing the prosthesis. The 1C20 ProSymes is suitable for Symes amputees who need a reliable and dynamic prosthetic foot with excellent heel spring.

Your orthopaedics specialist is happy to advise you regarding a visually appealing, inconspicuous cosmetic foot cover.

Mobility grade2, 3
Max. body weight125 kg
Amputation levelPartial foot amputation
All specifications
Enquire Now
Specifications

Product information

Mobility grade2, 3
Max. body weight125 kg
Amputation levelPartial foot amputation
MaterialCarbon

Product Data

Article numberMobility gradeHeel heightSideSizeStiffnessMax. body weight
1C20=N25-1-A/02, 310+/-5 mmboth sides25 cm1100 kg
1C20=N26-3-A/02, 310+/-5 mmboth sides26 cm3125 kg
1C20=N26-2-A/02, 310+/-5 mmboth sides26 cm2125 kg
1C20=N27-3-A/02, 310+/-5 mmboth sides27 cm3125 kg
1C20=N27-2-A/02, 310+/-5 mmboth sides27 cm2125 kg
1C20=N28-2-A/02, 310+/-5 mmboth sides28 cm2125 kg
1C20=N28-3-A/02, 310+/-5 mmboth sides28 cm3125 kg
Article number1C20=L25-1-A/41C20=L26-2-A/41C20=L27-2-A/41C20=L27-3-A/41C20=L28-2-A/41C20=L28-3-A/41C20=R26-2-A/41C20=R27-2-A/41C20=R27-3-A/41C20=R28-3-A/4
Mobility grade2, 32, 32, 32, 32, 32, 32, 32, 32, 32, 3
Heel height10+/-5 mm10+/-5 mm10+/-5 mm10+/-5 mm10+/-5 mm10+/-5 mm10+/-5 mm10+/-5 mm10+/-5 mm10+/-5 mm
Sideleftleftleftleftleftleftrightrightrightright
Size25 cm26 cm27 cm27 cm28 cm28 cm26 cm27 cm27 cm28 cm
Build height (with spacer plate)520 mm520 mm520 mm520 mm520 mm520 mm520 mm520 mm520 mm520 mm
Build height (without spacer plate)43 mm43 mm43 mm43 mm43 mm43 mm43 mm43 mm43 mm43 mm
Weight (with lamination anchor, without footshell)~465 g~475 g~490 g~490 g~495 g~495 g~475 g~490 g~490 g~495 g
Stiffness1223232233
Max. body weight100 kg125 kg125 kg125 kg125 kg125 kg125 kg125 kg125 kg125 kg
Downloads

Documents

Related products

Find similar products

Foot prosthetics-1E57-65371

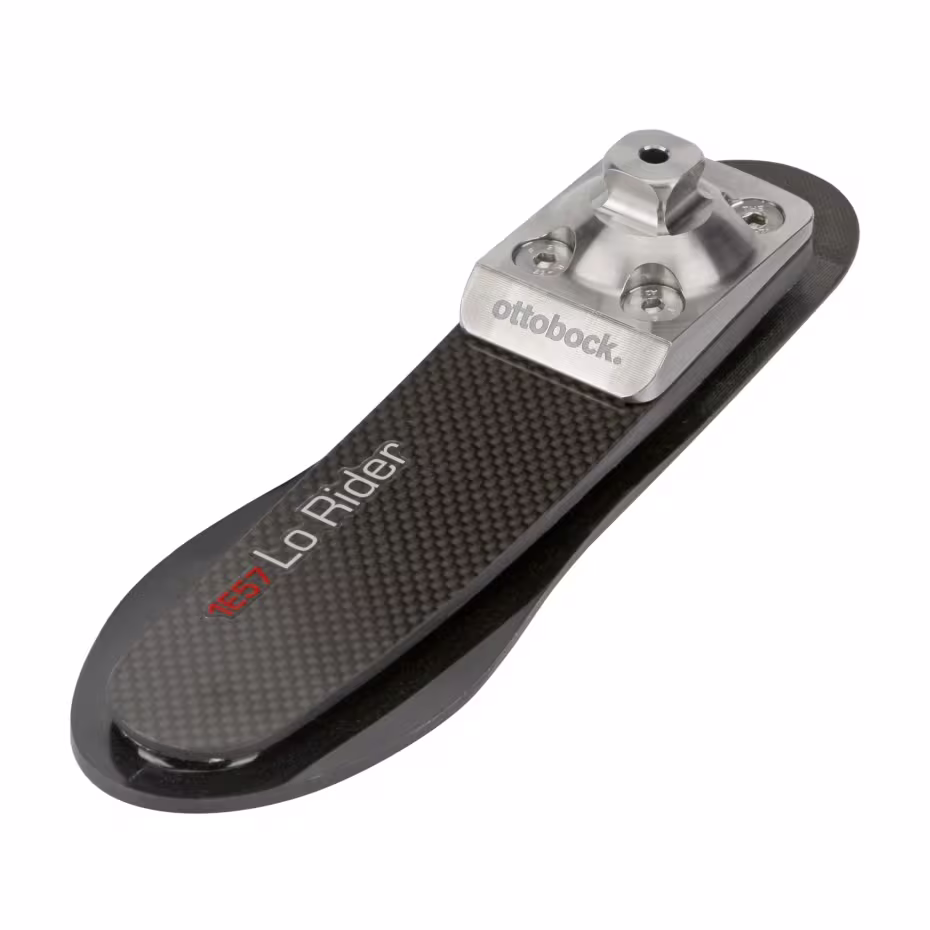

1E57Foot prosthetics
