17KF110 - Knee-Ankle-Foot orthotics
Nexgear free knee
Smooth-running, free motion system orthotic knee joint
The 17KF110 is a free motion orthotic knee joint for bilateral use. It is remarkably easy to handle for processing and maintenance. The knee joint can be processed using lamination and prepreg techniques as well as the thermoplastic technique or as a bar-clamp device. Sustainable, reusable steel dummies are available.
The 17KF110 is a free motion orthotic knee joint for bilateral use. It is remarkably easy to handle for processing and maintenance. The knee joint can be processed using lamination and prepreg techniques as well as the thermoplastic technique or as a bar-clamp device. Sustainable, reusable steel dummies are available.
| Indications | Neurological disorders |
| User group | adults, youth, children |
| Applications | Custom Orthotics |
功能原理
Nexgear free knee – all the advantages at a glance
- The 17KF110 Nexgear free knee is remarkably easy to handle for processing and maintenance.
- The joint is low-noise. At the end stop in the terminal stance phase this is achieved thanks to the integrated damper.
- The joint has a ball bearing and runs smoothly. It has remarkably low flexion resistance.
- A sustainable dummy concept with reusable steel dummies creates less waste.
技術規格
產品資訊
| Indications | Neurological disorders |
| User group | adults, youth, children |
| Applications | Custom Orthotics |
產品文件
| Article number | System width | Max. body weight | Length from joint centre upper | Length from joint centre lower | Posterior offset | Quantity unit |
|---|---|---|---|---|---|---|
| 17KF110=*-10-*-* | 10 mm | 15 kg | ~ 31 mm | ~ 32 mm | 5 mm | Piece |
| 17KF110=*-12-*-* | 12 mm | 20 kg | ~ 32 mm | ~ 33 mm | 6 mm | Piece |
| 17KF110=*-14-*-* | 14 mm | 50 kg | ~ 34 mm | ~ 35 mm | 7 mm | Piece |
| 17KF110=*-16-*-* | 16 mm | 85 kg | ~ 38 mm | ~ 39 mm | 8 mm | Piece |
| 17KF110=*-20-*-* | 20 mm | 110 kg | ~ 41 mm | ~ 42 mm | 10 mm | Piece |
下載
文件
所用產品
查找類似產品

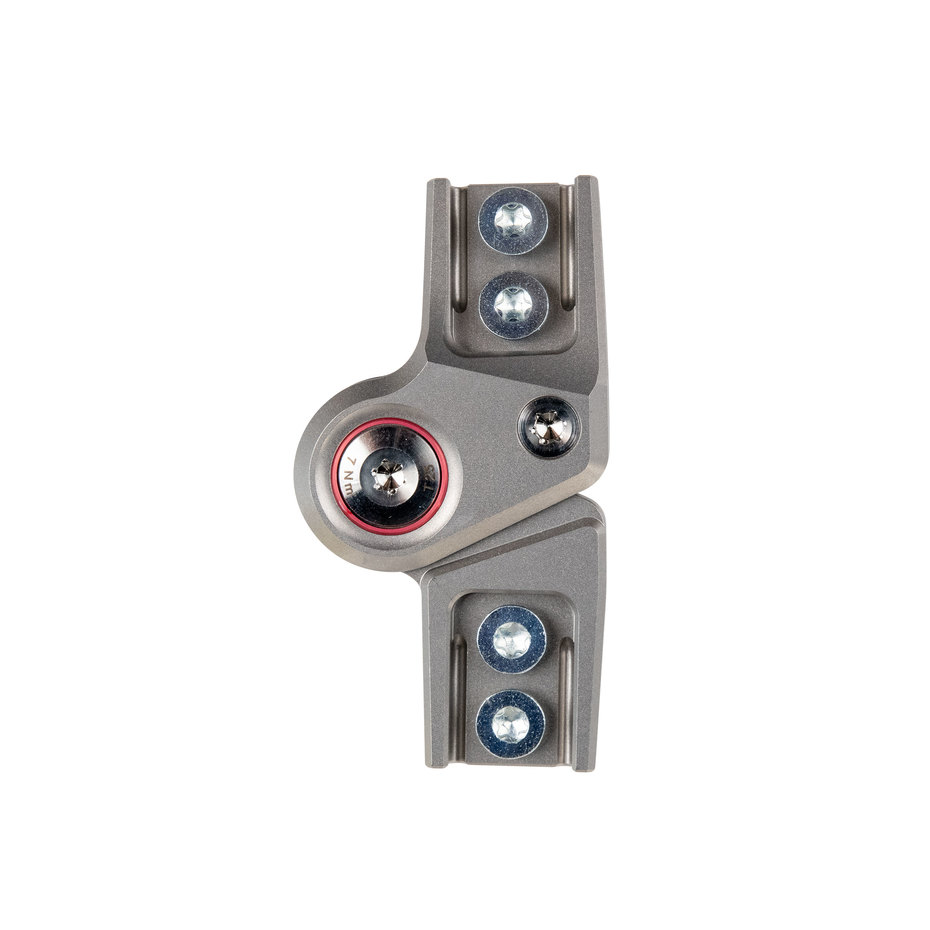

17KF210Knee-Ankle-Foot orthotics
