Planning and Equipping

Machinery

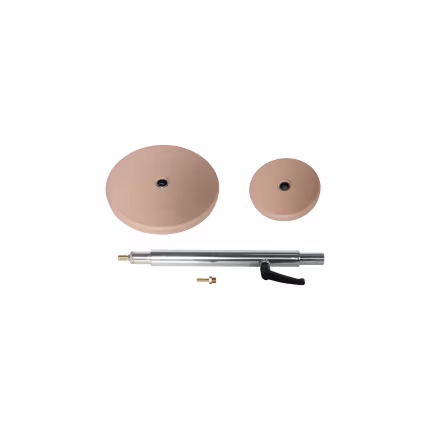

The Pedilan vacuum forming plate surface prevents the plastic from sticking to the vacuum forming plate. The vacuum tube is also equipped with a quick-change system for exchanging the vacuum forming plate. This saves storage space, and the vacuum tube can remain clamped in place at all times as well.

Other

The sprinkle can is used to safely and efficiently moisten cotton cloths and sponges with acetone, isopropyl alcohol and other liquids used in your workshop as cleaning agents.
With the sprinkle can, cleaning fluids can be applied in controlled quantities. This saves you money and helps protect the environment by using cleaning agents efficiently. Key feature: thanks to the design, unused liquid automatically flows from the wetting plate back into the container.

Laser Technology and alignment apparatus

Devices with correct static alignment have a positive effect on users’ posture and mobility: Malpositions are minimised, the body is relieved and users find it easier to maintain their balance.
The 3D L.A.S.A.R. Posture supports technicians in providing optimal prosthetic and orthotic alignments as well as in checking body posture. Our latest new developments for this proven product, which is highly valued in everyday work thanks to its numerous advantages, make working with the 3D L.A.S.A.R. Posture even easier and more comfortable. We placed particular focus on simplifying the documentation process as well as expanding the measurement function.
With the new 3D L.A.S.A.R. Posture, cameras take a live recording of the patient standing on the measuring plate and transmit the image to a tablet PC. The measured forces are represented as lines on the tablet’s display, which are positioned with millimetre accuracy over the patient’s image.

Safety equipment

With the new Ottobock hygiene station, you help protect yourself and others from infectious diseases.
The station contains everything necessary for disinfecting the hands and for cleaning and disinfecting orthopaedic devices.
When developing it, special emphasis was placed on interrupting the chain of transmission. The disinfectant and soap dispensers and the tap can be operated with the forearm. In addition, all surfaces are stainless steel so they can be easily cleaned and disinfected.

The best way to prevent transmission is avoiding direct face-to-face contact. But this isn’t possible in many cases. This is where the mobile protective screen is the perfect solution. The screen is simply mounted on the counter, thereby considerably reducing the direct transmission route. The protective screen is made of high-quality, transparent plastic.

Manufacturing epitheses and prostheses from high-viscosity silicone requires highly functional rollers that simplify your everyday work.
High-viscosity silicone consists of two components that are first mixed together and then rolled out into sheets. The next step is the custom tinting to match the patient’s skin colour.
Our new silicone roller features all the functions that make your work easier while complying with safety standards.
The silicone roller is easy to operate using the foot pedal and touchscreen control. Turning speed and roller gap are continuously adjustable. The highly polished rollers ensure that the silicone does not stick. Furthermore, you can always work safely and have the best possible protection against accidents. The hazard zone is optimally secured by a light barrier and two-hand operation.

This vacuum pump offers everything you’d expect from a cutting-edge vacuum pump: It’s durable, powerful, reliable, quiet, energy efficient and boasts a modern design.
At the same time, the 755E71 Vac M12 vacuum pump has a broad range of applications. The all-rounder has a suction capacity of 12 m³/h and can be used for both laminating and vacuum-forming tasks. It can be used either as a central supply point for a number of workstations or as a mobile solution for a single workstation.
The vacuum pump’s full potential can ultimately be put to best use in combination with the Ottobock vacuum-forming and lamination workstations. Matching it with a vacuum tank and pressure regulators puts its entire range of benefits at your disposal.
The vacuum pump is always the right choice for completing any job in the orthopaedic workshop with maximum precision.

Ottobock&#039;s sets for drying plaster with compressed air help you save valuable time when drying plaster models. This technique involves a 5-m-long porous hose and a compressed air hose with a ball valve, quick couplings and five heat-resistant adapters. The hose is cut to the appropriate length to fit the plaster model and embedded in the plaster model with the compressed air adapter.
When compressed air flows into the hose via the ball valve, the porous structure of the hose distributes the compressed air evenly in the plaster. This lets excess water flow out of the plaster in a controlled manner without causing cracks in the plaster.
This process can significantly reduce the time required for drying a plaster model. As the components are heat-resistant to 130 °C, the plaster model can later be used in the Ottobock plaster drying oven or Ottobock convection and prepreg ovens for further drying and for processing carbon and prepreg materials.

Ottobock’s compressed air sets help you save valuable time when drying plaster models. This technique involves a 5-m-long porous hose and a compressed air hose with a ball valve, quick couplings and five heat-resistant adapters. The hose is cut to the appropriate length to fit the plaster model and embedded in the plaster model with the compressed air adapter.
When compressed air flows into the hose via the ball valve, the porous structure of the hose distributes the compressed air evenly in the plaster. This lets excess water flow out of the plaster in a controlled manner without causing cracks in the plaster.
This procedure can significantly reduce the time required for drying a plaster model. The components are heat-resistant to 130 °C, which means the plaster model can later be used in the Ottobock plaster drying oven or Ottobock convection and prepreg ovens for further drying and for processing carbon and prepreg materials.

Workshop equipment

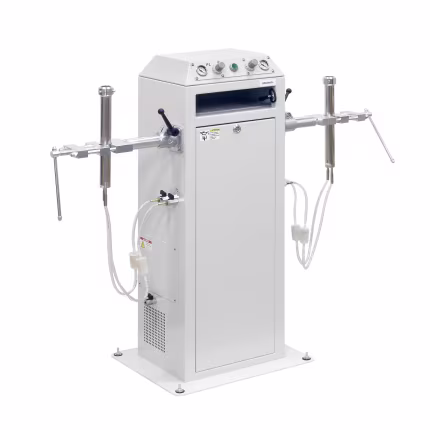

Compact, functional and convenient – with a footprint of less than 2 m², the lamination workstation is especially suited to small workshops.
You’re just two steps away from the perfect result. The full power of the vacuum pump is available to you at the press of a button, and the lamination process can begin as soon as you open the shut-off valves.
The workstation is also equipped with an adjustable vacuum system and pressure gauge on both sides to ensure precise results. The vacuum can be generated from above or below to match your preferences and way of working, as the high-precision clamping devices can be extended or retracted as well as rotated by 360°.

The laminating island features a compact, well-conceived design. It has four fully equipped workstations with two vacuum connections each (one with variable vacuum), an Orthofix clamping device and an optional casting assist – while taking up minimal space.
The required roll material can be stored directly at the workstation for efficient laminating work. The mobile material cart with an integrated cutting surface is an additional aid. It also ensures materials and tools are always close to hand.
Workers’ health is also protected. Slots integrated in the laminating island extract vapours efficiently. A flexibly adjustable suction arm (optional) can also be attached.

The plaster drying oven is unlike any other in the world. It can dry plaster models faster and save more energy in the process by using the principle of condensation. As a result, orthopaedic workshops can substantially reduce the costs incurred during the fabrication of orthopaedic components such as prosthetic sockets. At the same time, it features high-quality workmanship, a functional design and more convenience.
The drying time is reduced by almost half! A comparative test has shown that the plaster drying oven takes 13 hours to dry test plaster models. By contrast, the convection oven requires a drying time of 24 hours. The test was carried out on six plaster models made of alabaster modelling plaster with a weight of 4 kg each and a plaster-to-water mixing ratio of 1:1.5.
The new Ottobock plaster drying oven is like no other in the world. It can dry plaster models faster and more energy-efficiently using the principle of condensation. As a result, orthopaedic workshops can substantially reduce the costs incurred during the fabrication of orthopaedic components such as prosthetic sockets. At the same time it features high-quality workmanship, functional design and more convenience.
Success through a shorter drying time
The drying time is reduced by almost half! A comparative test has shown that the new plaster drying oven takes only 13 hours to dry test plaster models. By contrast, the infrared convection oven requires a drying time of 24 hours for the same quantity and the same material.*
Positive feedback from practitioners
&#34;The new oven dries much faster,&#34; says Gerben Dokter, workshop manager of the orthopaedic company Gardeslen. &#34;We can have our plaster models dried in just one night – every night. Our weekly planning is now considerably more flexible and we save time.&#34;
*The comparative test was carried out on six plaster models made of alabaster modelling plaster with a weight of 4 kg each and a plaster-to-water mixing ratio of 1:1.5.
