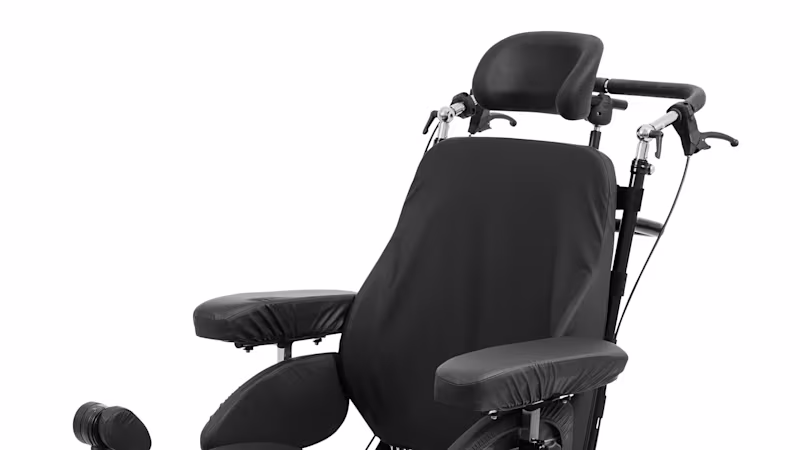

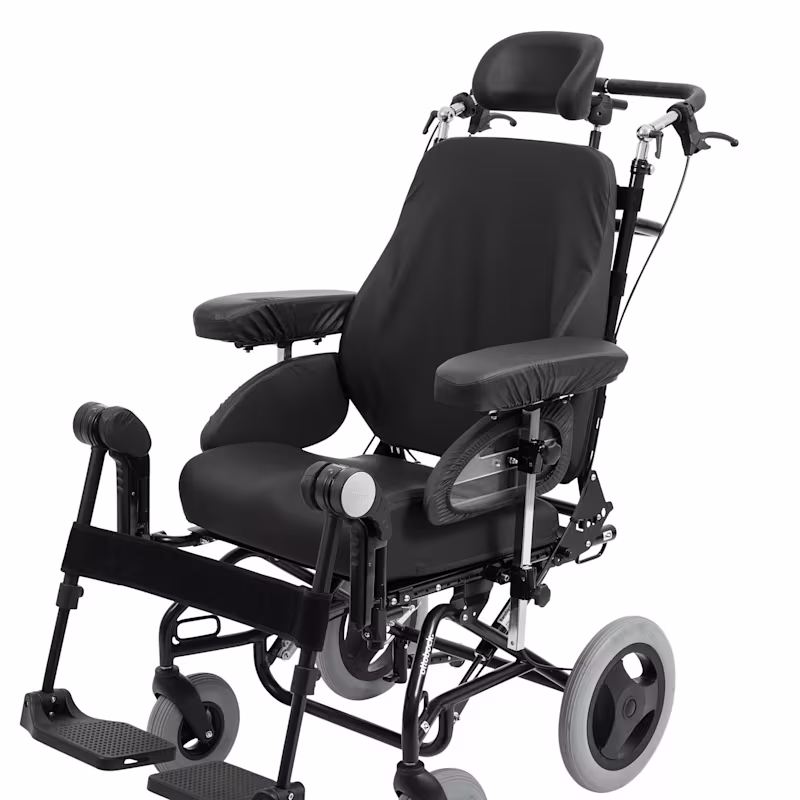

The Discovery is one of the UK's most popular wheelbases due to it's stability and adaptability. Even under high weight bearing load, the Discovery is easy to handle because the rotation point of the seat tilt is placed close to the front of the wheelbase, and as a result, your seating system can be easily tilted up to 35° using the gas compression springs. The narrow width of the Discovery aids it's manoeuvrability.

Different seating systems can be used with the Discovery wheelbase and the entire back can be adjusted to varying shells, the angle of the back rest which can be changed with the ratchet mechanism. In addition various adapters and footrest designs can be incorporated making the Discovery flexible to your needs.



Benefits at a Glance

Benefits at a Glance

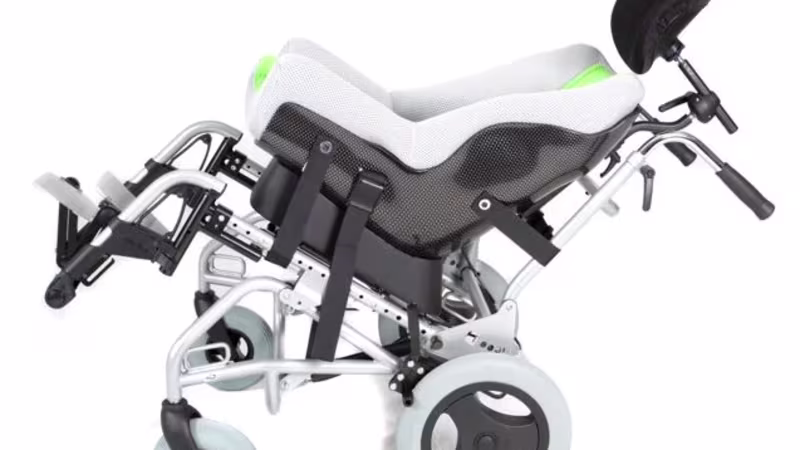

35° Seat Tilt

Allows for pressure relief and ensures comfort throughout the day and can be combined with an Ottobock Custom Seating solution to further aid your needs and requirements.

Seat Tilt
Seat Tilt
Technical Data

Technical Data

Max load capacity

110kg

Frame width (outer edge of seat tubes)

36/40/45/50cm

Seat tube height (with 0° tilt)

47cm

Wheel diameter front/rear

8"/12"

Push handle height adjustment

by approx. 15cm

Tilt in space

0° to 35°

Back angle

90° to 120°

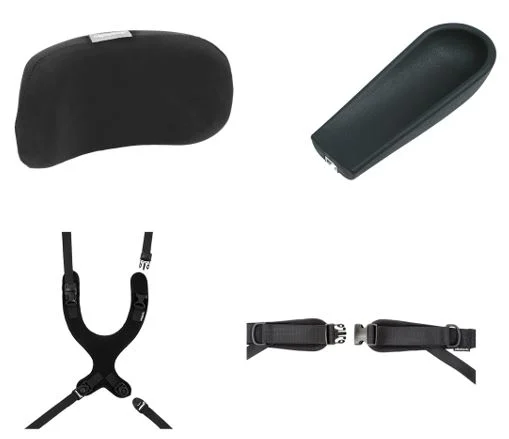

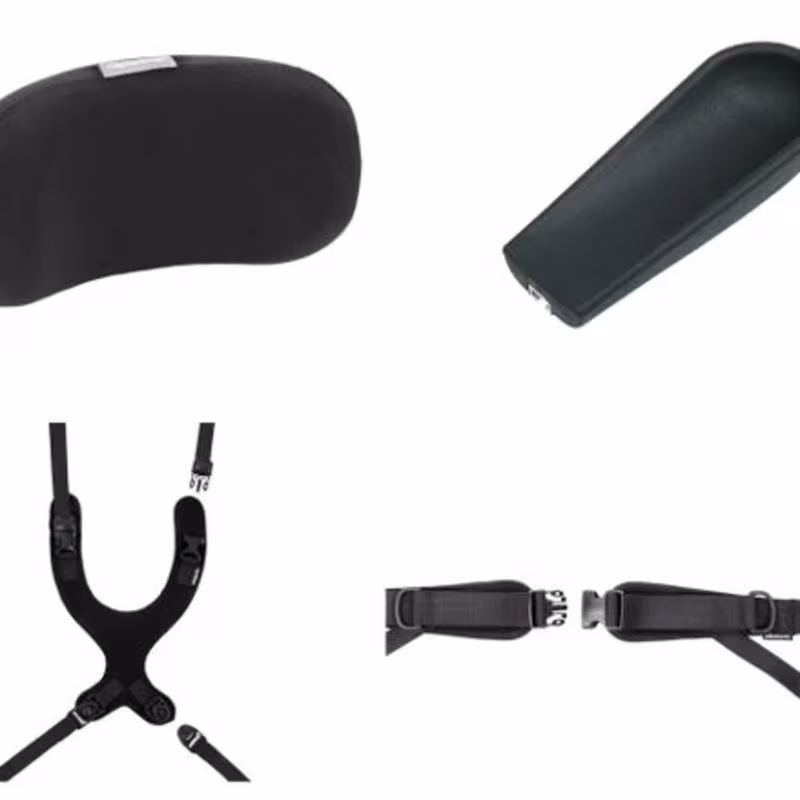

Optional Extras

Optional Extras

Height-adjustable push bar

Back angle adjustment

Armrest, height-adjustable and depth or angle-adjustable

Seat plate

Various footrest models

Anti-tipper

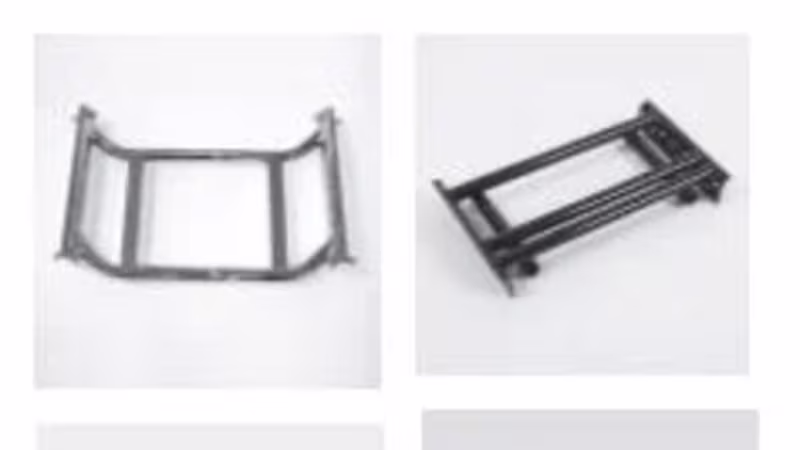

Custom Seating

Discovery Wheelbase and Ottobock Custom Seating

Should you require a custom seating unit, our team of highly skilled Clinical Seating Specialists are able to mould a custom seating unit optimising your comfort and support. This service is available either through a NHS Wheelchair Service or Private Clinics. All of our custom seating units are manufactured at our site in Leeds where our skilled engineers work alongside our Clinical Seating Specialists.
