Caleo 3D
TPE (Thermoplastic Elastomer) liner with firmer gel for more active users.
TPE (Thermoplastic Elastomer) liner with firmer gel for more active users.
Reembolso
- Codificación HCPCS Sugerida
Cushion Liner: L5679; Locking Liner: L5673
Visión general

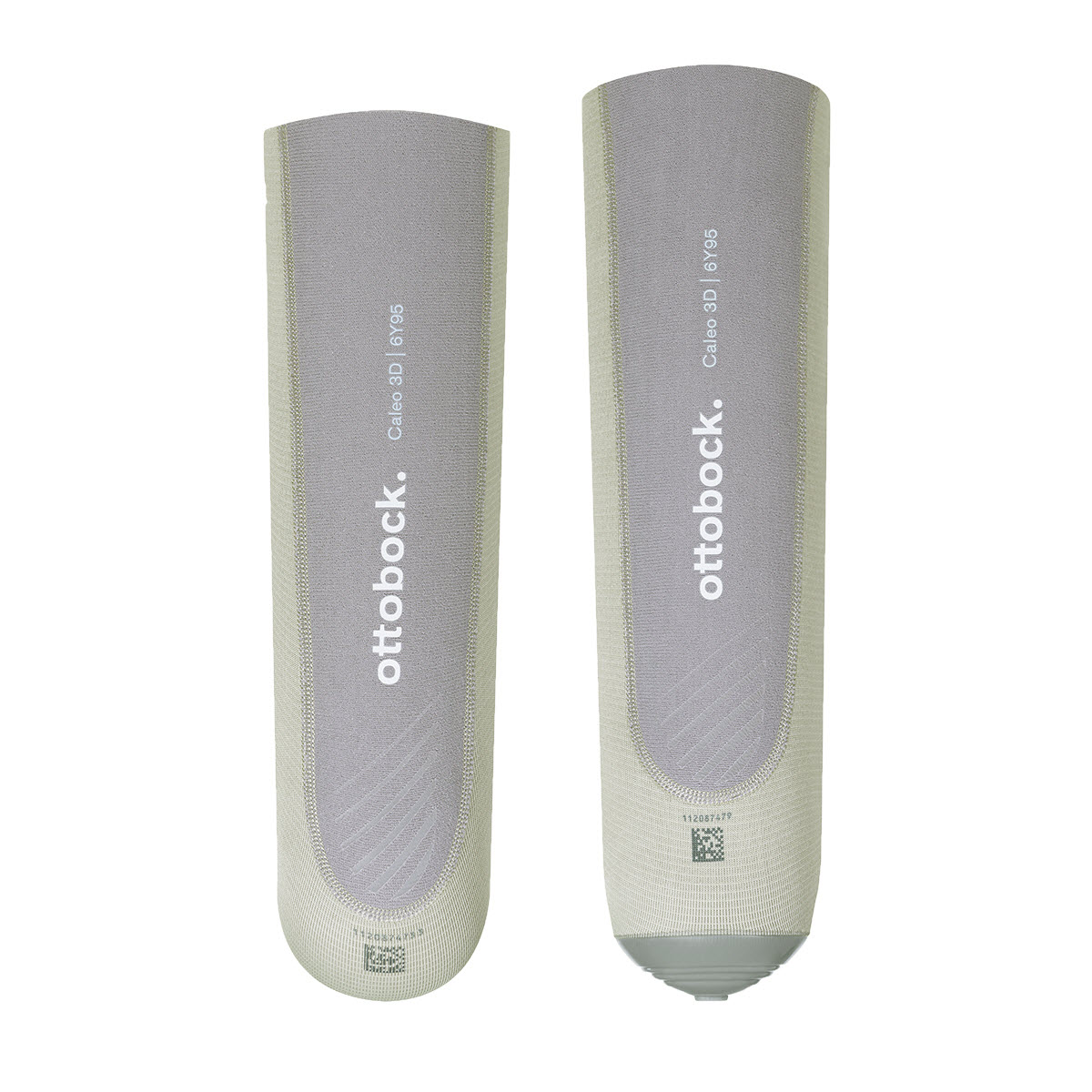

6Y95 Caleo3D copolymer (TPE) liner is designed to be comfortable and durable for below-knee amputees with more active lifestyles.
Benefits at a glance:
- The 3D design features a thicker wall (6 mm) in the front for better protection, and a thinner wall (3 mm) at the rear for more flexibility
- Medical white oil for nurturing dry and sensitive residual limbs
- New, improved gel formula combines durability and comfort, and can also be thermoformed
- Knee flexion zone for easy knee flexibility with simultaneous relief of the patella
- Monoelastic fabric prevents pistoning and eliminates the need for a distal matrix

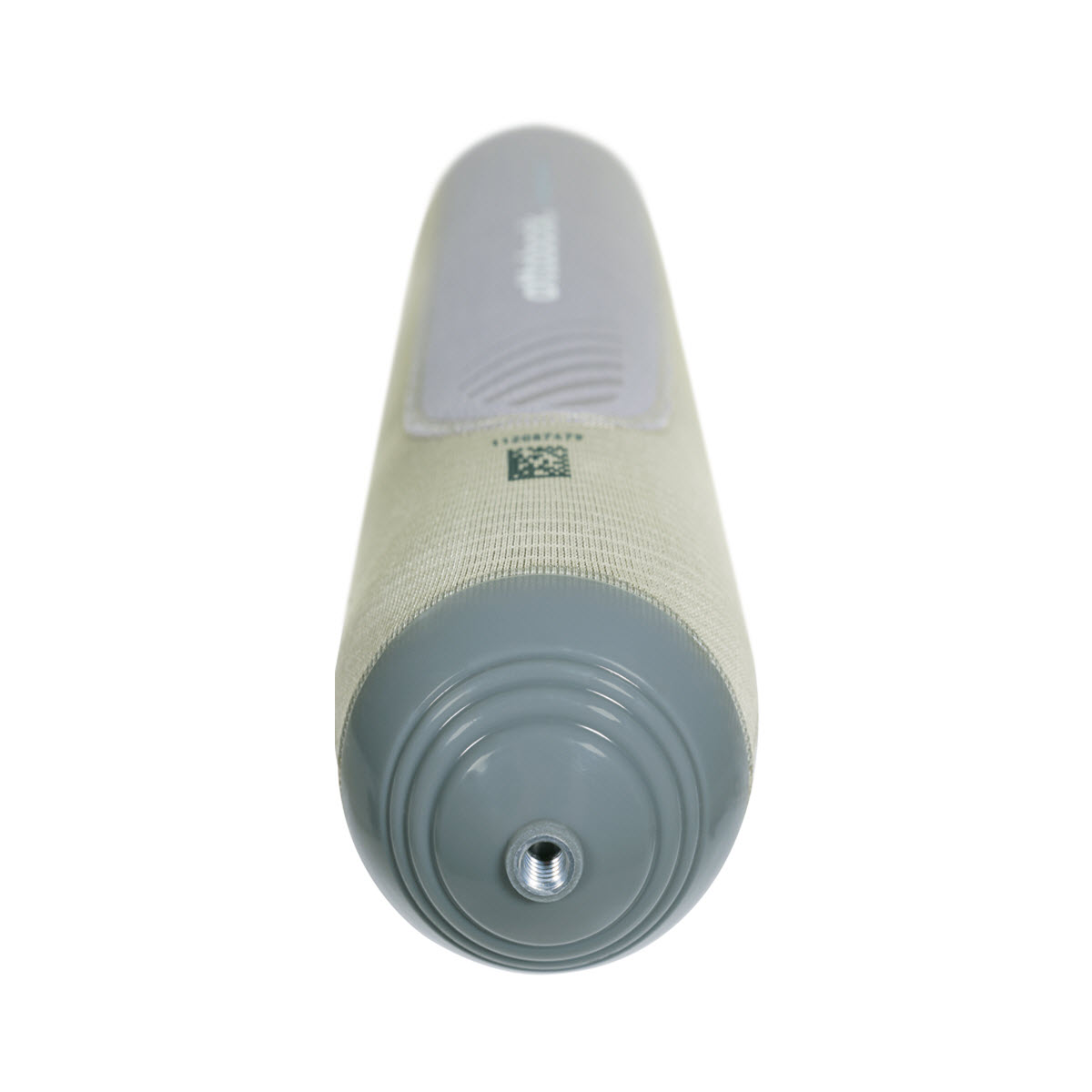

- Soft more flexible 3D cap for locking liners and no cap for cushion liners.
Try our Interactive Liner Selection Tool here: https://academy.ottobockus.com/toolbox/liners/liners
| 6Y95=L6 (size) | 6Y95=C6 (size) | |
|---|---|---|
| Amputation Level | Transtibial (TT) | Transtibial (TT) |
| Distal Connection | With | Without |
| Textile Cover | With | With |
| Wall Thickness | 6 mm (front), 3 mm (back) | 6 mm (front), 3 mm (back) |
| Socket Design | Specific or total surface weight-bearing socket | Specific or total surface weight-bearing socket |
| Matrix | Integrated in textile | Integrated in textile |
| Example for Ordering | 6Y95=L6-M | 6Y95=C6-M |
| 4 cm from distal (min) | 4 cm from distal (max) | 30 from distal (min) | 30 cm from distal (max) | |
|---|---|---|---|---|
| S | 150 | 260 | 200 | 330 |
| M | 180 | 310 | 230 | 410 |
| MP | 200 | 310 | 330 | 560 |
| L | 230 | 350 | 360 | 560 |
| LP | 280 | 430 | 400 | 630 |
| XL | 330 | 500 | 430 | 690 |
