AxonEnergy Integral
Visión general

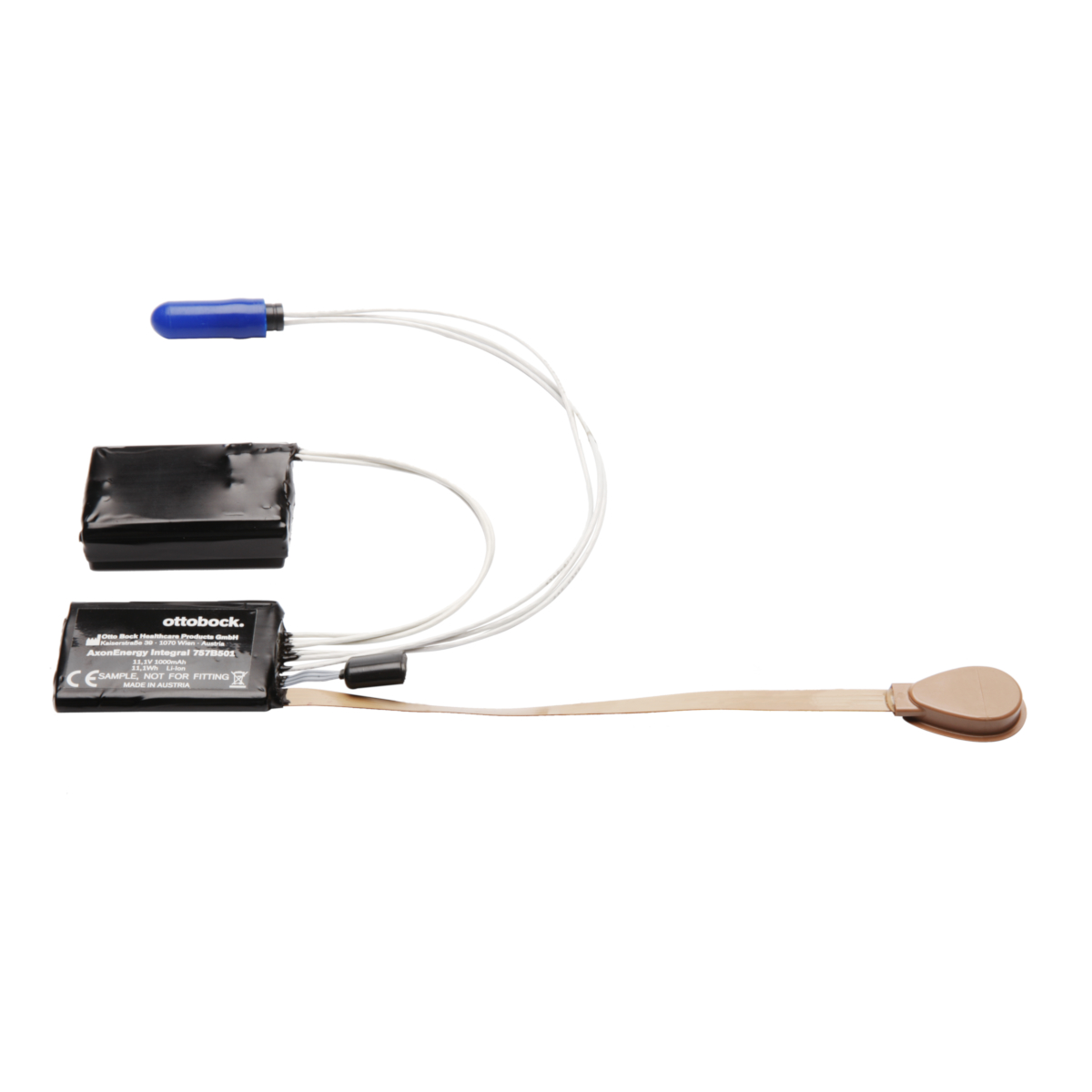

The 757B501 AxonEnergy Integral serves exclusively to provide power to the Axon-Bus prosthetic system. The battery consists of 3 Li-Ion cells. The integrated electronics protect the battery against short circuits, overvoltage, undervoltage and charging outside the allowable temperature range.
The Axon-Bus cable with the three-pin receptacle is used to exchange data and connects the respective prosthesis components to the battery.
The 757B5001 AxonEnergy Integral may only be used in conjunction with components of the Ottobock Axon-Bus prosthetic system. Only the 757L500 AxonCharge Integral may be used for charging.
| 757B501 | |
|---|---|
| Weight | 90 g |
| Operating temperature | 0 to +60 degrees C |
| Storage temperature | - 20 to 40 degrees C |
| Transport temperature | - 20 to 40 degrees C |
| Relative humidity | max. 80% non-condensing |
| Capacity | 1,150 mAh |
| Dimensions LxWxH | 55 x 35 x 23 mm |
| Approx. output voltage | 11.1 V |
| Approx. charging time | 3.5 h |
