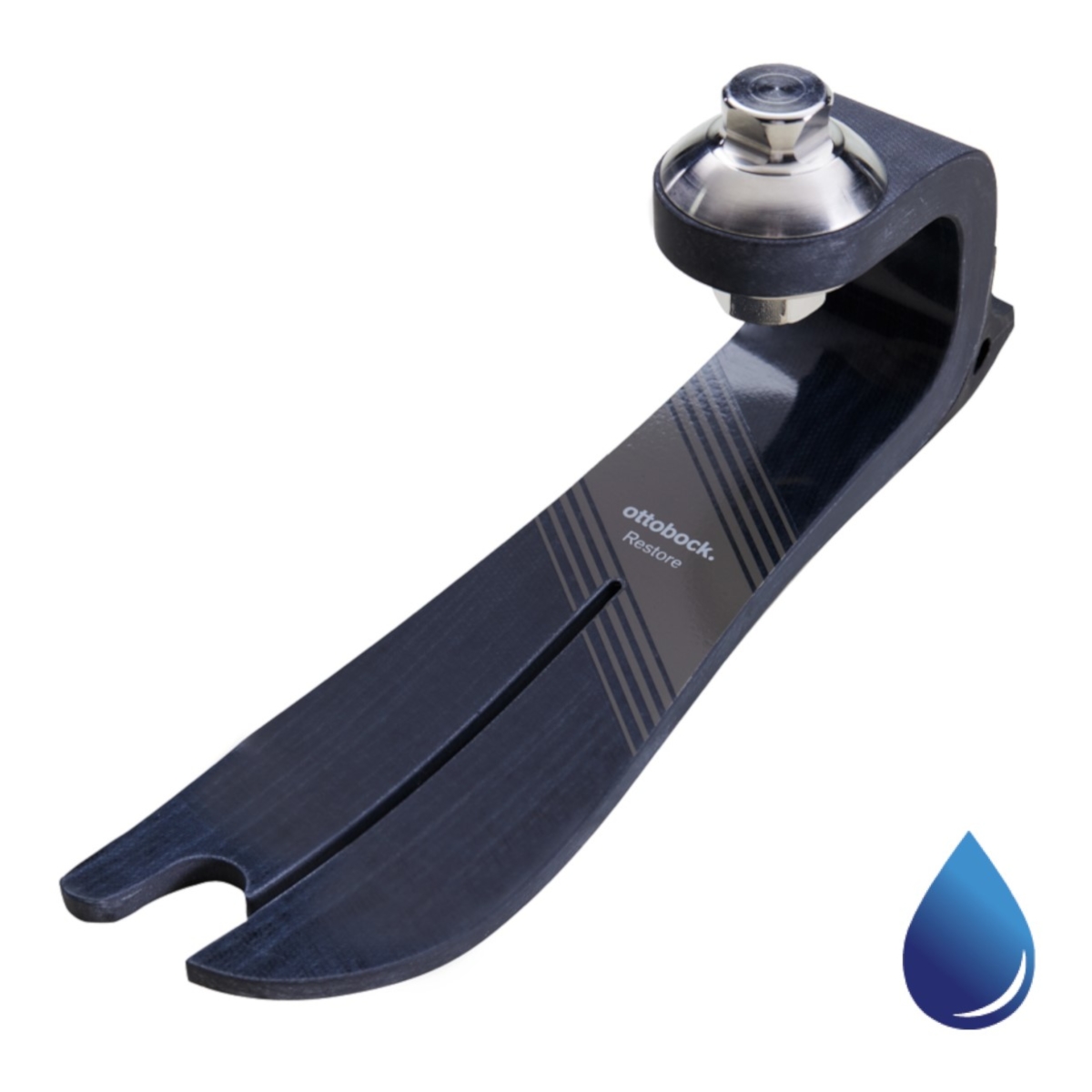

The Restore™ prosthetic foot represents a breakthrough in performance for single speed ambulators (K2 level amputees). Featuring a full-length fiberglass keel in a C-shaped design, Restore provides excellent stability and support. Users will experience increased confidence when performing day-to-day activities. Prosthetists will appreciate the durable fiberglass design with easy to customize heel stiffness adjustments.
Features
- Full length fiberglass keel provides stability and smooth roll over characteristics needed for K2 level ambulator
- Three independent heel bumper options allow the prosthetist to fine tune the response of the heel based on the users’ walking dynamics
- Inversion/eversion semi-split keel combined with the added compliance of fiberglass allow the foot to adapt to uneven terrain
- A C-shaped foot module provides improved response and stability from initial contact through toe off for natural tibial progression and energy return
- Sandal toe
- Splash and occasional water submersion
- Increased durability, flexibility, and natural feel
Specifications
| Activity Level | K2 |
| Maximum Body Weight | 300 lbs (136 kg) |
| Sizes | 22 cm - 30 cm |
| Footshell Color | Light, Dark |
| ~ Min. Clearance Height (Size 26 cm) | 89 - 99 mm (3 1/2" - 3 7/8") |
| Average Product Weight (w/ footshell) | 23.77 oz (674 g) |

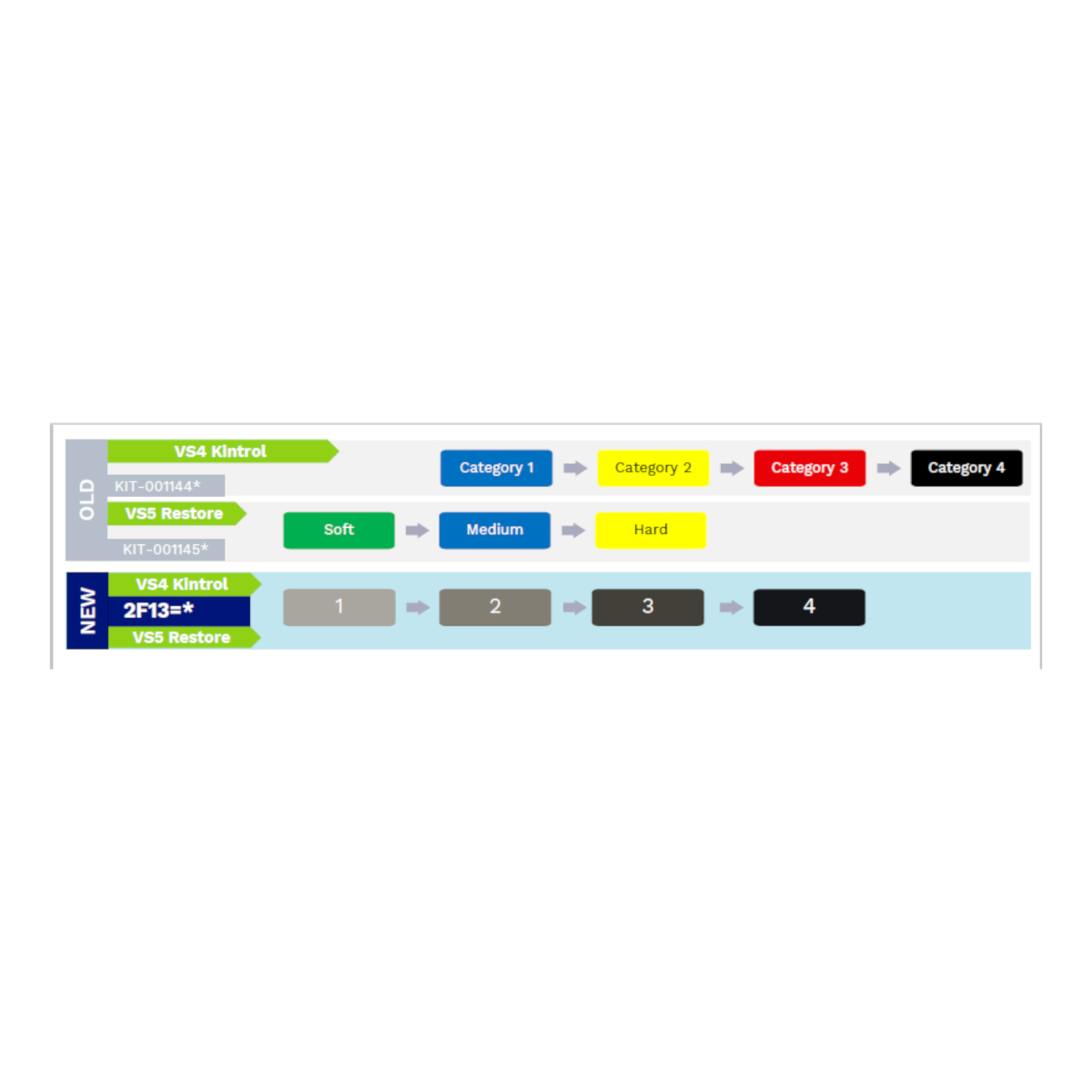

Stiffness by body weight
|
Stiffness |
| 100 - 130 lbs / 45 - 59 kg |
1 |
| 131 - 180 lbs / 60 - 81 kg |
2 |
| 181 - 240 lbs / 82 - 109 kg |
3 |
| 241 - 300 lbs / 110 - 136 kg |
4 |
Foot size by stiffness category / weight
|
Min Weight (lbs) |
Max Weight (lbs) |
22 |
23 |
24 |
25 |
26 |
27 |
28 |
29 |
30 |
| 1 |
100 |
130 |
1 |
1 |
1 |
1 |
1 |
1 |
N/A |
N/A |
N/A |
| 2 |
131 |
180 |
2 |
2 |
2 |
2 |
2 |
2 |
2 |
2 |
N/A |
| 3 |
181 |
240 |
N/A |
3 |
3 |
3 |
3 |
3 |
3 |
3 |
3 |
| 4 |
241 |
300 |
N/A |
N/A |
4 |
4 |
4 |
4 |
4 |
4 |
4 |
