Kenevo

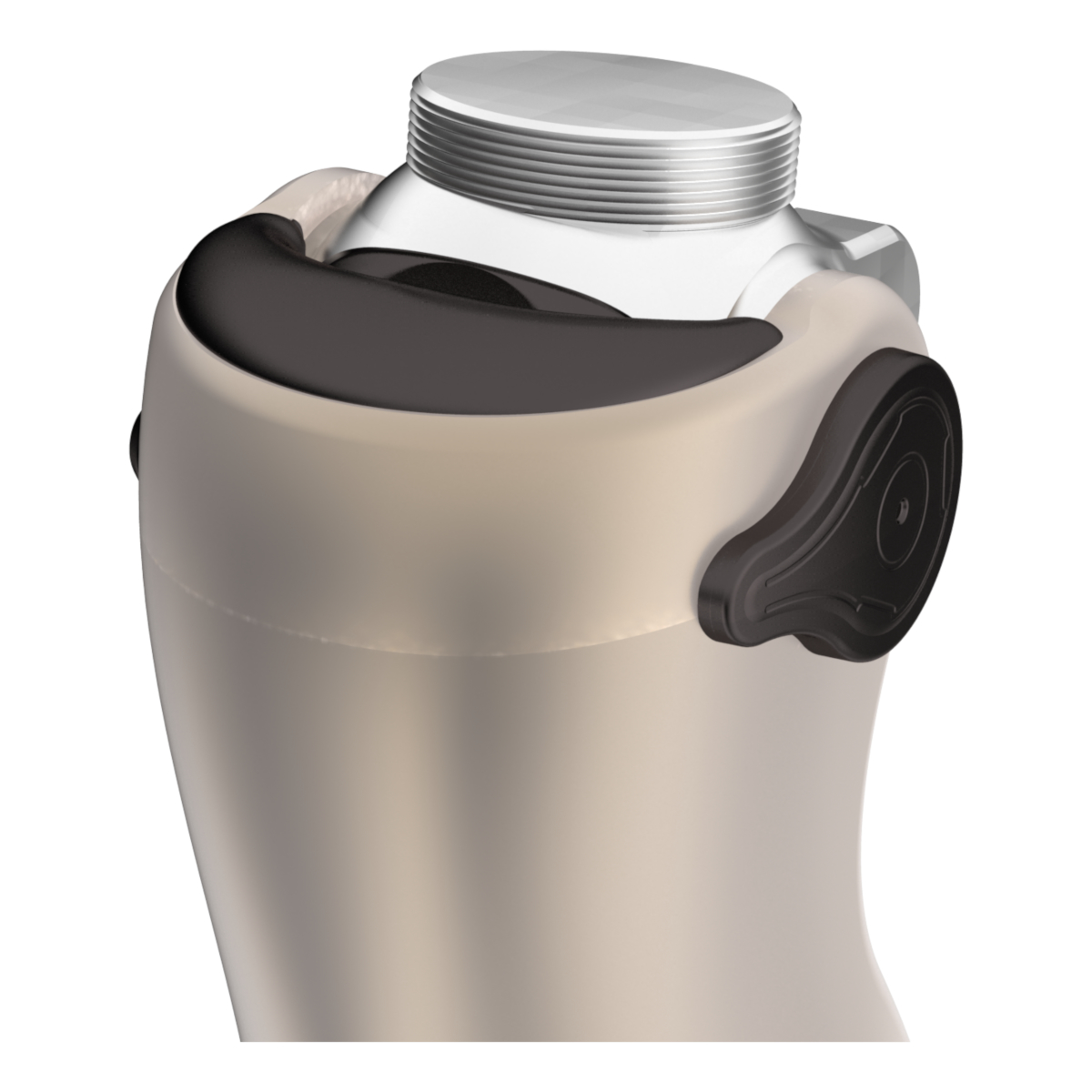

Threaded top
Threaded top

Overview

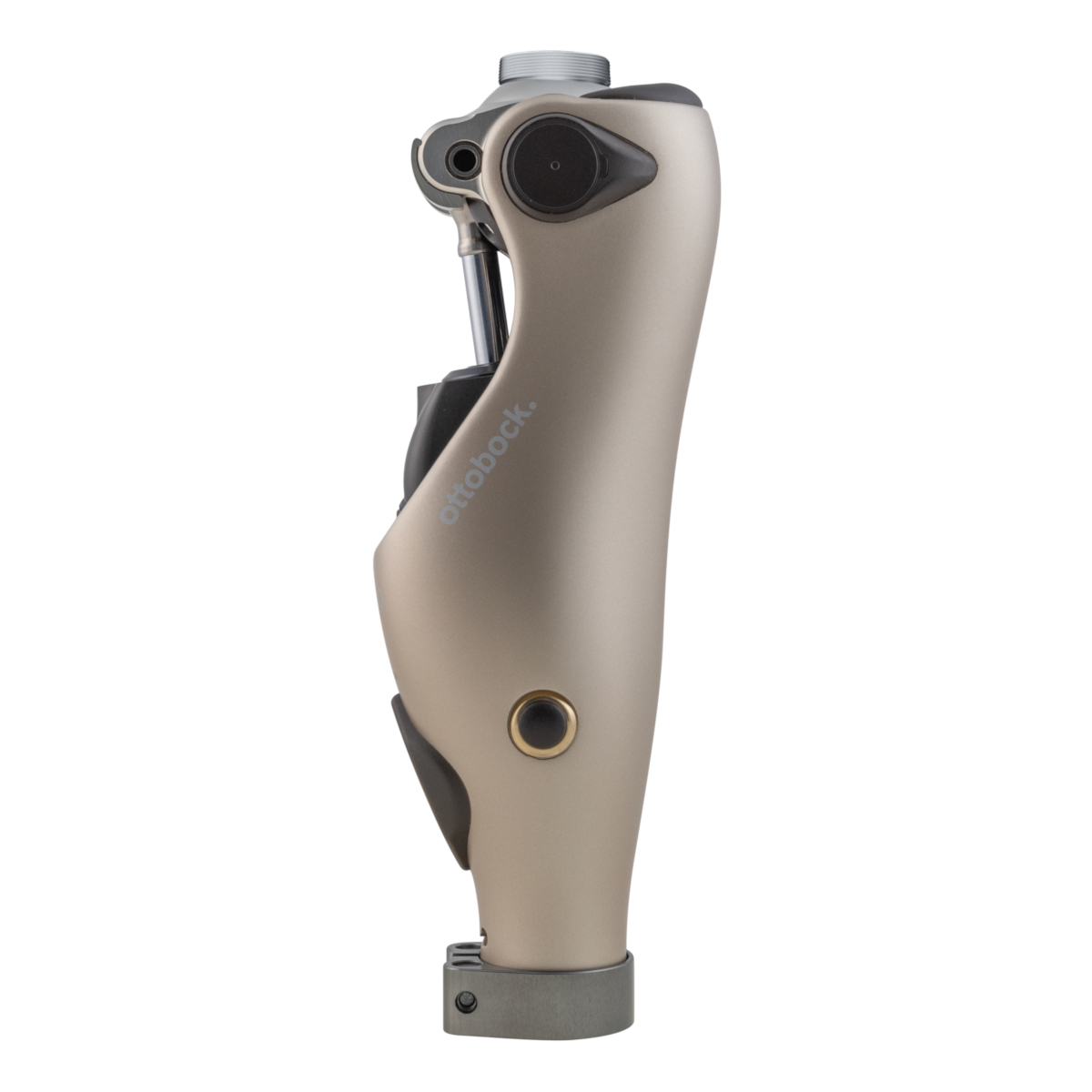

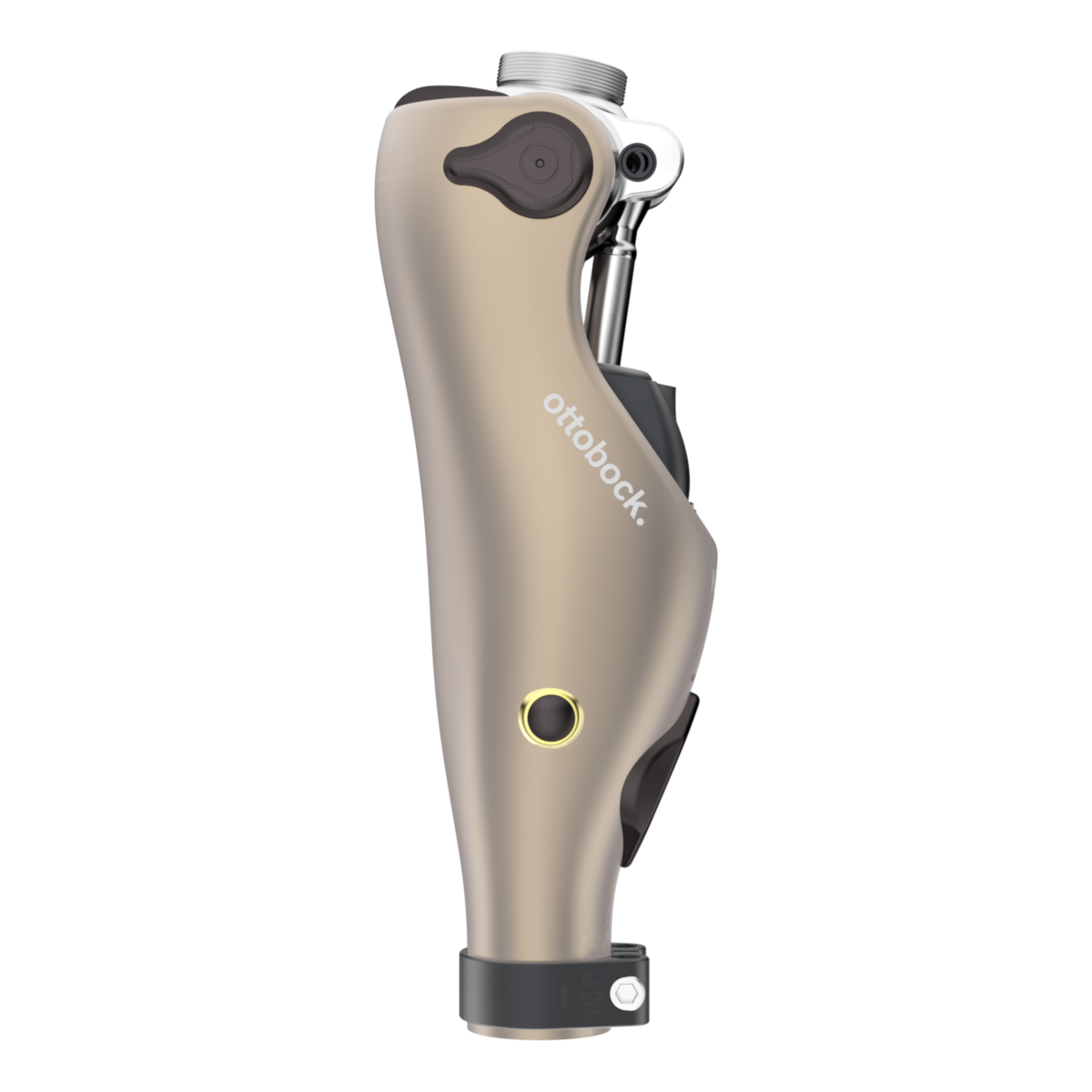

The Kenevo is the world’s first and only microprocessor knee designed specifically for users with mobility limitations who need a high level of stability. Its state-of-the-art technology supports users, allowing them to feel safer and more independent than ever before. With features such as supported sitting down and standing up, Stumble Recovery Plus, intuitive stance, and the wheelchair function, the Kenevo brings the security of an MPK to those who need it most.

Now, the new Kenevo has even more benefits for those who need a high level of stability, making everyday life even easier for its users. New features include:

•    Donning the prosthesis while seated, thanks to complete flexion of the knee joint
•    Automatic switching to lower knee flexion resistance for a stationary indoor bicycle
•    Redesigned inductive charging unit makes it easier for those with dexterity challenges
•    Convenient charging without having to remove the Kenevo foam cover
•    User-controlled adjustments to the knee through the Cockpit App
•    Approved for hip disarticulation with 7E7, 7E9, and 7E10
•    IP22 Rating: protected from objects greater than 12.5mm in size. Not waterproof or corrosion-resistant, but protected from dripping water.




Scope of delivery:

•    3C60=ST Kenevo Microprocessor Knee
•    2R17 AXON Tube Adapter
•    757L16-4 AC Adapter
•    4E70-1 Inductive Charger



Important Safety Note: Entering a room or area with strong magnetic fields (e.g., MRI) can cause irreparable damage to microprocessor knees. Microprocessor knees should be removed before entering a room or area where strong magnetic fields exist.



Specifications

Activity LevelK2, low-K3*
Maximum Body Weight330 lbs (150 kg)
Flexion angle124 degrees
Proximal connectionThreaded top
Distal ConnectionTube Clamp
Product Weight2.02 lbs (3C60) - 2.03 lbs. (3C60=ST)
Proximal system height up to alignment reference point23 mm
Maximum distal system height with 2R17 pylon490 mm
Walking Speed≤1.9 mph
MaterialCarbon
Moisture protectionIP22 (protected against dripping water)
Standard Warranty3 years
Battery lifeApproximately 1 day
ColorDesert pearl
Software Updatesconnectgo.pro
*disclaimerFor patients who walk with speeds of up to 1.9 mph and up to ½ mile outside the house per day.
