Modular Knee Joint, pneumatic
3R106 Prosthetics

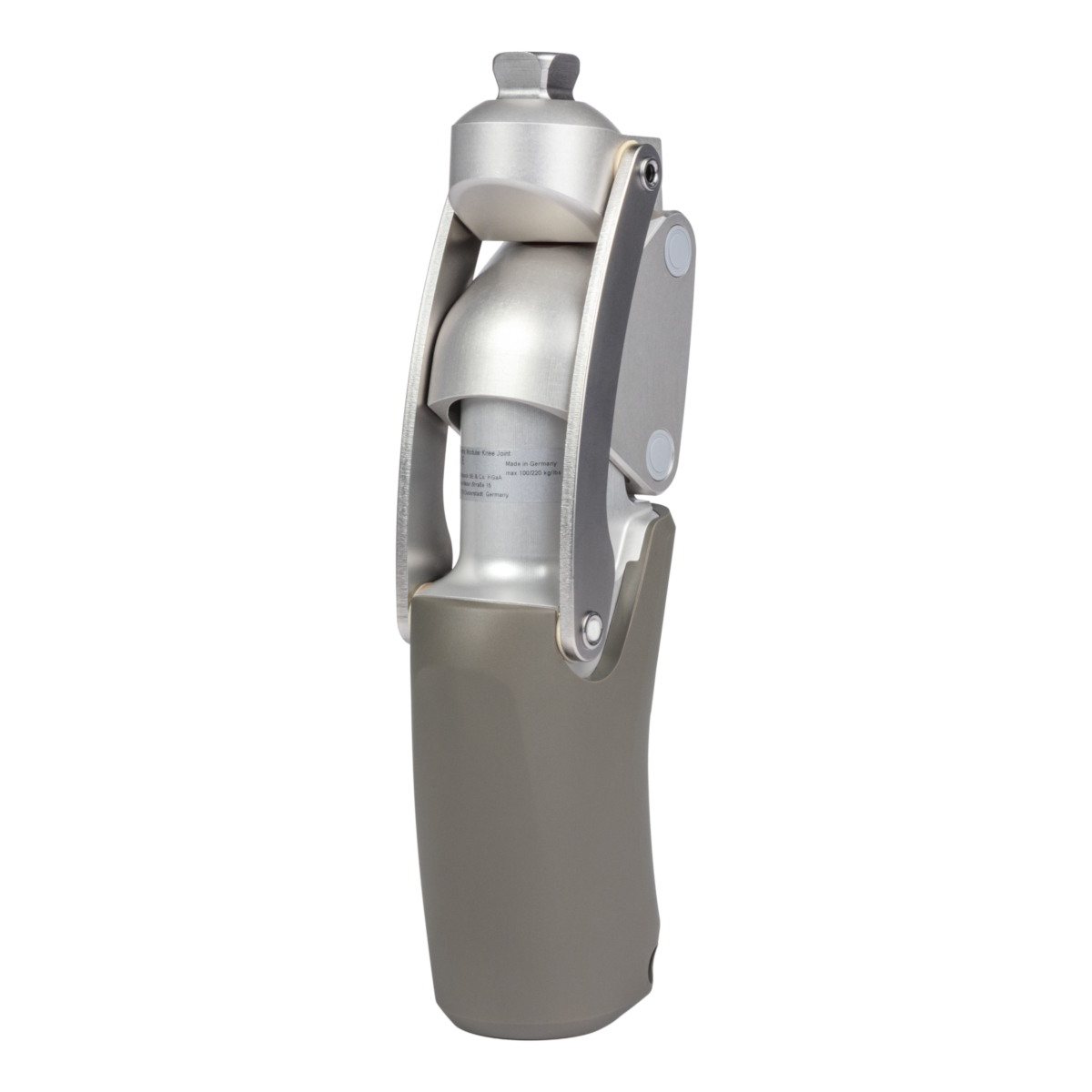

Polycentric Pneumatic Knee
Polycentric Pneumatic Knee
Overview
The 3R106 pneumatic knee joint was developed for moderately active users and is characterized by its compact design and low weight, offering flexibility in a variety of everyday situations.
Designed for optimal outcomes
- The polycentric design reliably secures the knee joint during the stance phase and can provide greater ground clearance during the swing phase.
- The polycentric design with easy initiation of the swing phase and swing phase damping ensures a harmonious damping curve and a pleasant extension stop.
- The flexion and extension damping of the pneumatic system can be adjusted separately.
- Extension Assist for ease of swing initiation
- The large knee flexion angle of 172° makes it easier to perform various activities.
- Lightweight.
| Article number | 3R106=P |
|---|---|
| Mobility grade | 2-3 |
| Max. body weight | 220 lbs (100 kg) |
| Product weight | 1.6 lbs (730 g) |
| Distal connection | Tube clamp, outside diameter 30 mm |
| Proximal connection | Pyramid |
| Build height | 8 3/4" (222 mm) |
| Distal build height to alignment reference point | 7 11/16" (195 mm) |
| Proximal build height to alignment reference point | 1/2" (12 mm) |
| Max. knee flexion angle | 172 degrees |
| Included in scope of delivery | 2R49 tube adapter |
