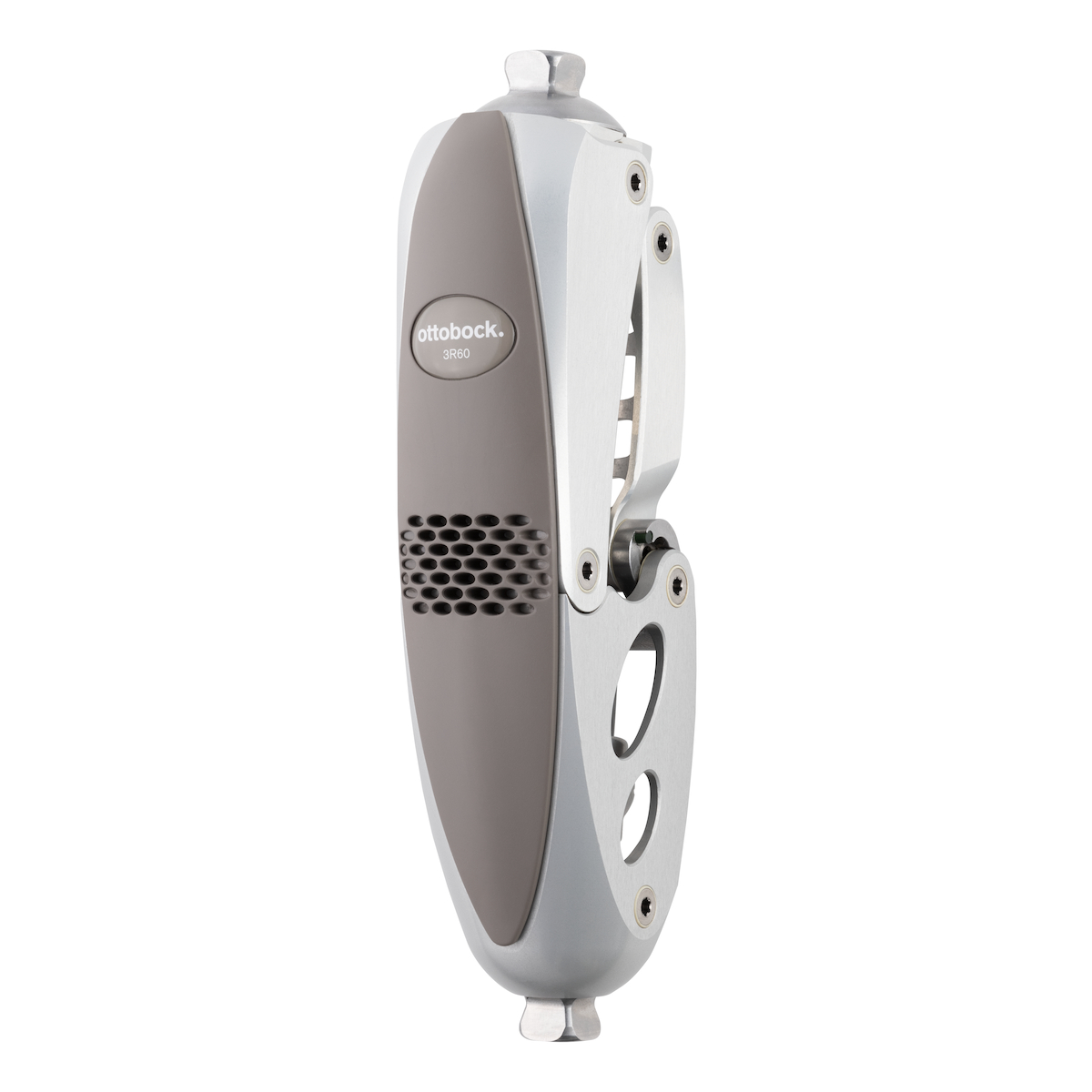

Modular EBS Knee Joint

3R60
Move with confidence.

The 3R60 hydraulic knee joint was developed for moderately active and active users and enables walking at different speeds and walking in various everyday situations.

Designed for optimal outcomes

• The polycentric structure provides reliable stability for the knee joint during the stance phase, shortens during the swing phase and can deliver increased ground clearance.
• The polycentric structure with easy initiation of the swing phase and swing phase damping ensures a smooth damping progression and a comfortable extension stop.
• The flexion and extension damping of the hydraulics can be adjusted separately.
• Large flexion angle of 165° (can also be limited to 135° by means of flexion stops if required).
• The EBS unit (“Ergonomically Balanced Stride”) enables controlled knee stance flexion of up to 10° at heel strike. The extension movement is hydraulically damped in the stance phase, resulting in harmonious stance phase damping in the flexion and extension direction.
• The knee joint is waterproof and corrosion-resistant for fresh, salt, and chlorinated water.
