Planning and Equipping

Machinery

The Pedilan vacuum forming plate surface prevents the plastic from sticking to the vacuum forming plate. The vacuum tube is also equipped with a quick-change system for exchanging the vacuum forming plate. This saves storage space, and the vacuum tube can remain clamped in place at all times as well.

Laser Technology and alignment apparatus

Devices with correct static alignment have a positive effect on users’ posture and mobility: Malpositions are minimised, the body is relieved and users find it easier to maintain their balance.
The 3D L.A.S.A.R. Posture supports technicians in providing optimal prosthetic and orthotic alignments as well as in checking body posture. Our latest new developments for this proven product, which is highly valued in everyday work thanks to its numerous advantages, make working with the 3D L.A.S.A.R. Posture even easier and more comfortable. We placed particular focus on simplifying the documentation process as well as expanding the measurement function.
With the new 3D L.A.S.A.R. Posture, cameras take a live recording of the patient standing on the measuring plate and transmit the image to a tablet PC. The measured forces are represented as lines on the tablet’s display, which are positioned with millimetre accuracy over the patient’s image.

Safety equipment

The best way to prevent transmission is avoiding direct face-to-face contact. But this isn’t possible in many cases. This is where the mobile protective screen is the perfect solution. The screen is simply mounted on the counter, thereby considerably reducing the direct transmission route. The protective screen is made of high-quality, transparent plastic.

Workshop equipment

Compact, functional and convenient – with a footprint of less than 2 m², the lamination workstation is especially suited to small workshops.
You’re just two steps away from the perfect result. The full power of the vacuum pump is available to you at the press of a button, and the lamination process can begin as soon as you open the shut-off valves.
The workstation is also equipped with an adjustable vacuum system and pressure gauge on both sides to ensure precise results. The vacuum can be generated from above or below to match your preferences and way of working, as the high-precision clamping devices can be extended or retracted as well as rotated by 360°.

With the automatic room disinfection unit, you can eliminate pathogens in your store and provide a healthier environment for your customers and your team.
Despite thorough scrubbing and wiping disinfection, 42% of surfaces in medical areas have very high levels of microbial contamination.*
This health risk, which affects you, your employees and customers, can be efficiently eliminated with the touch of a button. The mobile room disinfection unit produces a fine disinfectant mist which reaches normally inaccessible areas. Disinfection is carried out automatically according to the settings you have defined quickly, efficiently and safely – without leaving any toxic residues behind.
*Source: Bionovis Hygiene Institute, based on an examination of dentists&#039; offices

Mechanical Tools

The function and design of customised support elements are being continuously improved. The good thing is that we have materials such as titanium to support this trend. With just very small dimensions, titanium bars can withstand great forces and give users the necessary stability. The bad thing is that these materials are difficult to process.

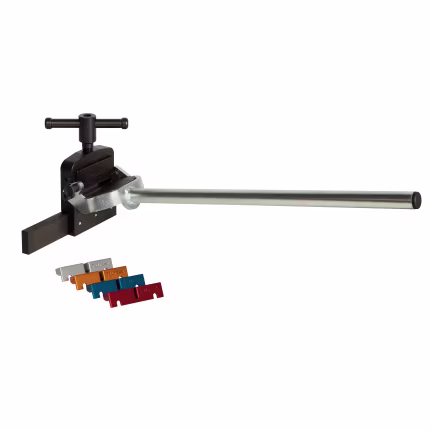

Ottobock’s bending apparatus for titanium rods is the perfect solution for easy processing. Due to its long lever and solid design, even titanium bars can be bent and shaped with ease. Even difficult S curves are easy to make with this device. Due to the concentrated power, all bars can be precisely bent to the desired shape. And the process is much faster and involves less surface damage than with conventional tools.

Our goal is to provide you with the best possible support for your work. This is what pushes us to continue developing our products. Our goal: Keep what’s been proven to work and further enhance it with innovations. One example is our vacuum system, where we combine reliable technology such as the motor and its pump together with an innovative control system and a modern design – for even more precise laminating results.

This highly modern suction booth features an integrated air curtain, providing optimum protection against chemical vapours – and enabling you to work at the front with clear vision at all times. When lamination resins are processed, harmful vapours and gases have to be extracted safely. In conjunction with a central explosion-proof box ventilator, you can now extract gases and vapours safely and conveniently. The fresh air curtain at the front prevents gases and vapours from entering the work room. In this way, you can work optimally at the front with the best view and no impairments by a protective window. Integrated explosion-proof lighting guarantees first-class illumination of the workplace.

The lamination workstation enables users to work simultaneously, provides extremely effective vapour protection and offers you remarkably flexible adjustment possibilities. Depending on the version, two, three or even four workstations give you the opportunity to continue working on another project while you wait for a model to cure.

During vacuum forming, the thermoplastic material is applied directly over the cone-shaped vacuum pipe. Once the vacuum-formed model has cooled, it can be pulled off the adapter with just a few turns - it doesn&#039;t need to be cut free.

Made to continue processing of heated material: The high-quality processing of the vacuum forming workstations is equipped to support orthopaedic technicians in modelling thermoplastics. The vacuum is controlled with the foot pedal, while the water trap and particle filter protect the vacuum pump. In addition, special attention was paid to ensuring that enough shelves for the vacuum forming accessories are available.
With its compact design and thanks to the integrated vacuum pump, the vacuum forming and shaping workstation is particularly well suited for use in small workshops. It gives you extensive freedom of movement while working.

The highlight of this product series: an integrated tank in the upper part of the vacuum forming table&#039;s frame. The tank temporarily stores a vacuum, so it&#039;s immediately available at the desired output level when you need it. The vacuum is extracted using a foot pedal so you can control extraction precisely while keeping both hands free for vacuum forming and moulding. And changing vacuum pipes is just as easy: it takes only a few steps to replace them with other adapters and suction pipes, such as the conical vacuum pipe (article number 755X230&#61;*) or the vacuum forming adapter with vacuum forming plate (article number 755X180&#61;R or 755X180&#61;L).
