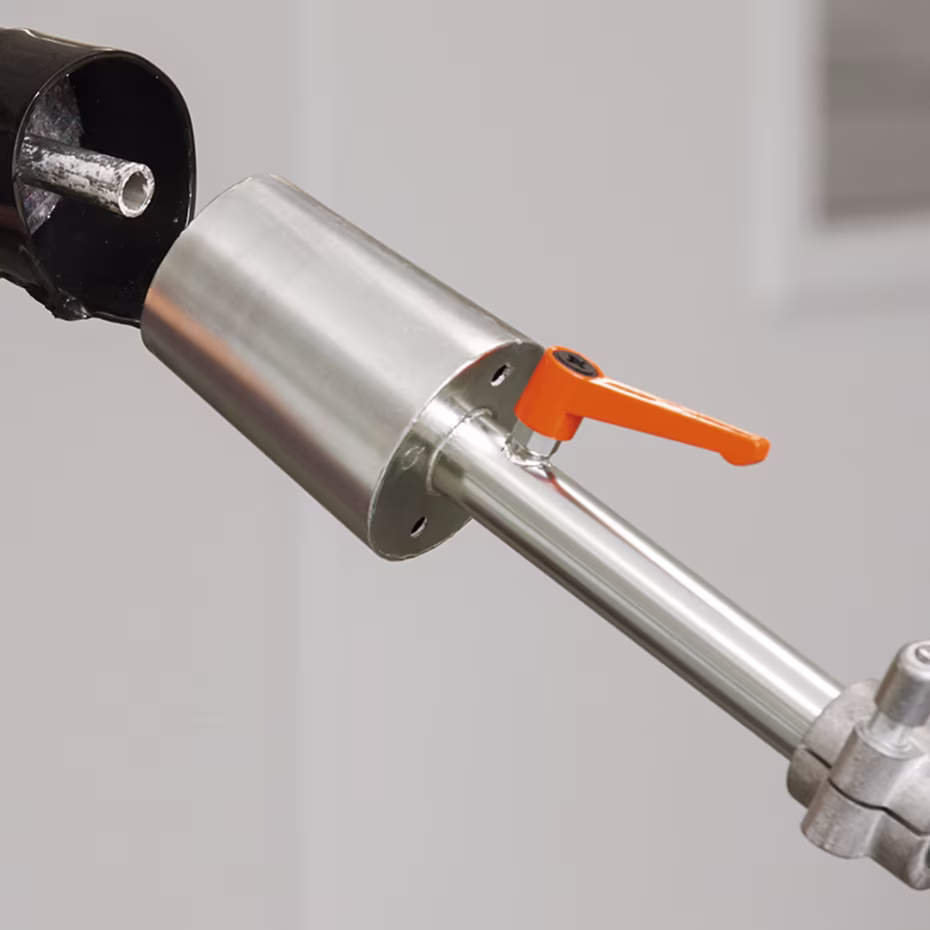

Conical vacuum pipe
The innovative conical vacuum pipe is another adapter alternative which makes vacuum forming even easier.
During vacuum forming, the thermoplastic material is applied directly over the cone-shaped vacuum pipe. Once the vacuum-formed model has cooled, it can be pulled off the adapter with just a few turns - it doesn't need to be cut free.
During vacuum forming, the thermoplastic material is applied directly over the cone-shaped vacuum pipe. Once the vacuum-formed model has cooled, it can be pulled off the adapter with just a few turns - it doesn't need to be cut free.
| Material | Steel, galvanized |
| Weight | 1.7 lbs |
Functionality
All benefits at a glance
- Material: galvanized steel
- Vacuum connection diameter 25 mm (includes adapter for 6 mm and 13 mm)
- The vacuum-formed model can be pulled off the vacuum pipe with just a few turns
Specifications
Product information
| Material | Steel, galvanized |
| Weight | 1.7 lbs |
Product Data
| Article number | 755X230=110 | 755X230=65 | 755X230=85 |
| Diameter | 110 / 130 ″ | 65 / 85 ″ | 85 / 100 ″ |
| Length | 418 ″ | 418 ″ | 418 ″ |
| Material | Steel, galvanized | Steel, galvanized | Steel, galvanized |
| Vacuum connection Ø | 6, 13, 25 ″ | 6, 13, 25 ″ | 6, 13, 25 ″ |
| Weight | 1.7 lbs | 1.3 lbs | 1.4 lbs |
| Article number | 755X230=65 | 755X230=85 | 755X230=110 |
| Product features | Incl. adapter for vacuum connection, diameter 6 mm, 13 mm and 25 mm | ||
| Length | 418 ″ | ||
| Diameter | 65 / 85 ″ | 85 / 100 ″ | 110 / 130 ″ |
| Vacuum connection Ø | 6, 13, 25 ″ | ||
| Weight | 1.3 lbs | 1.4 lbs | 1.7 lbs |
| Material | Steel, galvanized |
