Planning and Equipping

Machinery

The Pedilan vacuum forming plate surface prevents the plastic from sticking to the vacuum forming plate. The vacuum tube is also equipped with a quick-change system for exchanging the vacuum forming plate. This saves storage space, and the vacuum tube can remain clamped in place at all times as well.

Our goal is to provide you with the best possible support for your work. This is what pushes us to continue developing our products. Our goal: Keep what’s been proven to work and further enhance it with innovations. One example is our vacuum system, where we combine reliable technology such as the motor and its pump together with an innovative control system and a modern design – for even more precise laminating results.

During vacuum forming, the thermoplastic material is applied directly over the cone-shaped vacuum pipe. Once the vacuum-formed model has cooled, it can be pulled off the adapter with just a few turns - it doesn&#039;t need to be cut free.

By replacing the traditional vacuum pipe on the vacuum forming tables with a vacuum forming adapter that includes a vacuum forming plate, you can have even more room to manoeuvre.

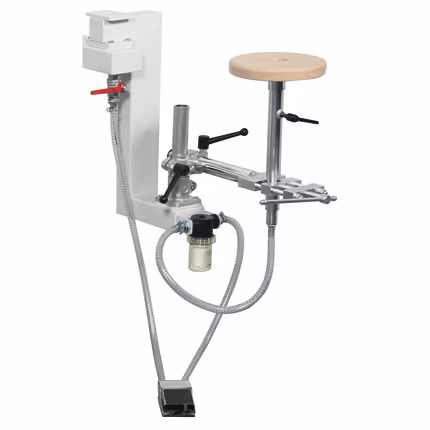

The vacuum forming adapter consists of a vacuum pipe with a vacuum forming plate (diameter 360 mm), which can be mounted on either the left and/or right side of the vacuum forming table. The adapter also comes equipped with a foot pedal and a water trap. You can individually adjust the vacuum forming plate to your ideal working height, so you can vacuum form the heated plastic over the plaster model and remodel it as quickly as possible.
Thanks to a click system, the vacuum forming plate can be easily replaced in a matter of moments. 180 mm and 260 mm diameter versions are also available.
