DynamicArm Plus
Reembolso
- Codificación HCPCS Sugerida
Base Code + L6693*; Add L7181 for Simultaneous Ctrl; *A-N Panel issued add-on code L6693 for DynamicArm's forearm counterbalance feature in 2007
Visión general
For users with more than 2 myo signals

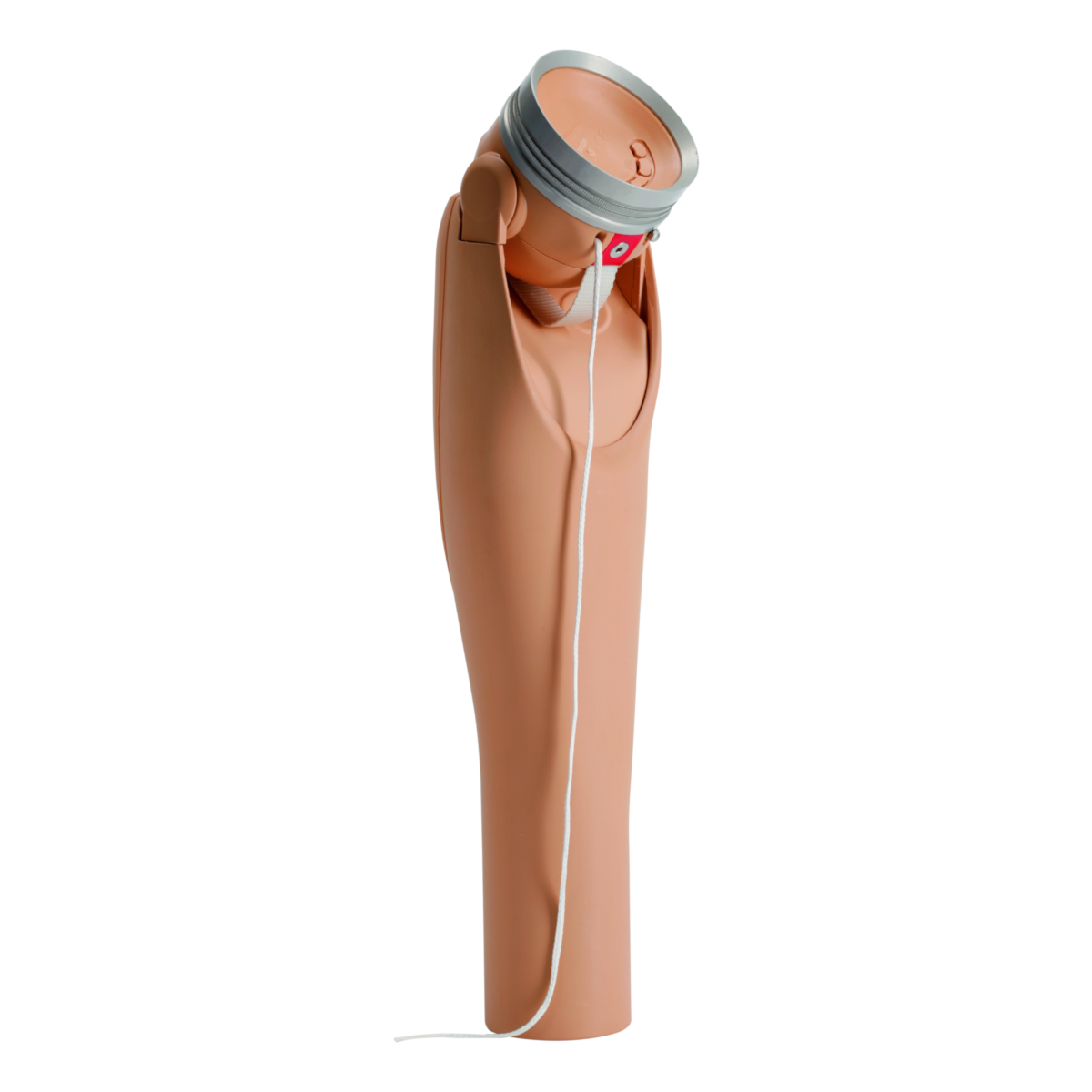

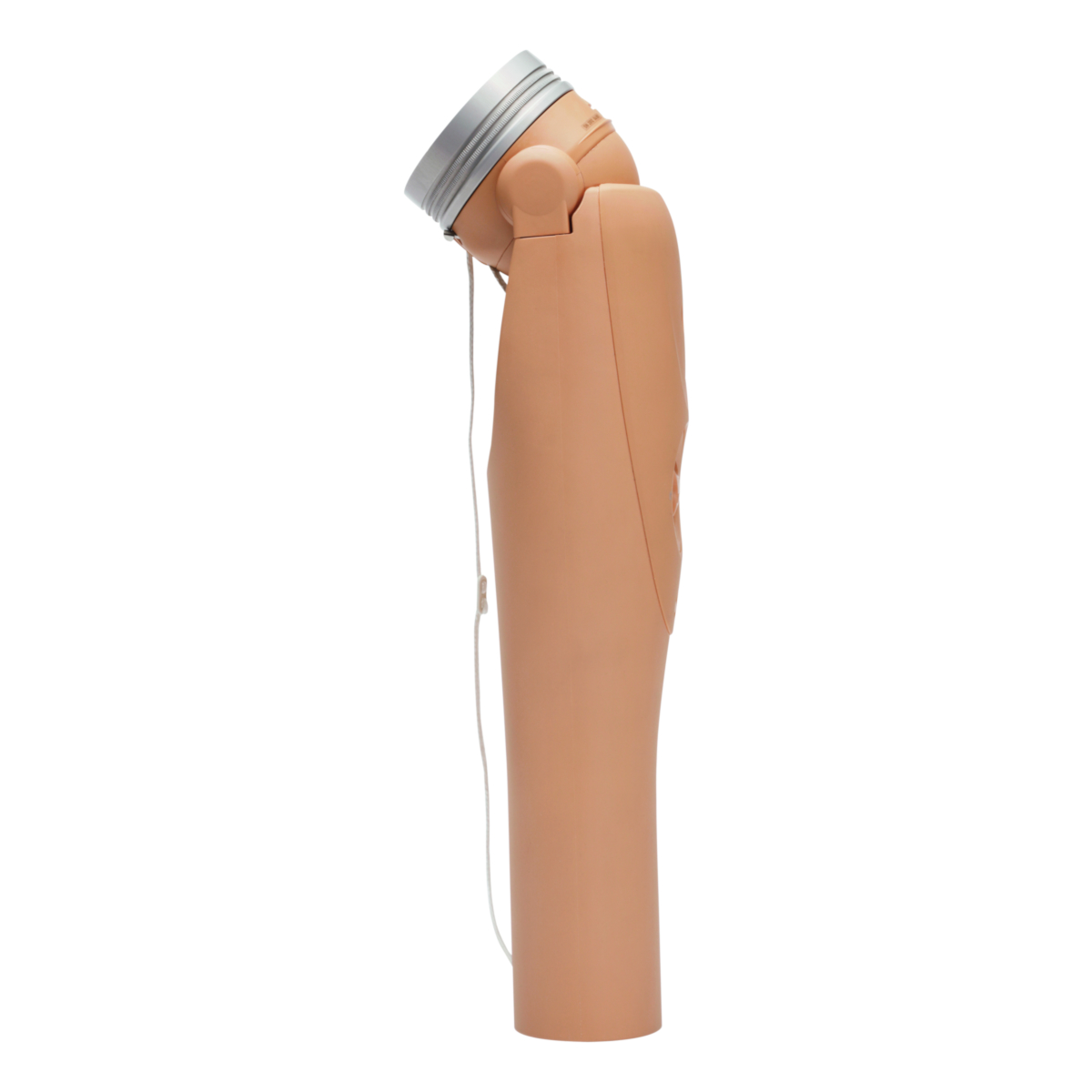

Like the DynamicArm, the 12K110N DynamicArm Plus elbow joint is myoelectrically-controlled and driven by an electric motor. It is intended for fitting users with transhumeral or higher amputation levels or users with more than 2 original signals.
The DynamicArm Plus has the same features as the DynamicArm standard. In addition, it can also process up to 8 input signals.
Key Benefits:
- Control with up to 6 MyoBock electrodes and up to 2 switches
- High lifting and holding force
- Natural, delicate control with quick, precise positioning
- Attractive appearance
- Low noise level, no noise at all during free swing
- Natural free swing behavior

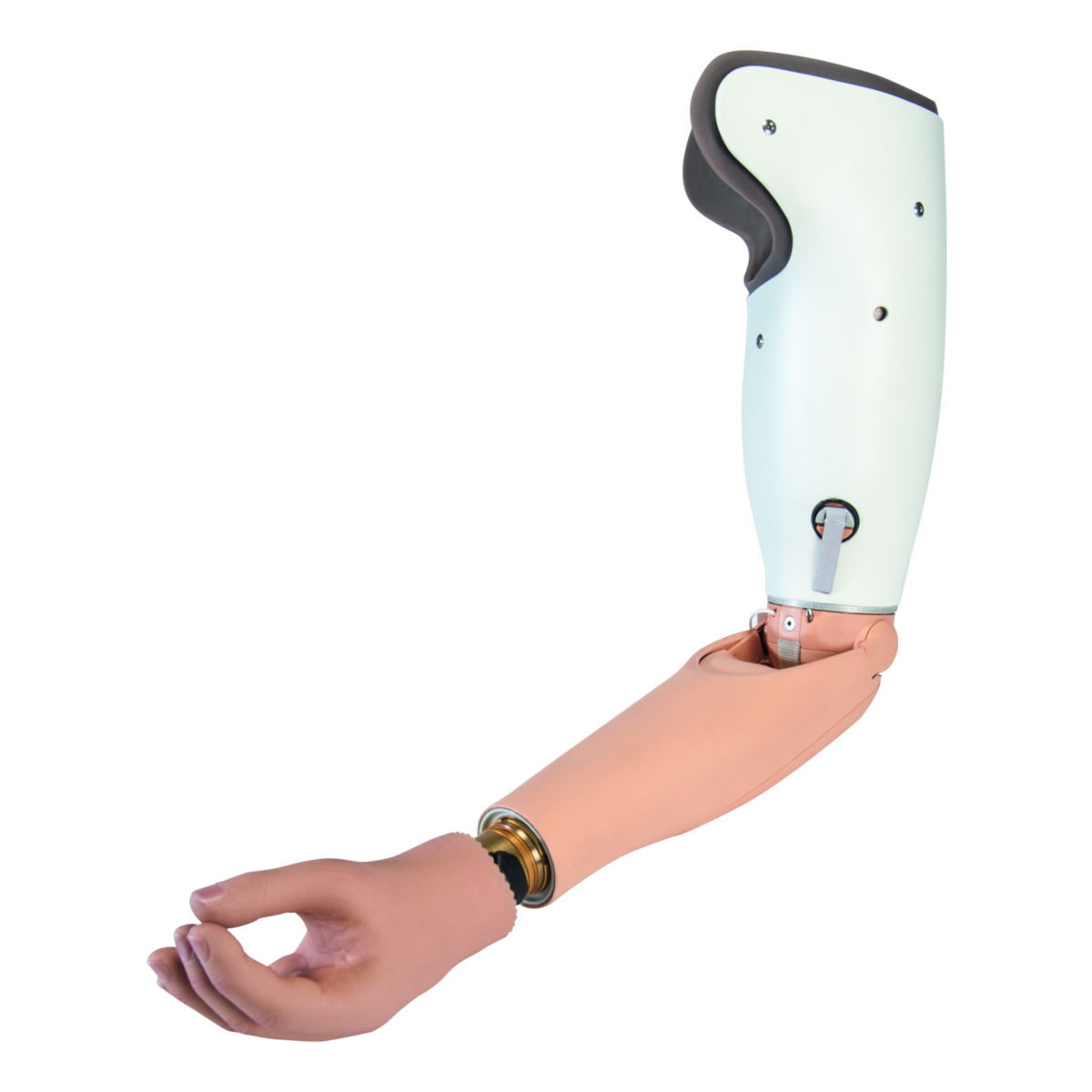

DynamicArm Plus is suitable for combination with other myoelectric prosthetic components from Ottobock, such as:
- 10S17 Electric Wrist Rotator
- 8E38=8* SensorHand Speed
- 8E38=9* MyoHand VariPlus Speed
- 8E33=9 System Electric Greifer DMC VariPlus
Other prosthesis components can not be used. DynamicArm Plus is configured by means of the 646C57 software. In order to do so, DynamicArm Plus is connected to PC via integrated Bluetooth module.
Scope of delivery:
- DynamicArm Plus 12K110N*
- Dummy for electric wrist rotator
- Battery charger with EU and US plug
- Lamination ring
- Assembly hook
- Alignment tool
- 2 Year Manufacturer's Warranty
Optional items ordered separately:
- Coaxial plug or Electric wrist rotator
- Input device & cables
- 3rd Year Extended Warranty: DynamicArm Plus SP-12K110N=3
Ordering information
| Upper arm connection | For hand size | For lamination ring | Color | |
|---|---|---|---|---|
| 12K110N=45 | 70 mm | 6 3/4 to 7 1/4 | 45 mm | No. 4 |
| 12K110N=50 | 70 mm | 7 3/4 to 8 1/4 | 50 mm | No. 4 |
| 12K110N=50-1 | 70 mm | 7 3/4 to 8 1/4 | 50 mm | No. 11 |
| 12K110N=50-2 | 70 mm | 7 3/4 to 8 1/4 | 50 mm | No. 15 |
| 12K110N=50-7 | 70 mm | 7 3/4 to 8 1/4 | 50 mm | Black |
Technical data
| Li-Ion battery | |
|---|---|
| Charging temperature | > 0 degrees C |
| Weight (dependent on forearm length) | approx. 1,000 g |
| Maximum lifting force | 50 N |
| Maximum lift weight | 13 lbs / 6 kg |
| Flexion angle | approx. 15 degrees to 145 degrees |
| Operating temperature | 5 to 40 degrees C |
| Storage and transport temperature in original packaging | -25 to 70 degrees C |
Available Colors
| Model | Size | Color Number | Color Description | |
|---|---|---|---|---|
| 12K100N=45 | DynamicArm | 45mm | 4 | Tan |
| 12K100N=50 | DynamicArm | 50mm | 4 | Tan |
| 12K100N=45-7 | DynamicArm | 45mm | 7 | Jet Black |
| 12K100N=50-7 | DynamicArm | 50mm | 7 | Jet Black |
| 12K100N=50-1 | DynamicArm | 50mm | 11 | Medium Brown |
| 12K100N=50-2 | DynamicArm | 50mm | 15 | Dark Brown |
| 12K110N=45 | DynamicArm Plus | 45mm | 4 | Tan |
| 12K110N=50 | DynamicArm Plus | 50mm | 4 | Tan |
| 12K110N=45-7 | DynamicArm Plus | 45mm | 7 | Jet Black |
| 12K110N=50-7 | DynamicArm Plus | 50mm | 7 | Jet Black |
| 12K110N=50-1 | DynamicArm Plus | 50mm | 11 | Medium Brown |
| 12K110N=50-2 | DynamicArm Plus | 50mm | 15 | Dark Brown |
