Stop-module for 17AD300
Nexgear Tango Stop Module
Nexgear Tango Stop Module
Visión general

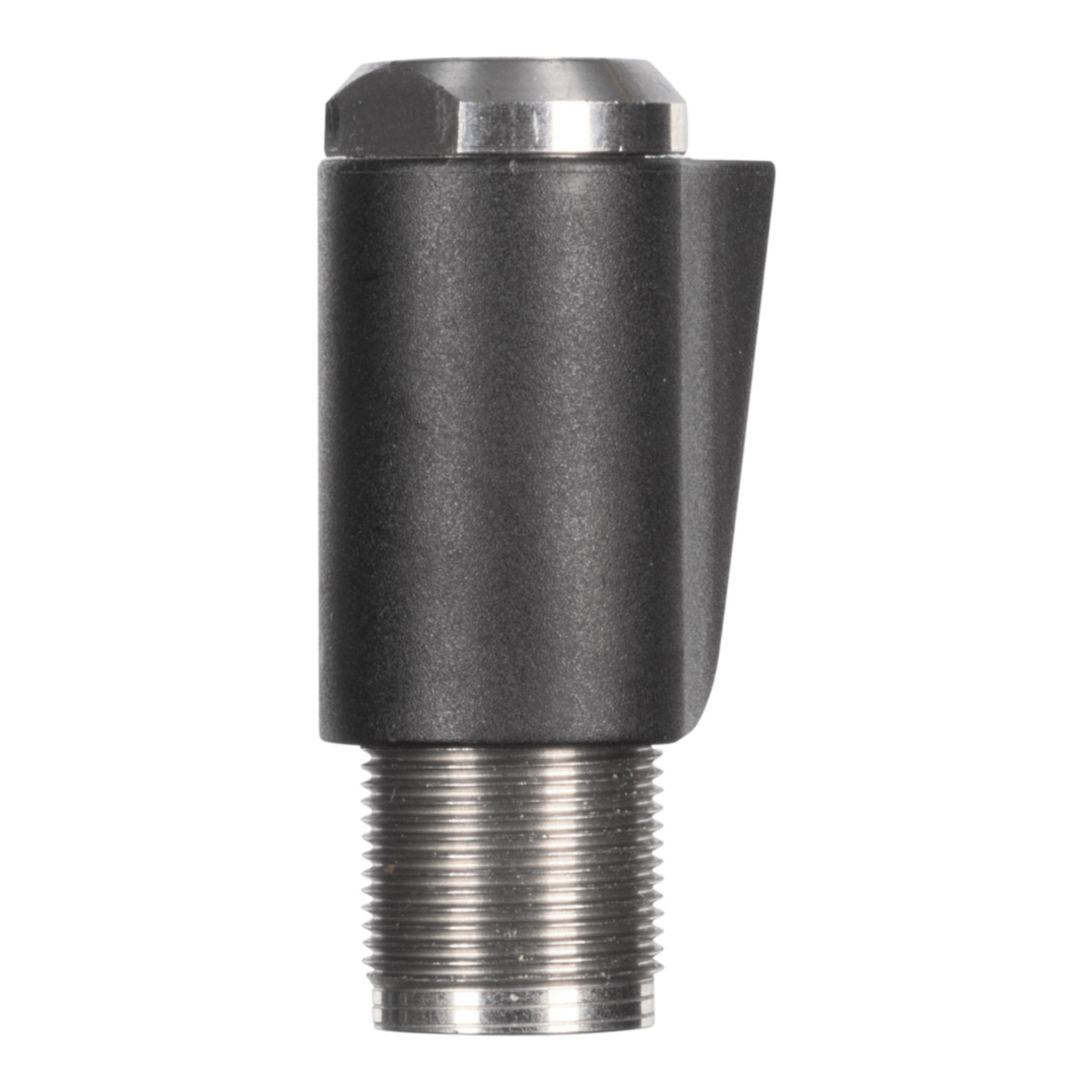

The Stop Module is one of the four function module options for the 17AD300 Nexgear Tango. The removable modules enable a high degree of flexibility in functionality and design, in addition to the customization of the joint to a user's individual needs throughout the entire rehabilitation process.
Use the adjustable Stop Module to set a continuously variable dorsal or plantar stop. This module is available in three sizes. The weight classification allows unilateral use for a user body weight up to 243 lbs and bilateral use for up to 353 lbs.
| Item Number | Weight | System Width | Maximum Body Weight | Unit |
|---|---|---|---|---|
| 17AD301=14 | 14 g | 14 mm (0.551 in) | 110 lbs (unilateral) / 176 lbs (bilateral) | Piece |
| 17AD301=16 | 17 g | 16 mm (0.629 in) | 187 lbs (unilateral) / 265 lbs (bilateral) | Piece |
| 17AD301=20 | 17 g | 20 mm (0.787 in) | 243 lbs (unilateral) / 353 lbs (bilateral) | Piece |
