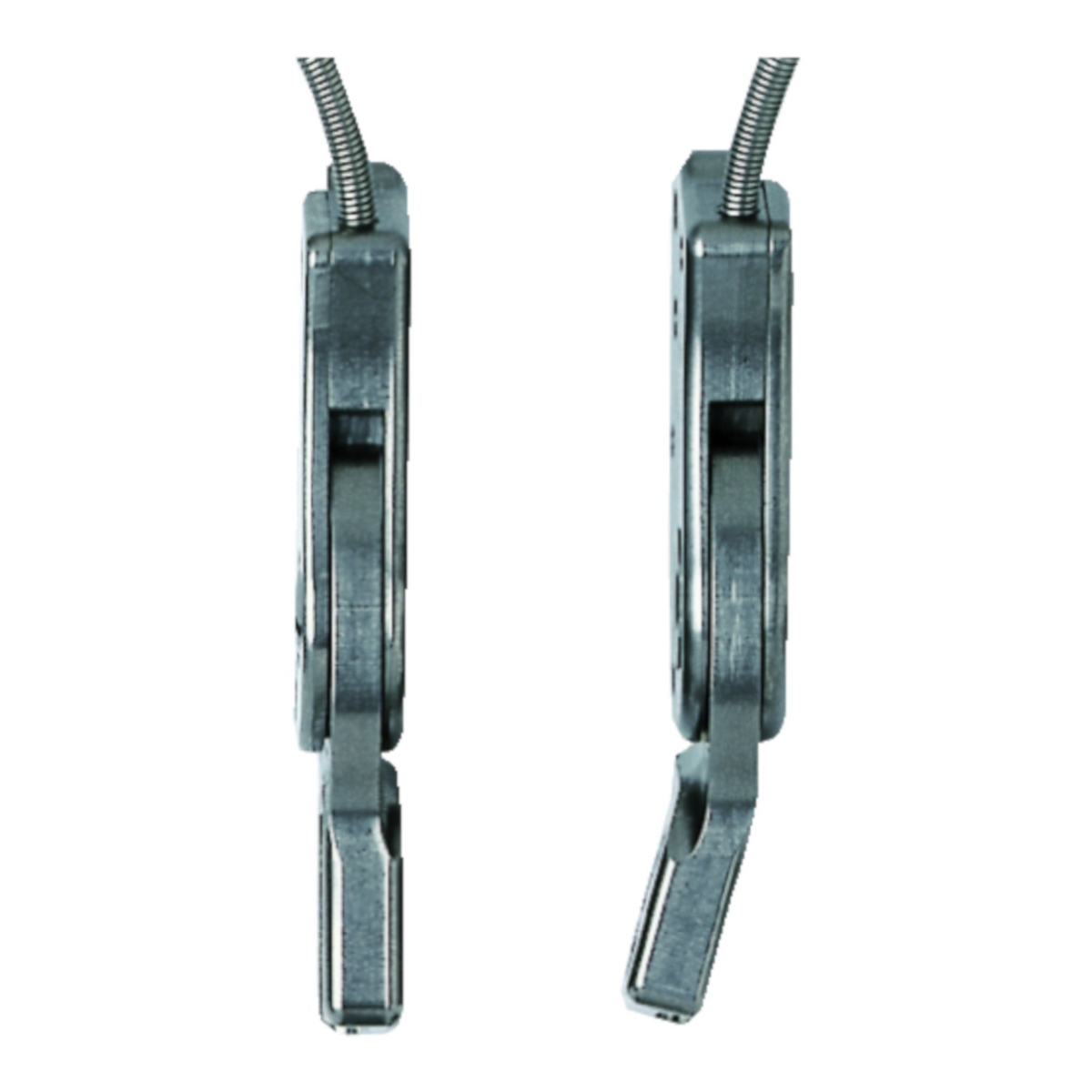

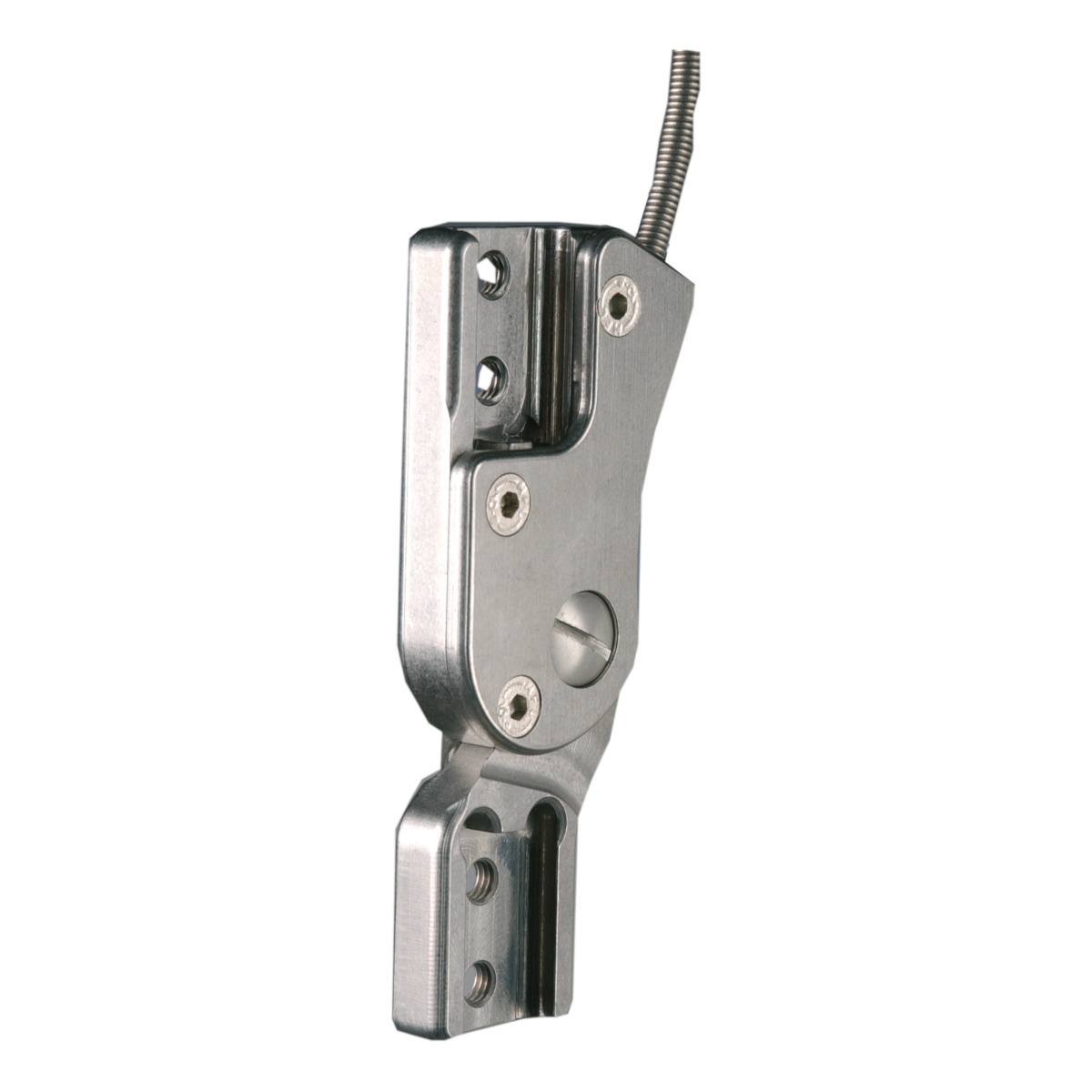

System Wedge Lock Knee Joint Titanium
Titanium Medial joint has contoured lower bar and straight upper bar, straight lateral joint with wedge lock and cable pull release
Titanium Medial joint has contoured lower bar and straight upper bar, straight lateral joint with wedge lock and cable pull release
Overview
| Article Number | 17B105=L16 | 17B105=L20 | 17B105=R16 | 17B105=R20 |
|---|---|---|---|---|
| Side | Left | Left | Right | Right |
| System Width | 16 mm (0.629 in) | 20 mm (0.787 in) | 16 mm (0.629 in) | 20 mm (0.787 in) |
| Upper Length from Joint Center | 45 mm | 45 mm | 45 mm | 45 mm |
| Lower Length from Joint Center | 41 mm | 41 mm | 41 mm | 41 mm |
| Material | Titanium | Titanium | Titanium | Titanium |
| Quantity | Pair | Pair | Pair | Pair |
