RGO Hip Joint System
Reimbursement
- Suggested HCPCS Coding
Base Code: L2036 (x2) or L2037 (x2); Pelvic Section: L2570, L2627, L2680 (x2), L2768 (x2), L2999 (pelvic rotation feature); Knee Section: L2415 (x2 or x4), L2395 (x2 or x4); Ankle Section Options: L2250 (x2 or x4), L2200 (x2 or x4), L2210 (x2 or x4), L2220 (x2 or x4); Additional Options: L2340 (Special Request, x2), L2820 (x2), L2830 (x2), L2492, L2780
Overview

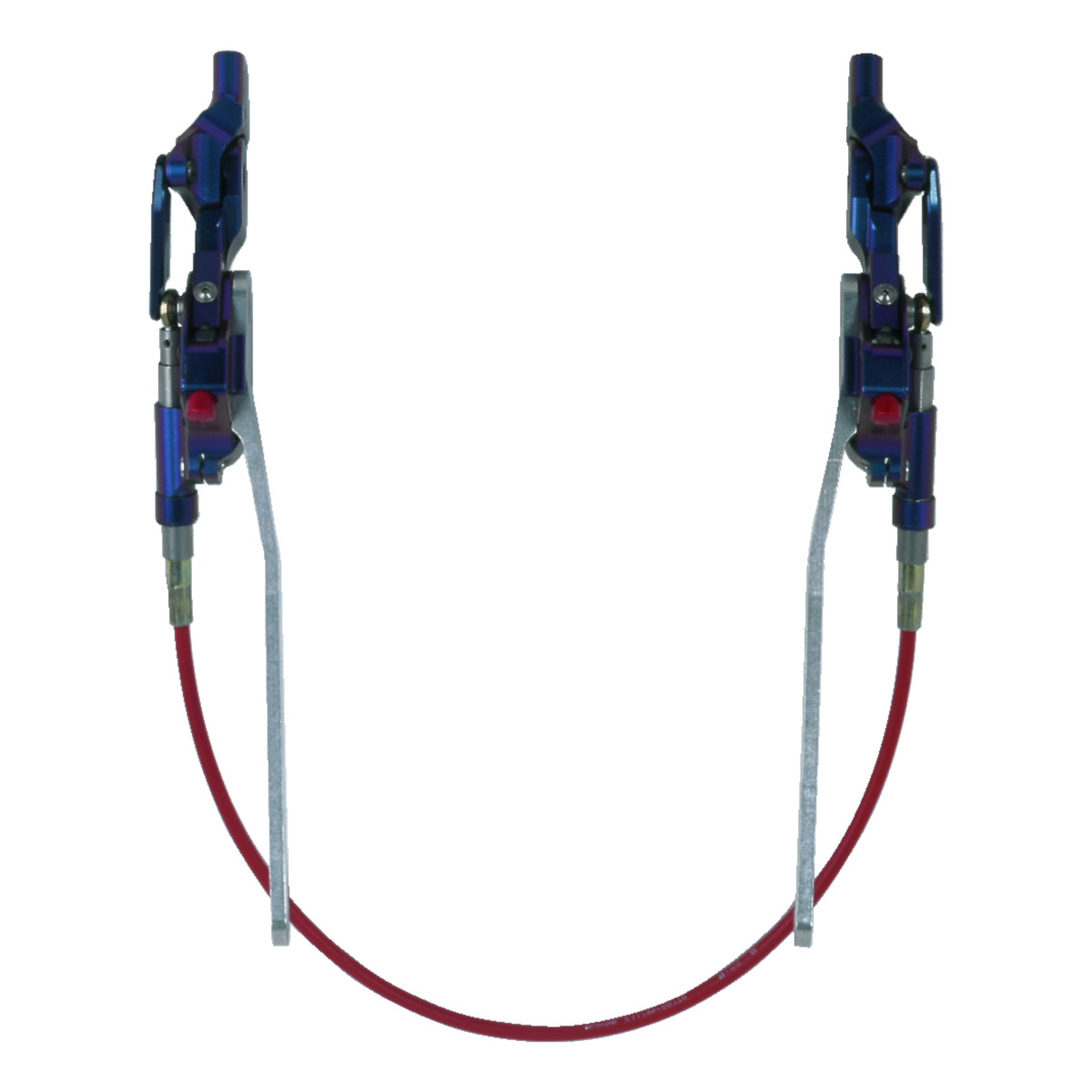

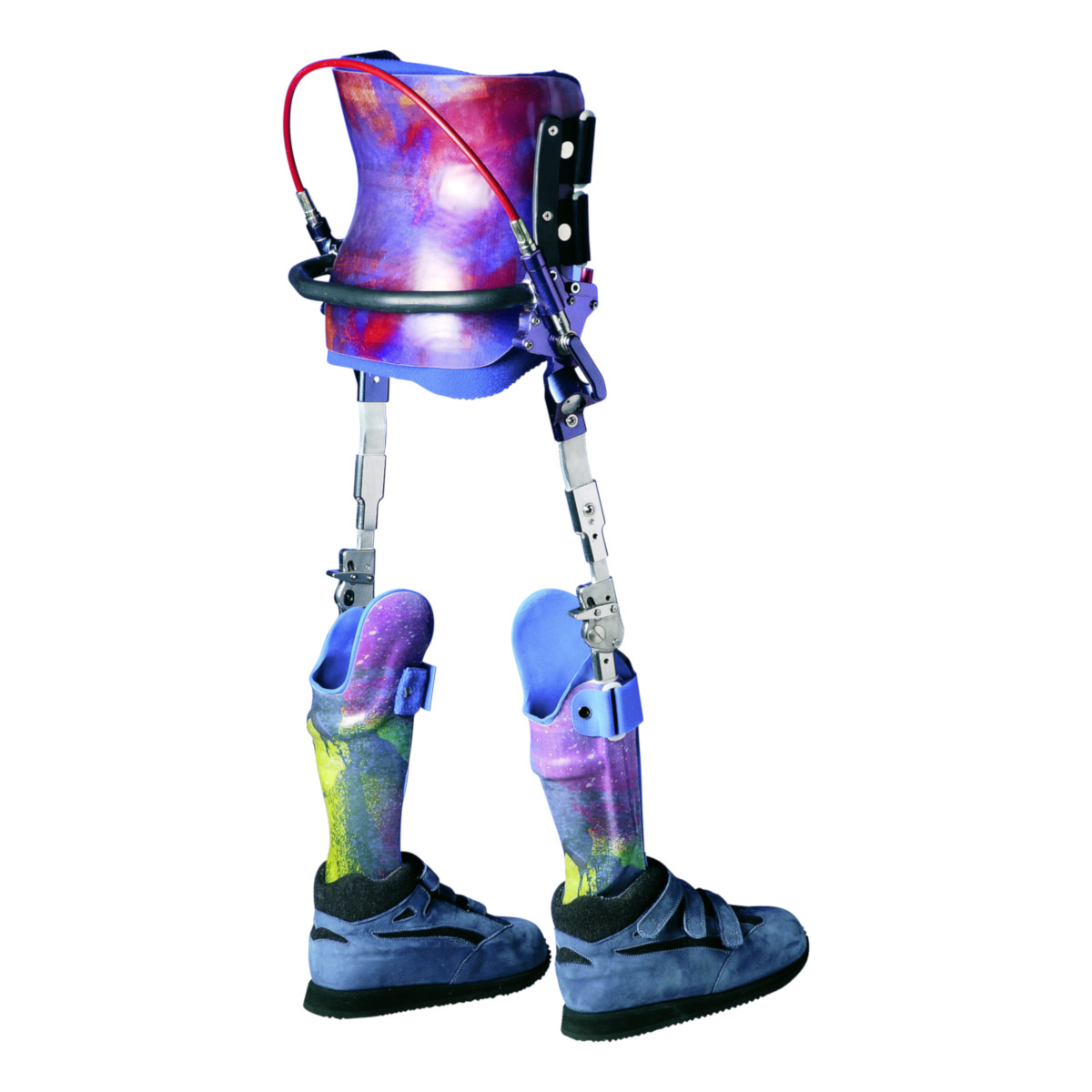

Special features of the Ottobock® RGO hip joint system
• Easy to use modular system.
• Replacing individual components allows "growing" with the user.
• Lightweight alloy pelvic tube with high torsional strength allows for modular connection of joints.
• The bi-axial system allows for a pelvic rotation of 15° in the orthosis without changing the walking direction.
• Smooth and maintenance-free force transmission during walking through the push-pull cable system.
• Sitting joint lock release with pre-release of the locking mechanism.
• Safety button for re-locking in case of accidental pre-release of the sitting joint.
• Choice of thermoplastic or laminate materials for the integration of an individually fabricated pelvic module.
• Torso bar is easily disassembled.
• Torso bar hip flexion adjusts up to 10°.
• Prefabricated lightweight alloy thigh bars with 0 mm, 5 mm and 10 mm offset available.
Please note that the pelvic tube is not included in the scope of delivery and therefore has to be ordered separately.
| Article number | 17H100=0 | 17H100=1 | 17H100=2 |
|---|---|---|---|
| Maximum Body Weight | 143 lbs (65 kg) | 143 lbs (65 kg) | 75 lbs (34 kg) |
| Pelvic Width | 340 - 380 mm (13.385 - 14.960 in) | 270 - 330 mm (10.629 - 12.992 in) | 200 - 260 mm (7.874 - 10.236 in) |
| Age | 9 Years and Up | 9 Years and Up | 4 - 8 Years |
| Quantity | Set | Set | Set |
