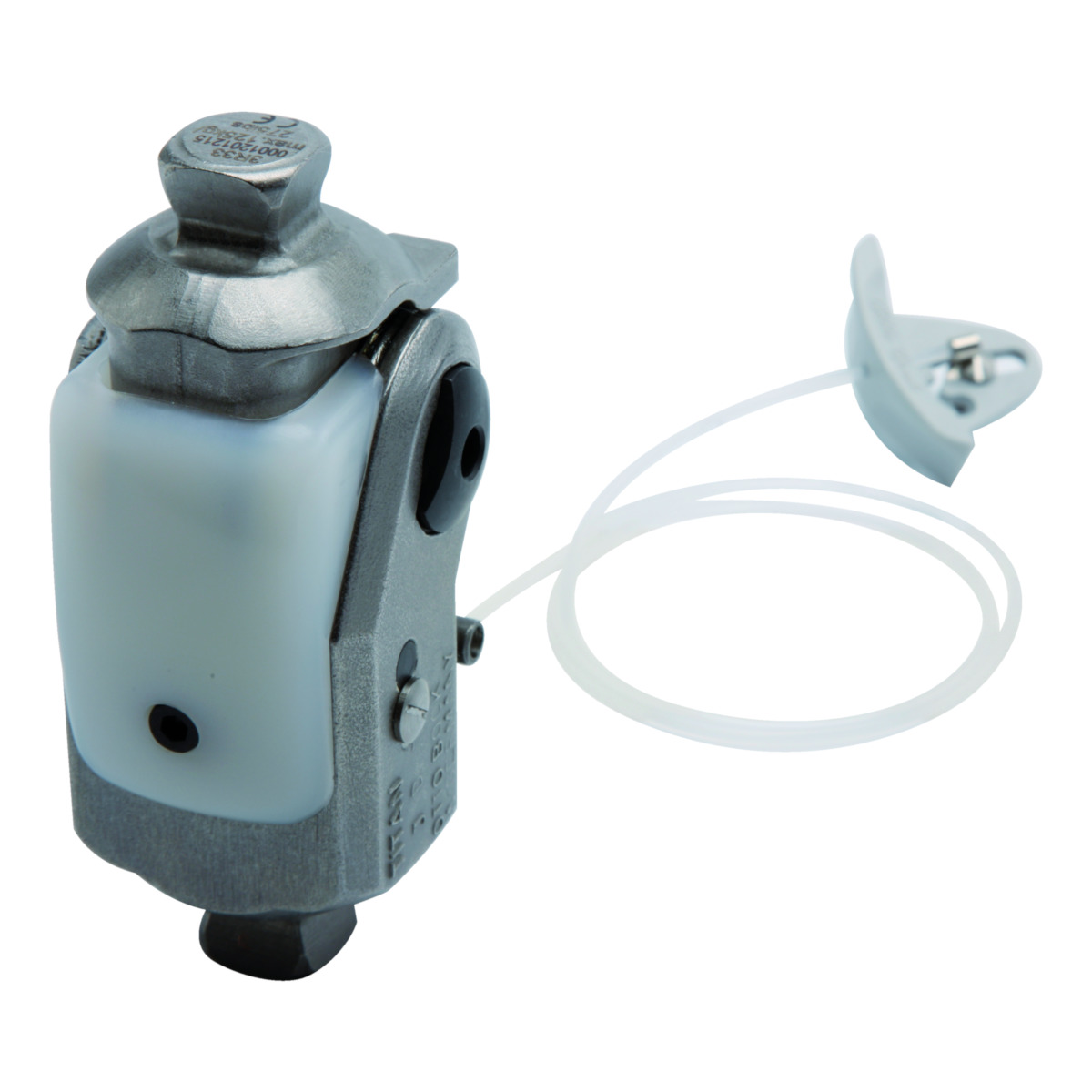

Single Axis Knee Joint, Lock, Titan.
Reimbursement
- Suggested HCPCS Coding
L5811, L5850
Overview
The upper and lower joint sections are connected through the knee axis by bushings and ball bearings. The adjustable lock secures the joint in extension. The lock is released using the lock cable. Locking occurs automatically at full extension with assistance from the extension assist spring.
Specifications
| Activity Level | K1 |
| Maximum Body Weight | 275 lbs (125 kg) |
| Material | Titanium |
| Proximal Connection | Pyramid or Threaded Adapter |
| Distal Connection | Pyramid Adapter |
| Maximum Knee Flexion Angle | 120 degrees |
| Knee Center to Proximal Connection | 39 mm |
| Product Weight | 530 g |
| Build Height | 79 mm |
| Distal Build Height | 55 mm |
| Proximal Build Height | 24 mm |
