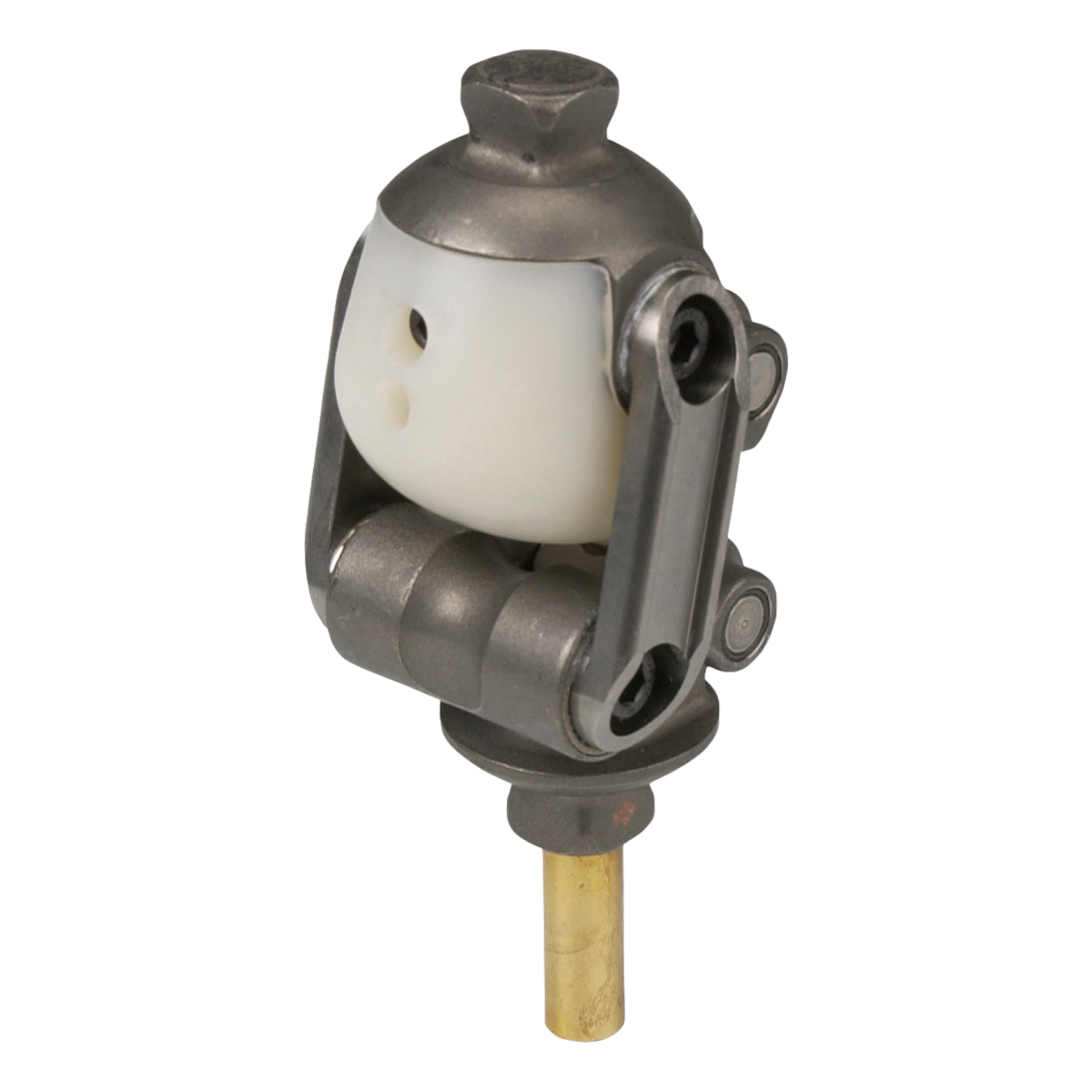

Polycntr. Knee Joint, Titan.
Reimbursement
- Suggested HCPCS Coding
L5611, L5850
Overview
Upper and lower joint sections are connected by linkage bars. Stance phase stability is achieved through polycentric kinematics (instantaneous centre of rotation is set by adjusting the stop).
Swing phase control is adjustable using axis friction and the extension assist spring.
Specifications
| Activity Level | K1, K2 |
| Maximum Body Weight | 220 lbs (100 kg) |
| Material | Titanium |
| Proximal Connection | Pyramid or Threaded Adapter |
| Distal Connection | Pyramid Adapter |
| Maximum Knee Flexion Angle | 110 degrees |
| Knee Center to Proximal Connection | 30 mm |
| Product Weight | 445 g |
| Distal Build Height | 62 mm |
| Proximal Build Height | 15 mm |
