Lightweight Knee Joint, Lock
Reimbursement
- Suggested HCPCS Coding
L5811
Overview

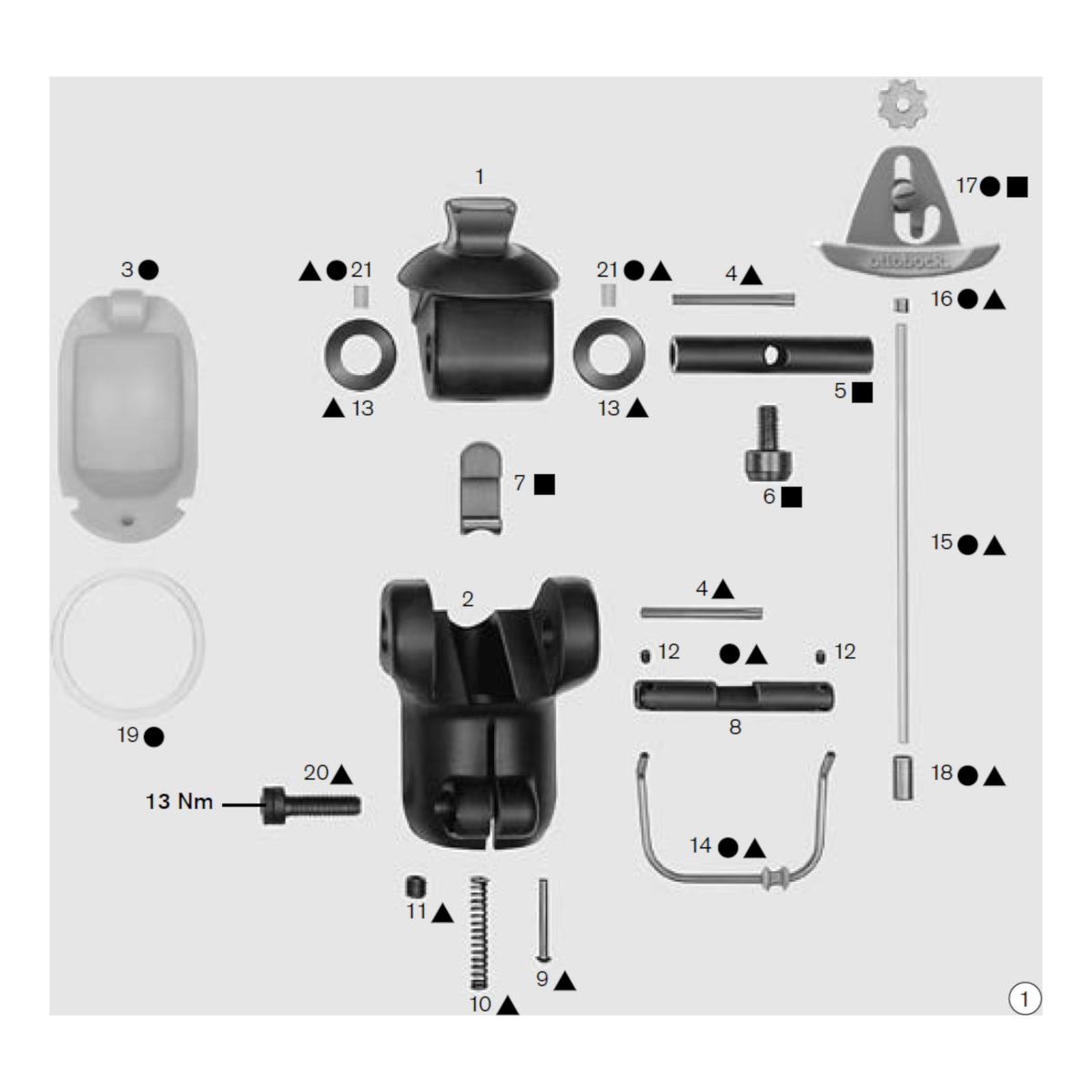

The upper joint section with pyramid adapter and lower joint section with tube clamp are connected through an axis. The adjustable manual lock in the lower joint section secures the joint in the extension position. The lock is released using the lock cable.
Specifications
| Activity Level | K1 |
| Maximum Body Weight | 220 lbs (100 kg) |
| Material | Aluminum |
| Proximal Connection | Pyramid or Threaded Adapter |
| Distal Connection | Tube Clamp (30 mm diameter) |
| Maximum Knee Flexion Angle | 155 degrees |
| Knee Center to Proximal Connection | 34 mm |
| System Height | 23 mm |
| Product Weight | 290 g |
| Build Height | 74 mm |
| Distal Build Height | 55 mm |
| Proximal Build Height | 19 mm |
