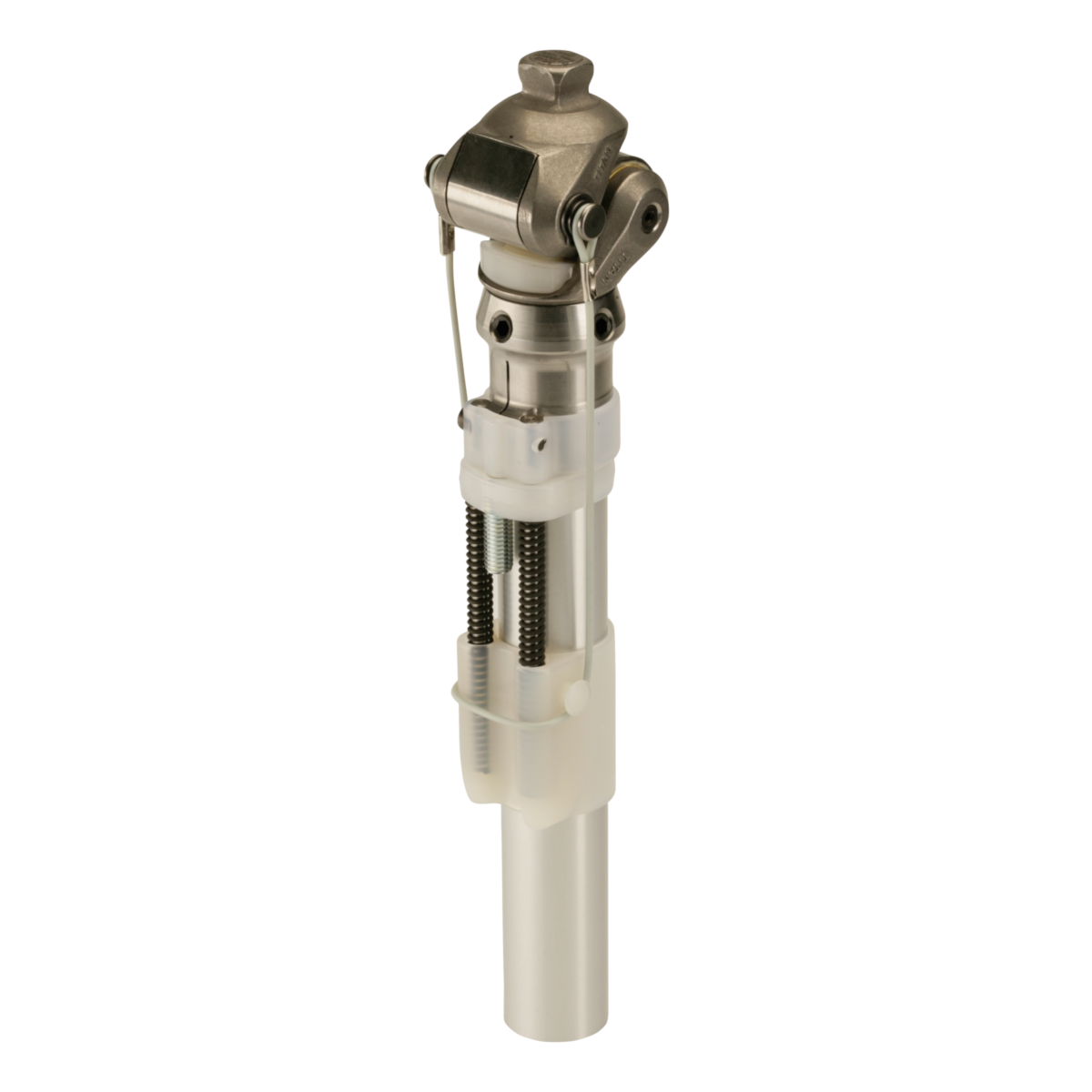

Single Axis Knee Joint, Brake Titan.
Reimbursement
- Suggested HCPCS Coding
L5812, L5850
Overview
The swing block is connected to the upper joint section through the swing axis and with the lower joint section through the knee axis and acts as a load-dependent brake. This together with proper knee alignment secures the stance phase. To control the swing phase, the axis friction and the spring force of the extension assist are adjustable.
Specifications
| Activity Level | K1, K2 |
| Maximum Body Weight | 220 lbs (100 kg) |
| Material | Titanium |
| Proximal Connection | Pyramid or Threaded Adapter |
| Distal Connection | Pyramid Adapter |
| Maximum Knee Flexion Angle | 150 degrees |
| Knee Center to Proximal Connection | 40 mm |
| Product Weight | 360 g |
| Build Height | 45 mm |
| Distal Build Height | 19 mm |
| Proximal Build Height | 26 mm |
