Children's knee joint
Reimbursement
- Suggested HCPCS Coding
L5814
Overview

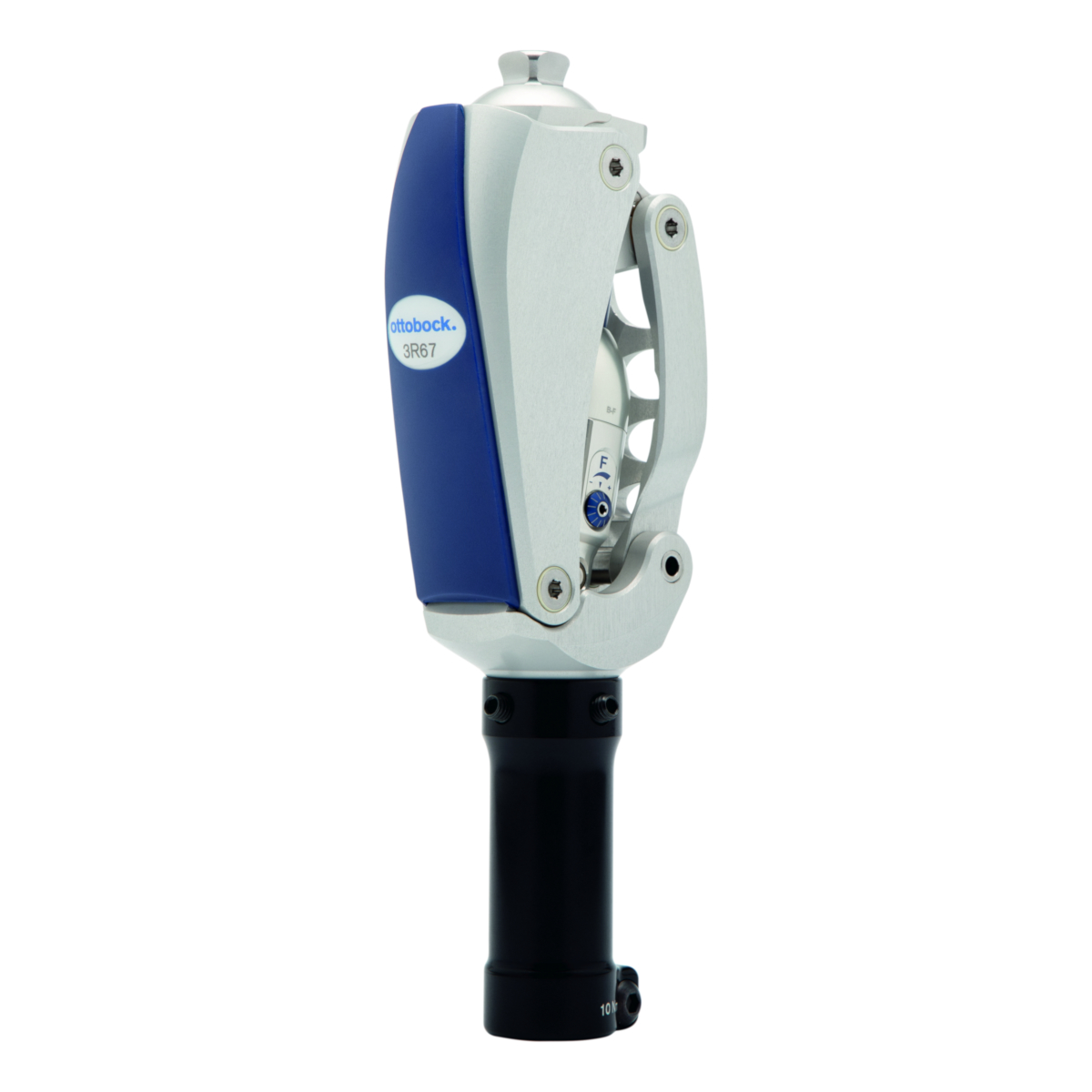

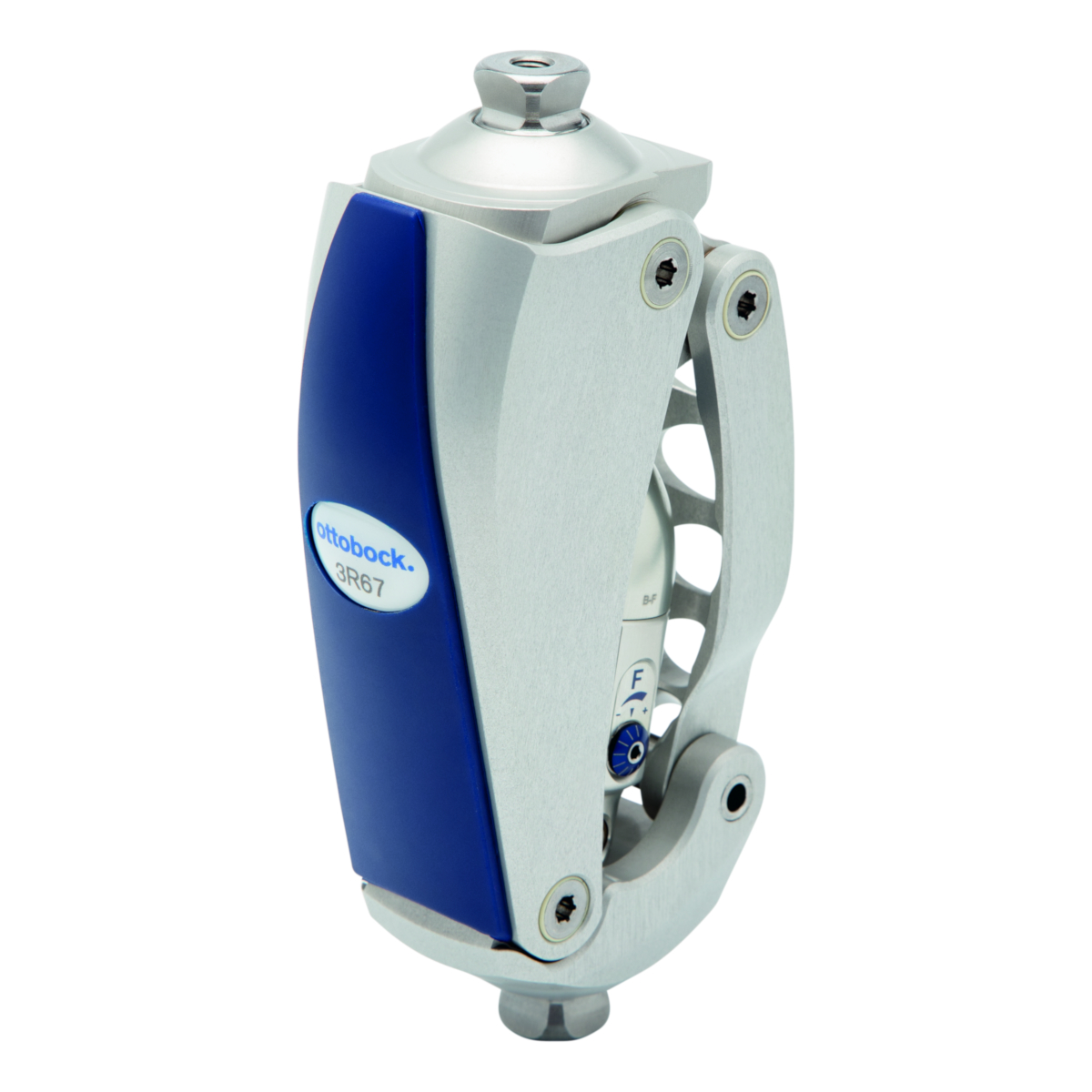

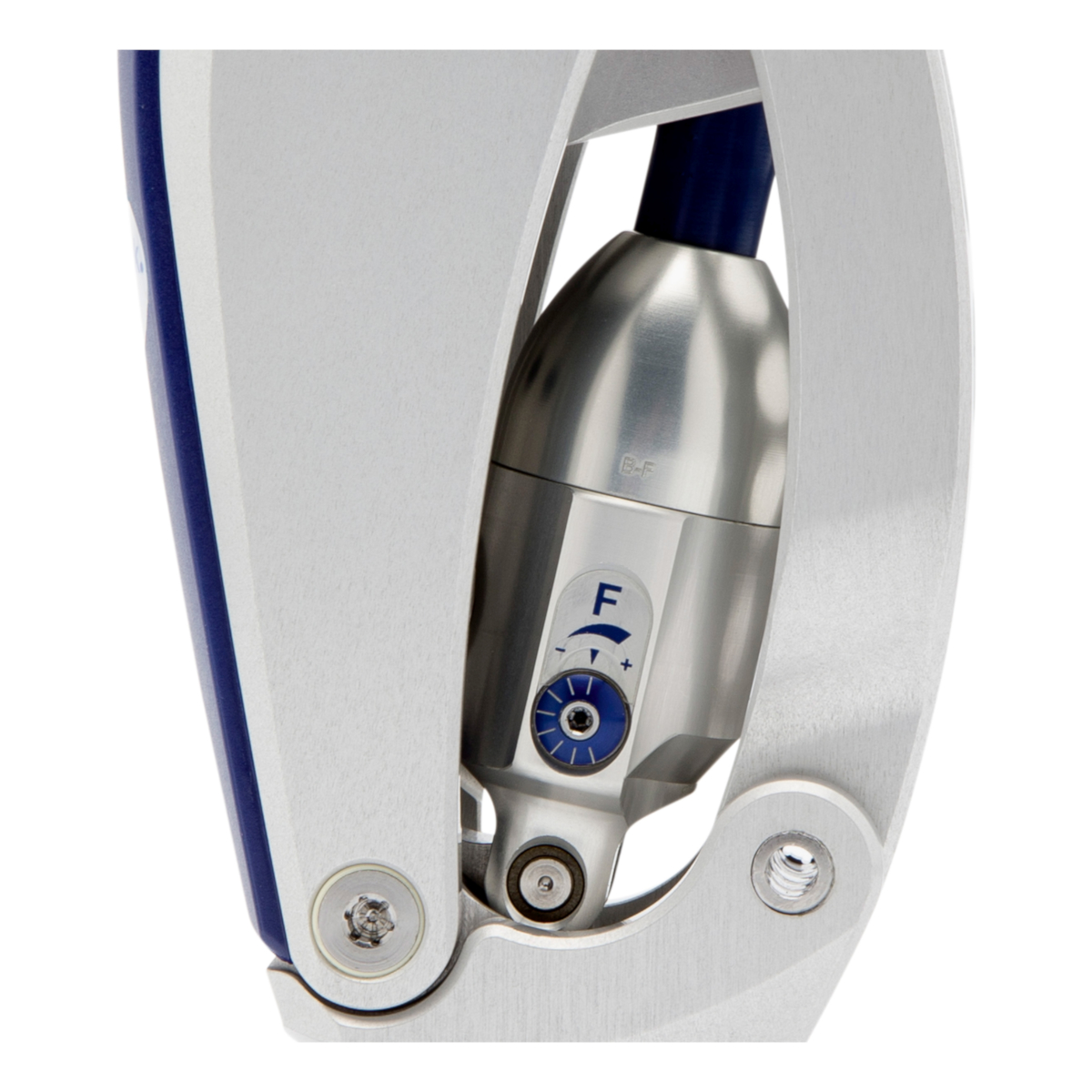

Based on the highly efficient swing phase control of the proven 3R60 product family, the 3R67 kids knee joint was especially adapted for young users. The joint’s hydraulic unit is equipped with a low viscosity oil – well-suited for children’s fittings. It supports smooth movements during the swing phase. Specifically designed for young users the knee not only offers a high stance phase stability, but also supports different walking speeds. With its low weight of only 510 g it grants children a great amount of freedom to move.
Scope of Delivery:
- 3R67 Knee
- 4R79 Tube clamp adapter
- 4Z59=5.5X6 Covering cap (bumper)
- 506G3=M6X12 Set screw
- 501S42=M6X18 Set screw
- 710H10=2X3 Allen wrench
Specifications
| Maximum Body Weight | 99 lbs (45 kg) |
| Material | Aluminum |
| Proximal Connection | Pyramid or Threaded Adapter |
| Distal Connection | Pyramid Adapter |
| Maximum Knee Flexion Angle | 150 degrees |
| Product Weight | 510 g |
| Build Height | 129 mm |
| Distal Build Height | 114 mm |
| Proximal Build Height | 15 mm |
