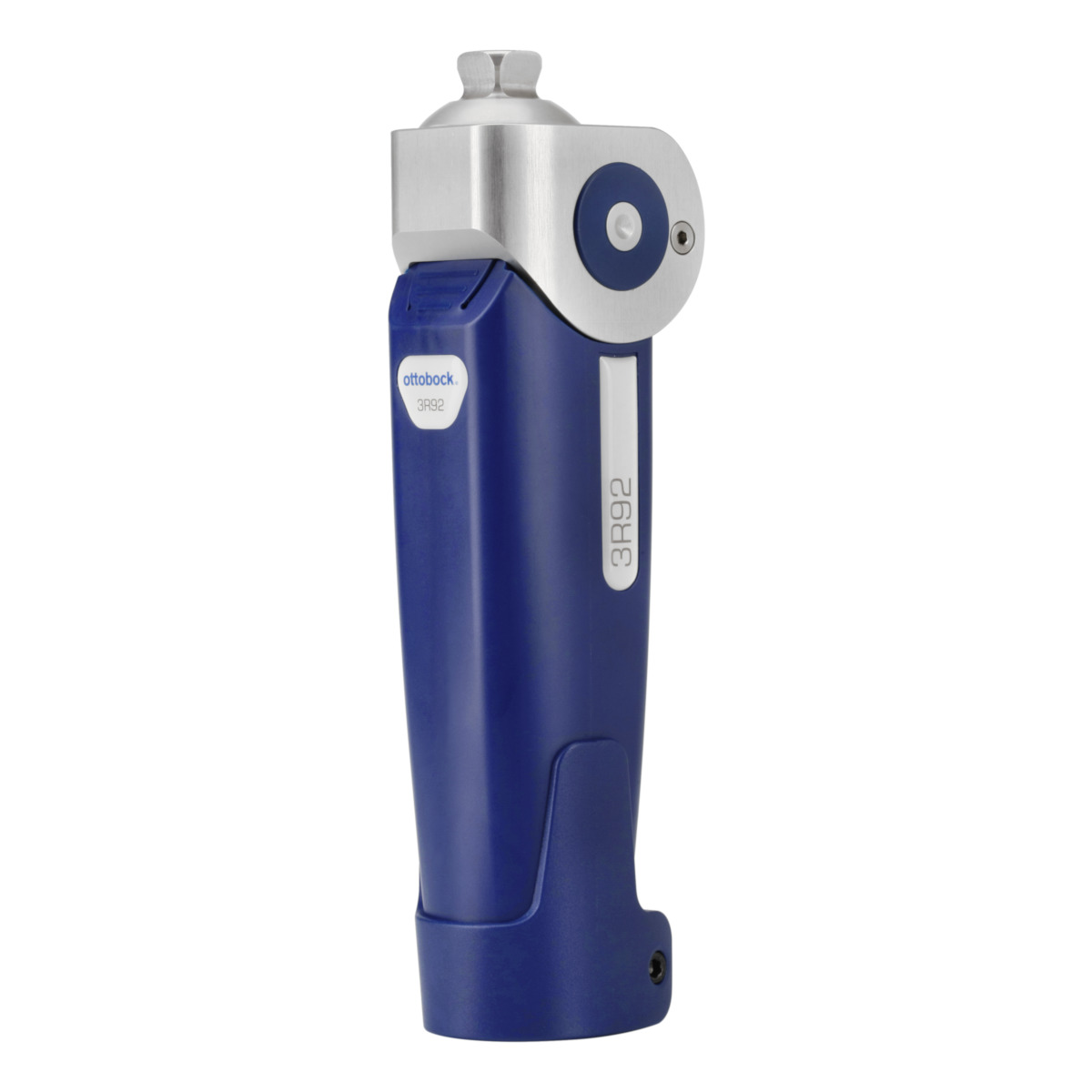

Comfort-Brake Knee (pneumatic system)

Same brake mechanism as the 3R90. The lower joint section is formed as a pneumatic cylinder. To control the swing phase, flexion and swing phase damping of the progressively acting dual-chamber pneumatic system are individually adjustable.

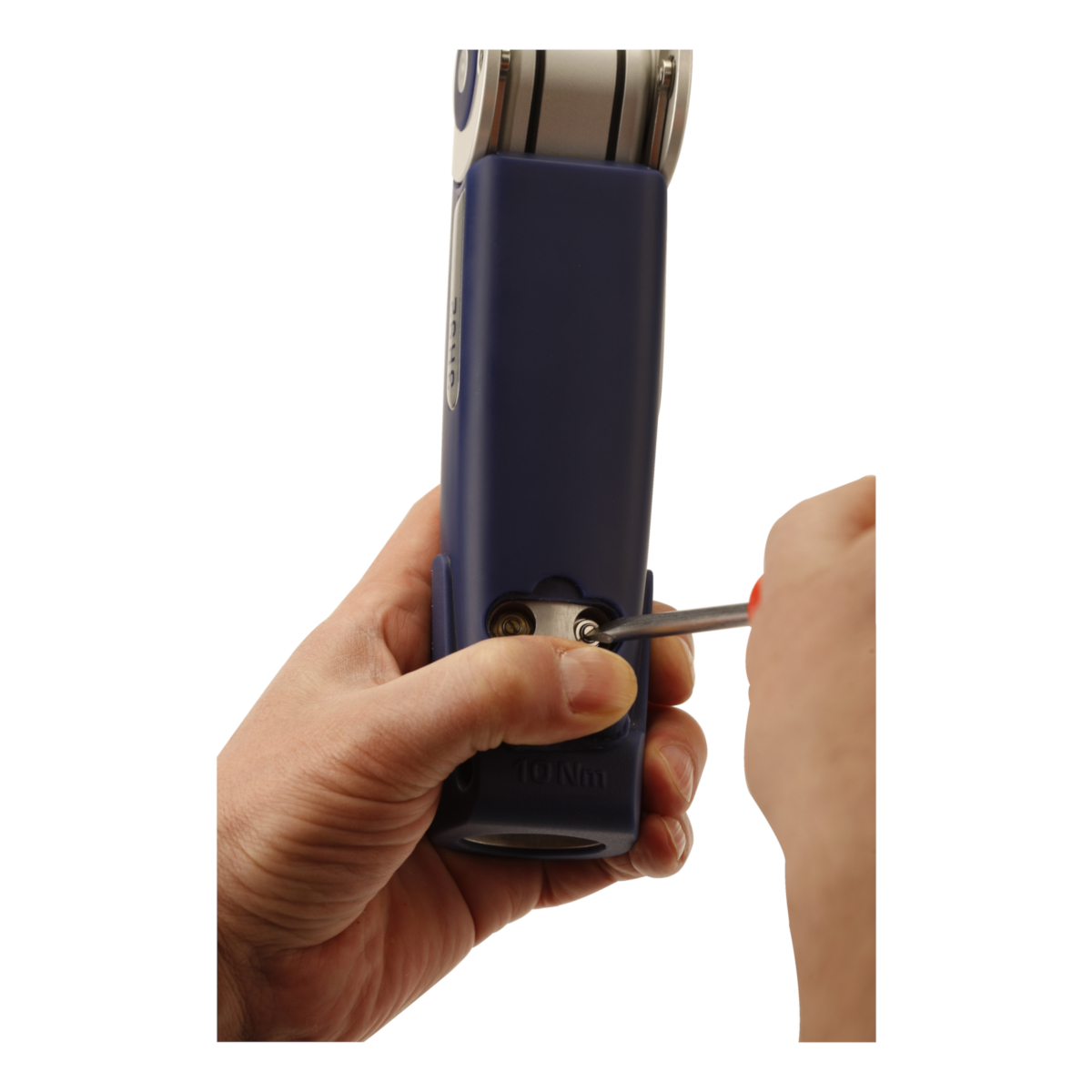

Extension and flexion damping of the integrated dual-chamber pneumatics in the 3R92 can be regulated with a screwdriver in the accustomed manner.

When fitting users with mobility grade 1, the following applies: these knee joints with friction brake are contraindicated for unsure patients who are unable to systematically use the braking mechanism during the gait cycle i.e. to lock the knee joint at heel contact and unlock it when the forefoot is loaded.
