Aqua Knee

Aqualine prosthesis
Aqualine prosthesis

Reimbursement

  • L5826, L5925

All documents for reimbursementMore about our reimbursement service

Overview

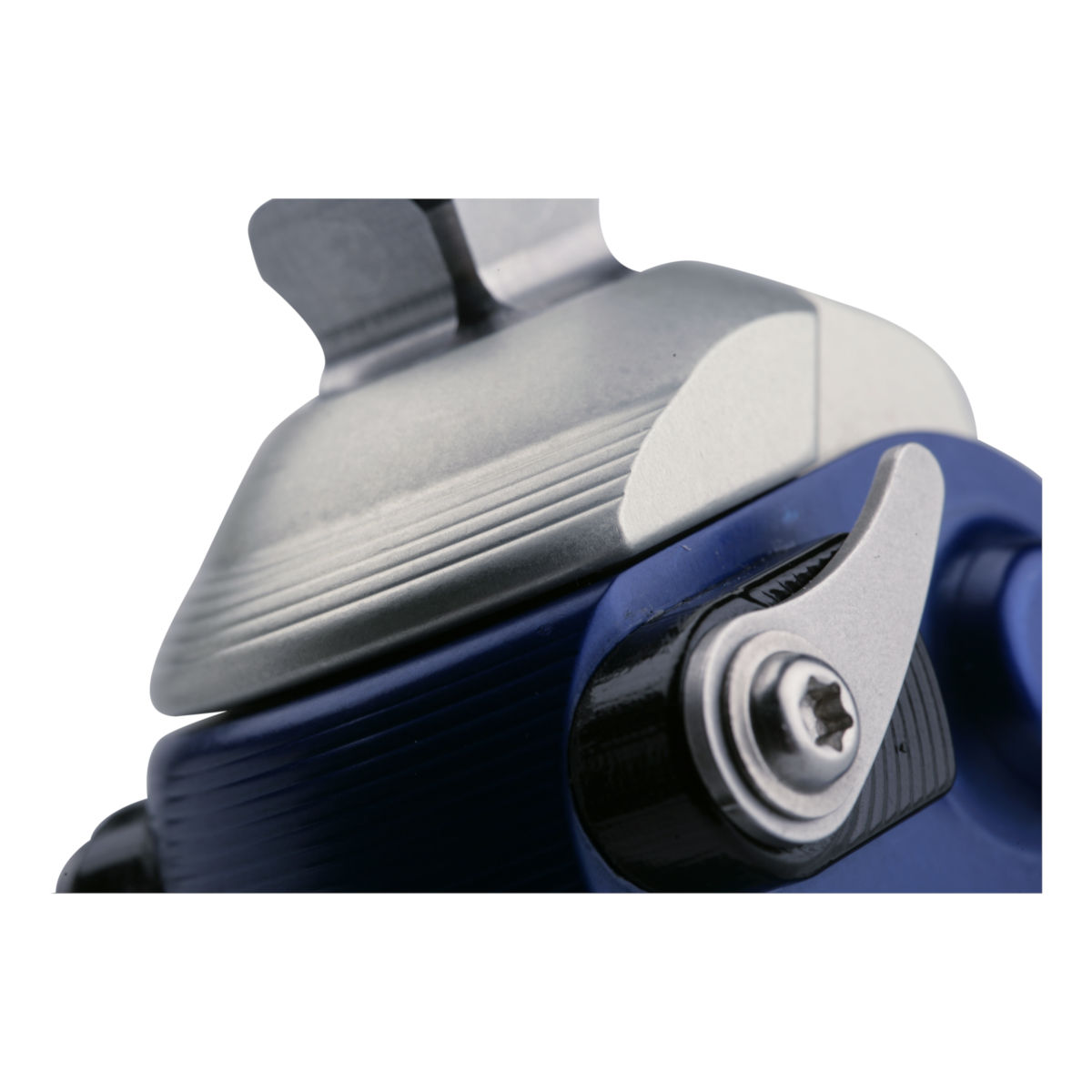

The Aqua-Knee is water-resistant.

It is small, light and equipped with a miniature hydraulic unit and a lock. Less active and unsure prosthesis users can activate the lock to achieve greater stability during the stance phase.

When used unlocked, dynamic flexion and extension resistances can be adjusted separately from one another for swing phase control appropriate to the particular needs of the amputee.

Flood holes to the right and left on the joint body make it possible for the knee joint to flood when setting foot in water and facilitate cleaning the joint.

Product Features

  • Waterproof
  • Monocentric
  • Integrated lock for additional stance phase control
  • Lightweight design
  • Miniature hydraulics based on 3R95 technology
  • Individually adjustable swing phase

Specifications

Maximum Body Weight330 lbs (150 kg)
MaterialAluminum
Proximal ConnectionPyramid or Threaded Adapter
Distal ConnectionPyramid Adapter
Maximum Knee Flexion Angle135 degrees
Product Weight400 g
Build Height98 mm
Distal Build Height74 mm
Proximal Build Height24 mm
