Varos

‌

Overview

Benefits for User:

Easy user adjustability for limb volume variations (Boa Fit Dial System)
Low product weight thanks to lightweight carbon composite strut construction
High wearing comfort utilizing more flexible material than a standard socket
Secure hold in the socket (magnetic distal liner connection, good static friction properties of the specific Varos liner)

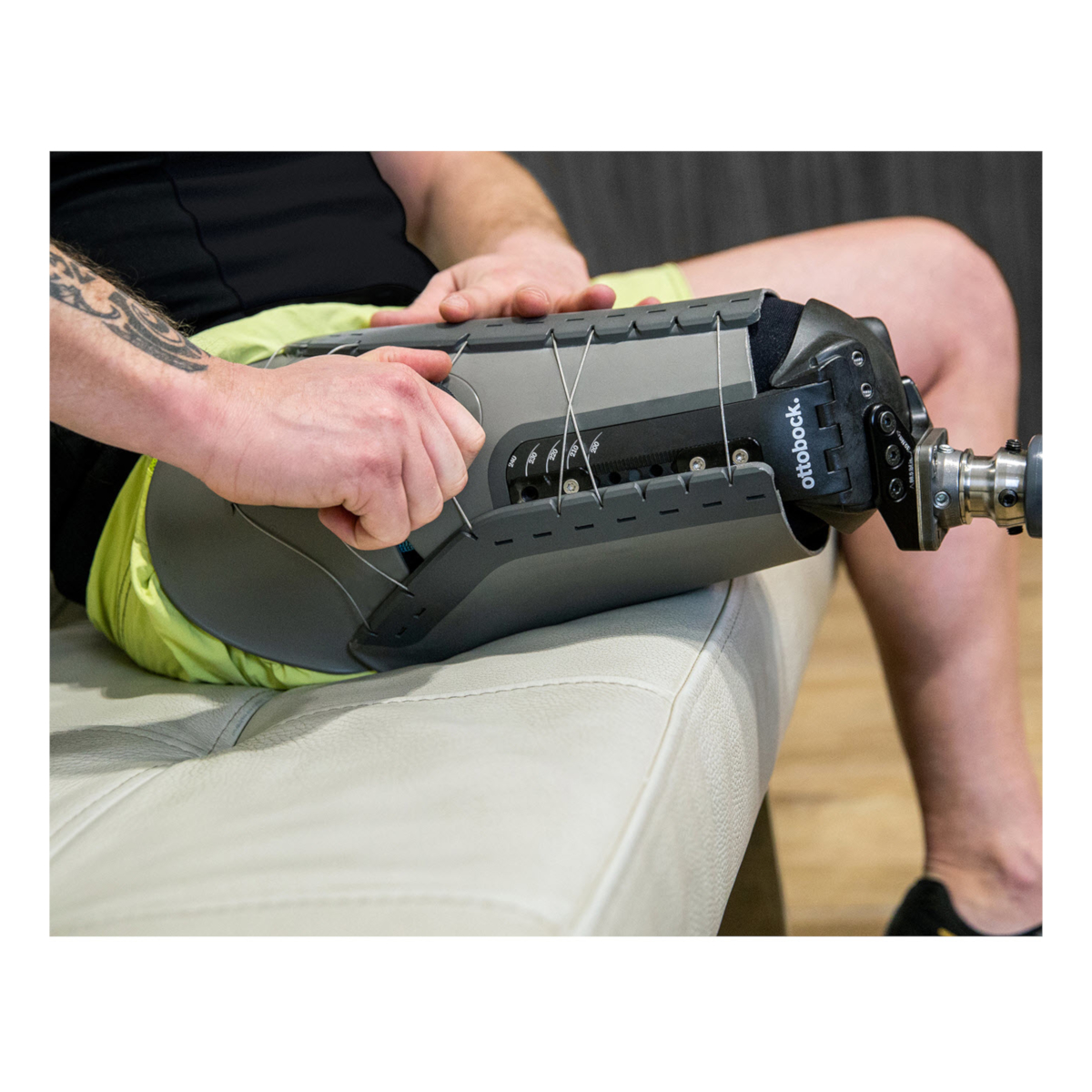

Easy donning and doffing even when seated

Benefits for CPO:

Custom made to the patient specifications with easy adjustments and modular structure
Thermoformable material for patient specific customizations
Less effort for socket fit adaptations
Easy alignment optimization utilizing a spherical distal adapter allowing for a hip flexion compensation up to 15°

Varos sizing

	VAROS S<br>(Small)<br>5A60=(L/R)-S	Varos SC<br>(Small Conical)<br>5A60=(L/R)-SC	Varos M<br>(Medium)<br>5A60=(L/R)-M	Varos MC<br>(Medium Conical)<br>5A60=(L/R)-MC	Varos L<br>(Large)<br>5A60=(L/R)-L
Proximal residual limb circumference (mm)	410 – 510	460 - 580	460- 580	520 - 650	520 - 650
Distal residual limb circumference (mm)	320 - 390	320 - 390	350 - 440	350 - 440	400 - 490
Residual limb length (mm)	200 - 320	200 - 320	200 - 320	200 - 320	200 - 320
Adjustable socket length (mm)	200 - 320	200 - 320	200 - 320	200 - 320	200 - 320
Weight limit (mm)	220 lbs (100kg)	220 lbs (100kg)	220 lbs (100kg)	220 lbs (100kg)	275 lbs (125kg)

*Socket length of Varos is defined as distance between medial rim of socket (lowest point) to bottom of socket, measured in direction of longitudinal axis of the socket

Choose correct lateral beam style

Distal circumference < 410mm	Distal circumference > 410mm
Straight lateral beam	Bended lateral beam
