Shuttle Lock
Overview

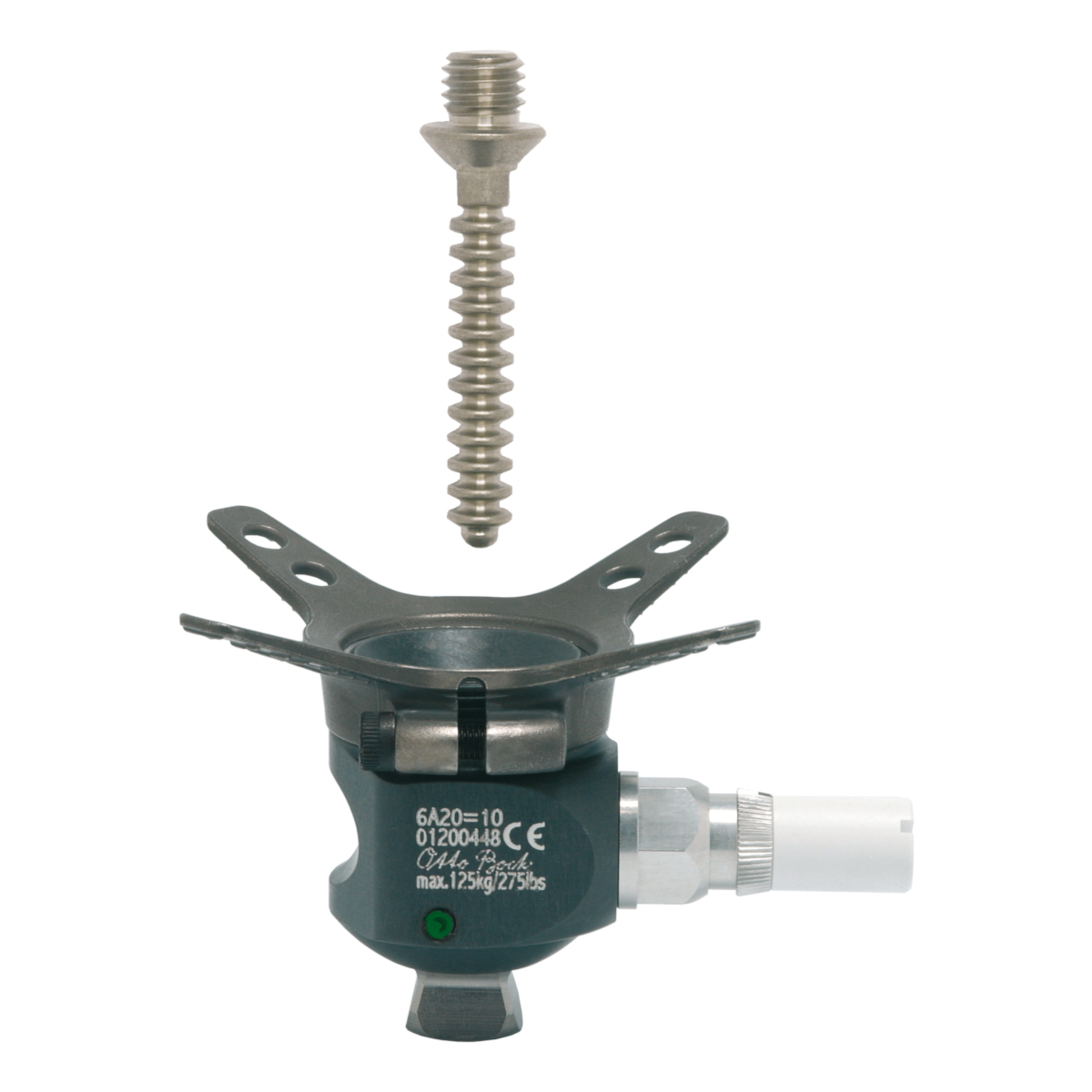

This shuttle lock with pyramid threads into the socket lamination anchor provided with the kit. The infinitely variable locking mechanism, which employs the serrated 6Y13=1 Pin, offers a secure connection between the liner and prosthesis. It uses an easy to release 6A52 ratchet unit.
| Suspension type | Pin Locking/Lanyard |
|---|---|
| Amputation level | TransTibial (TT), TransFemoral (TF) |
| User Weight Capacity | 275 lbs |
| System Height | 2 in |
| Proximal Connection | 4-Prong socket adapter |
| Distal Connection | Pyramid |
| Pin Style | Serrated |
| Suggested Coding | L-5671 |
| Build Height | 43 mm |
