Overview
Automatically levelling graticule laser with vertical and horizontal laser line. The laser lines can be switched individually and together form crossing lines. In addition, the laser is equipped with a laser spot. The laser beam is easily visible in daylight and can be mounted on a stand. In addition, the pendulum system can be locked for transportation.

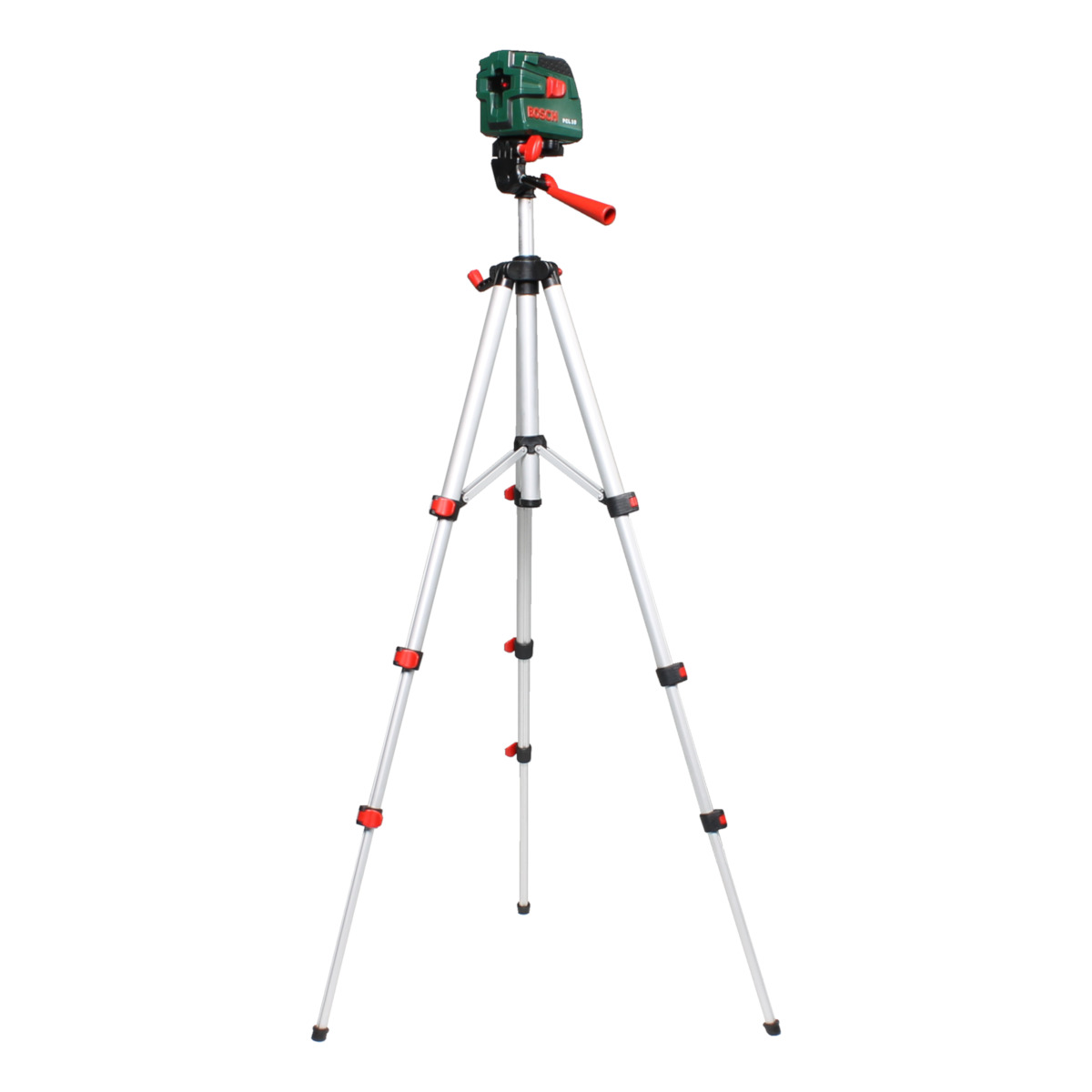

Scope of delivery includes: 1 graticule laser, 1 tripod stand, 1 protective pouch and 3 5V LR06 Mignon (AA) batteries.
Specifications
| Dimensions LxWxH | 110 x 60 x 95 mm |
| Power supply | 3 x Mignon (AA) |
| Wavelength | 635 (Laser class 2) nm |
| Output power | < 1 mW |
| Leveling speed | < 5 sec. |
| Automatic leveling range | 5 degrees |
| Connection thread | W 1/4" |
| Laser light color | Red |
| Projection range of laser light | max. 10 m |
| Weight (with batteries) | 460 g |
