Overview

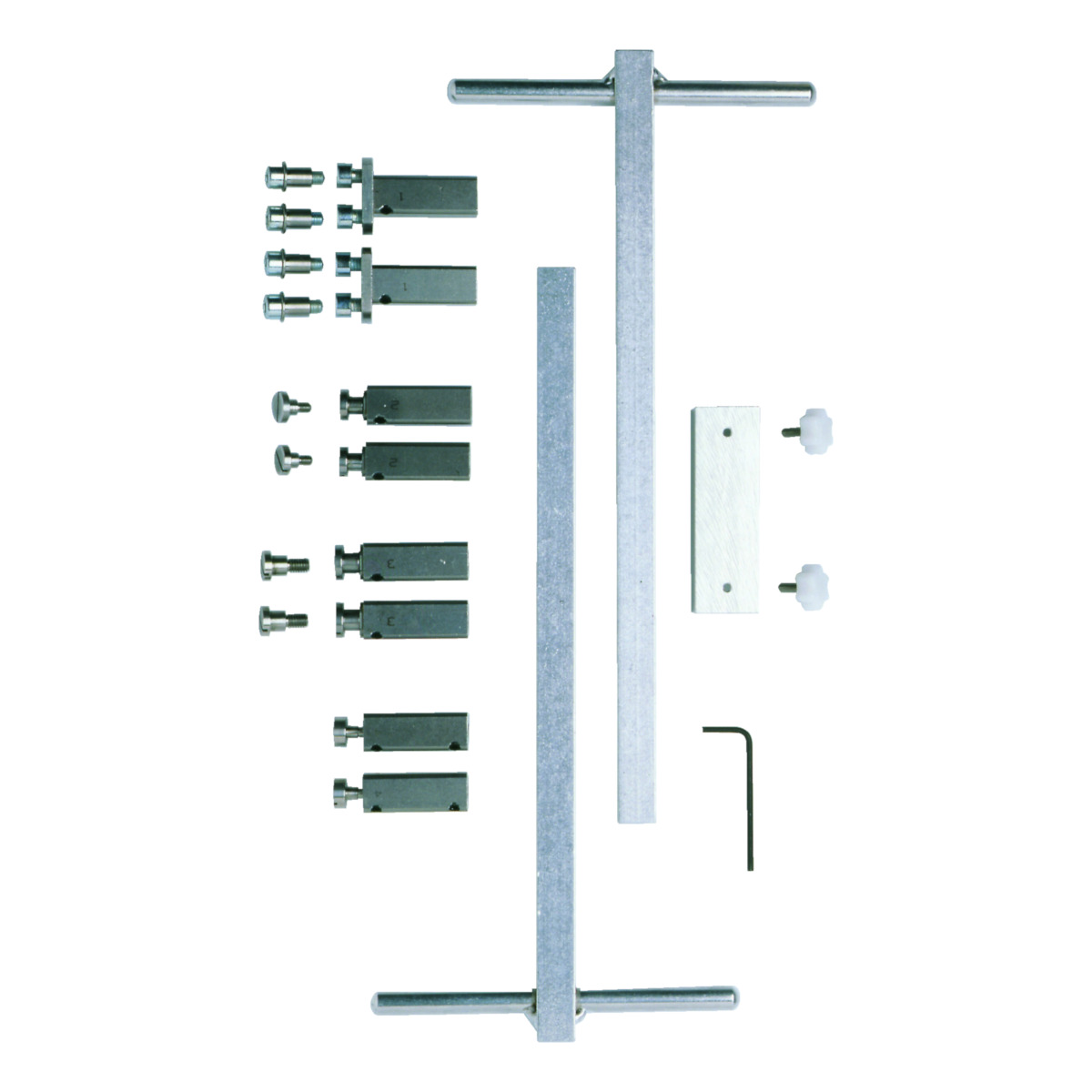

To be used for as an aid for leg orthosis fabrication, suitable for the "structural orthosis fabrication" technique based on a drawing and for the lamination resin and vacuum-forming techniques based on a plaster cast
(a) 743Y55 alignment axis – Light metal –
(b) 743Y70=80 parallel adapter, width 80 mm (standard) or 743Y70=50 parallel adapter, width 50 mm (accessory) – Light metal –
(c) 743Y56=1 alignment adapter, for gear segment bars – Stainless steel –
(d) 743Y56=2 alignment adapter with 12x7.6 pin flange – Stainless steel – and 501A1=12x7xM4 shoulder screw
(e) 743Y56=3 alignment adapter with 14x9.6 pin flange – Stainless steel – and 501A1=14x9xM6 shoulder screw
(f) ?743Y56=4 alignment adapter with M4 and M6 thread retainer? and 501A12=3 shoulder screw – Stainless steel –
(g) 743Y72 Allen screw with collar
(h) 501A1=12x6xM4 shoulder screw for 743Y56=2 alignment adapter
(i) 501A1=12x8xM6 size 3 shoulder screw for alignment adapter
(j) 709S10=2.5 Allen key
(k) Shoulder screws: 30Y89, 30Y248=20, 30Y248=14-16, 30Y248=12
The table that follows provides you with an overview of the adjustment adapters and shoulder screws for the joints listed in the table, to be used as an aid for the construction of lower limb orthoses.
| Article no. | Joint size | Adjustment adapter (size) | Shoulder screw |
|---|---|---|---|
| 17B105 | =16 | 2 | 501A1=10x7xM4 |
| 17B105 | =20 | 3 | 501A1=12x8xM6 |
| 17B106 | =16 | 2 | 501A1=10x7xM4 |
| 17B106 | =20 | 3 | 501A1=12x8xM6 |
| 17B20 | =16, =20 | 3 | 501A1=14x9xM6 |
| 17B21 | =16, =20 | 3 | 501A1=14x9xM6 |
| 17B23 | =16, =20 | 3 | 501A1=14x9xM6 |
| 17B26 | =16, =20 | 4 | 501A12=3 |
| 17B3 | =16, =20 | 4 | 501A12=3 |
| 17B33 | =16, =20 | 3 | 501A1=14x9xM6 |
| 17B43 | =16, =20 | 4 | 501A12=3 |
| 17B44 | =16, =20 | 4 | 501A12=3 |
| 17B45 | =16, =20 | 3 | 501A1=14x9xM6 |
| 17B46 | =16, =20 | 4 | 501A12=3 |
| 17B47 | =16, =20 | 4 | 501A12=3 |
| 17B53 | =16 | 2 | 501A1=12x7xM4 |
| 17B53 | =20 | 3 | 501A1=14x9xM6 |
| 17B54 | =16 | 2 | 501A1=12x7xM4 |
| 17B54 | =20 | 3 | 501A1=14x9xM6 |
| 17B57 | =16 | 2 | 501A1=12x7xM4 |
| 17B57 | =20 | 3 | 501A1=14x9xM6 |
| 17B59 | =16 | 2 | 501A1=12x7xM4 |
| 17B59 | =20 | 3 | 501A1=14x9xM6 |
| 17B62 | =16 | 2 | 501A1=12x7xM4 |
| 17B62 | =20 | 3 | 501A1=14x9xM6 |
| 17B63 | =16 | 2 | 501A1=12x7xM4 |
| 17B63 | =20 | 3 | 501A1=14x9xM6 |
| 17B71 | =16 =20 | 4 | 501A12=3 |
| 17B91 | =16, =20 | 3 | 501A1=14x9xM6 |
| 17B92 | =16, =20 | 3 | 501A1=14x9xM6 |
| 17B95 | =16 | 2 | 501A1=12x6xM4 |
| 17B95 | =20 | 3 | 501A1=12x8xM6 |
| 17B96 | =16 | 2 | 501A1=12x6xM4 |
| 17B96 | =20 | 3 | 501A1=12x8xM6 |
| 17B98 | =16 | 2 | 501A1=12x7xM4 |
| 17B98 | =20 | 3 | 501A1=14x9xM6 |
| 17F24 | =5, =4, =2 | 2 | 501A1=12x7xM4 |
| 17F34 | =6, =5 | 2 | 501A1=12x6xM4 |
| 17F46 | =6, =5 | 2 | 501A1=12x6xM4 |
| 17F47 | =6, =5 | 2 | 501A1=12x6xM4 |
| 17F53 | =6, =5 | 2 | 501A1=12x6xM4 |
| 17F63 | =6, =5, =4 | 2 | 501A1=12x6xM4 |
| 17F64 | =6, =5, =4 | 2 | 501A1=12x6xM4 |
| 17F65 | =6, =5 | 2 | 501A1=12x6xM4 |
| 17K29 | =4 | 3 | 501A1=14x9xM6 |
| 17K29 | =6, =5 | 2 | 501A1=12x6xM4 |
| 17K32 | =4 | 3 | 501A1=14x9xM6 |
| 17K32 | =6, =5 | 2 | 501A1=12x6xM4 |
| 17K33 | =4 | 3 | 501A1=14x9xM6 |
| 17K33 | =6, =5 | 2 | 501A1=12x6xM4 |
| 17K34 | =4 | 3 | 501A1=14x9xM6 |
| 17K34 | =6, =5 | 2 | 501A1=12x6xM4 |
| 17K42 | =4 | 3 | 501A1=14x9xM6 |
| 17K42 | =6, =5 | 2 | 501A1=12x6xM4 |
| 17K43 | 1 | ||
| 17K45 | 1 | ||
| 17K46 | 1 | ||
| 17K47 | 1 | ||
| 17LK3 | =12 =14 =16 =20 | 4 | 30Y89 |
| 7U56 | 1 |
