Knee joint bars, light duty

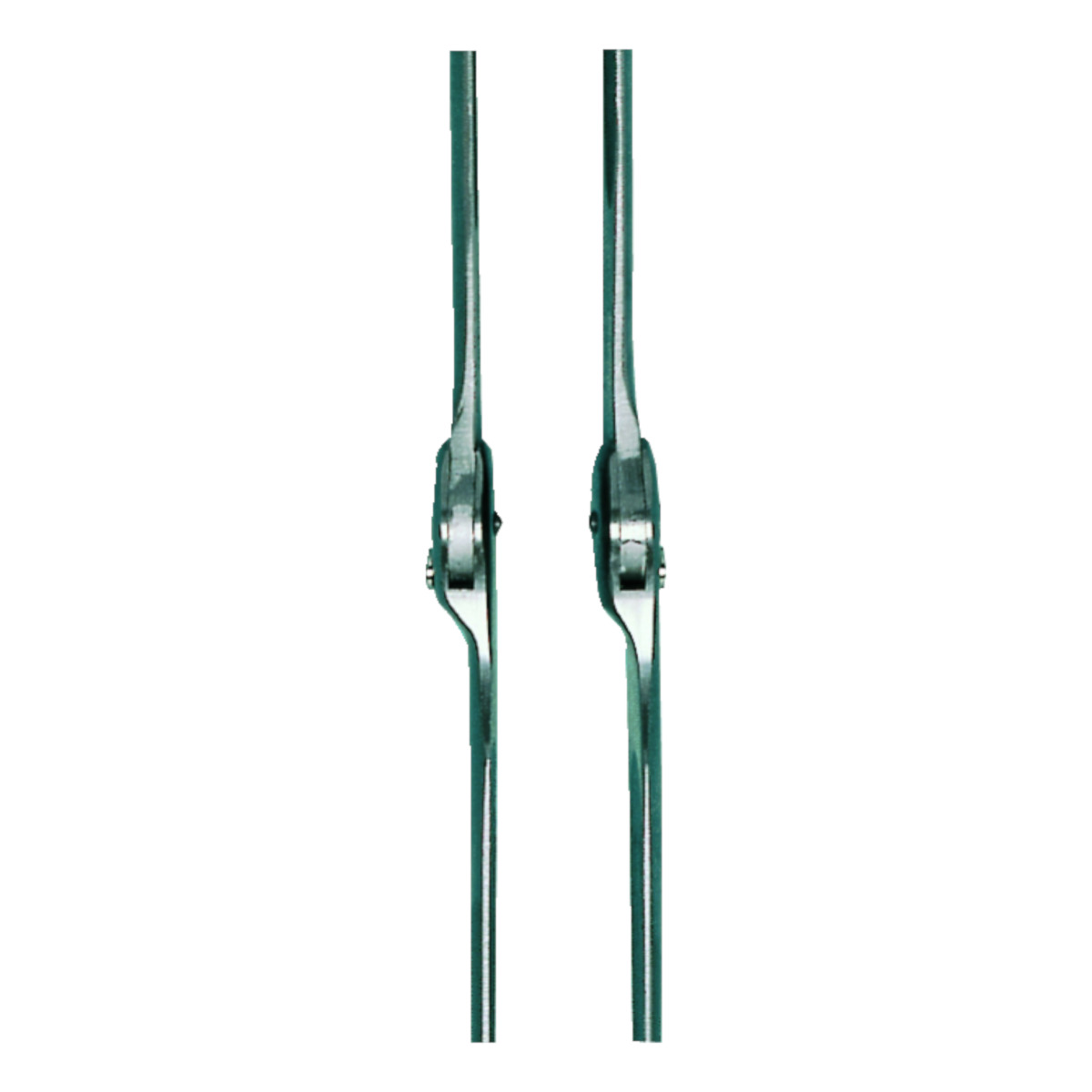

Light duty stainless steel knee joint bar
Light duty stainless steel knee joint bar

Overview

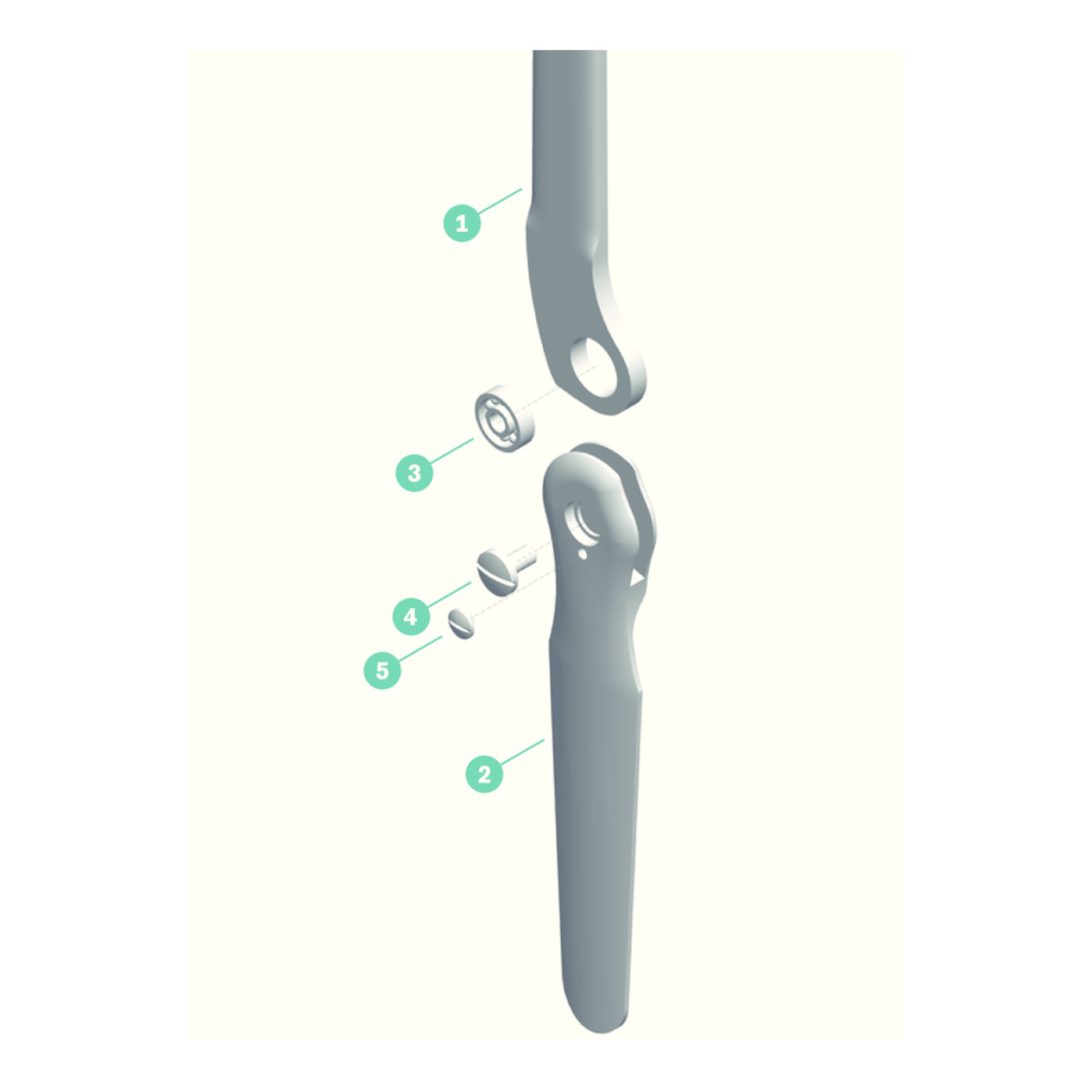

Stainless steel joints with ball bearing, concave half-round bar profile, forged upper and lower joint bars and the head of the inner joint bar is offset to the outside, the head of the outer joint bar to the inside.

7U30=L is left side

7U30=R is right side

Specifications

Milled Head24x4 mm
Upper Length from Joint Center340 mm
Lower Length from Joint Center150 mm
Bar Width20 mm (0.787 in)
Bar Thickness2.3 mm
MaterialStainless Steel
QuantityPair
