Linear Transducer
Reimbursement
- Suggested HCPCS Coding
Included in base code. L6611 (when used as additional switch)
Overview
For assembly between the outer and inner prosthetic socket

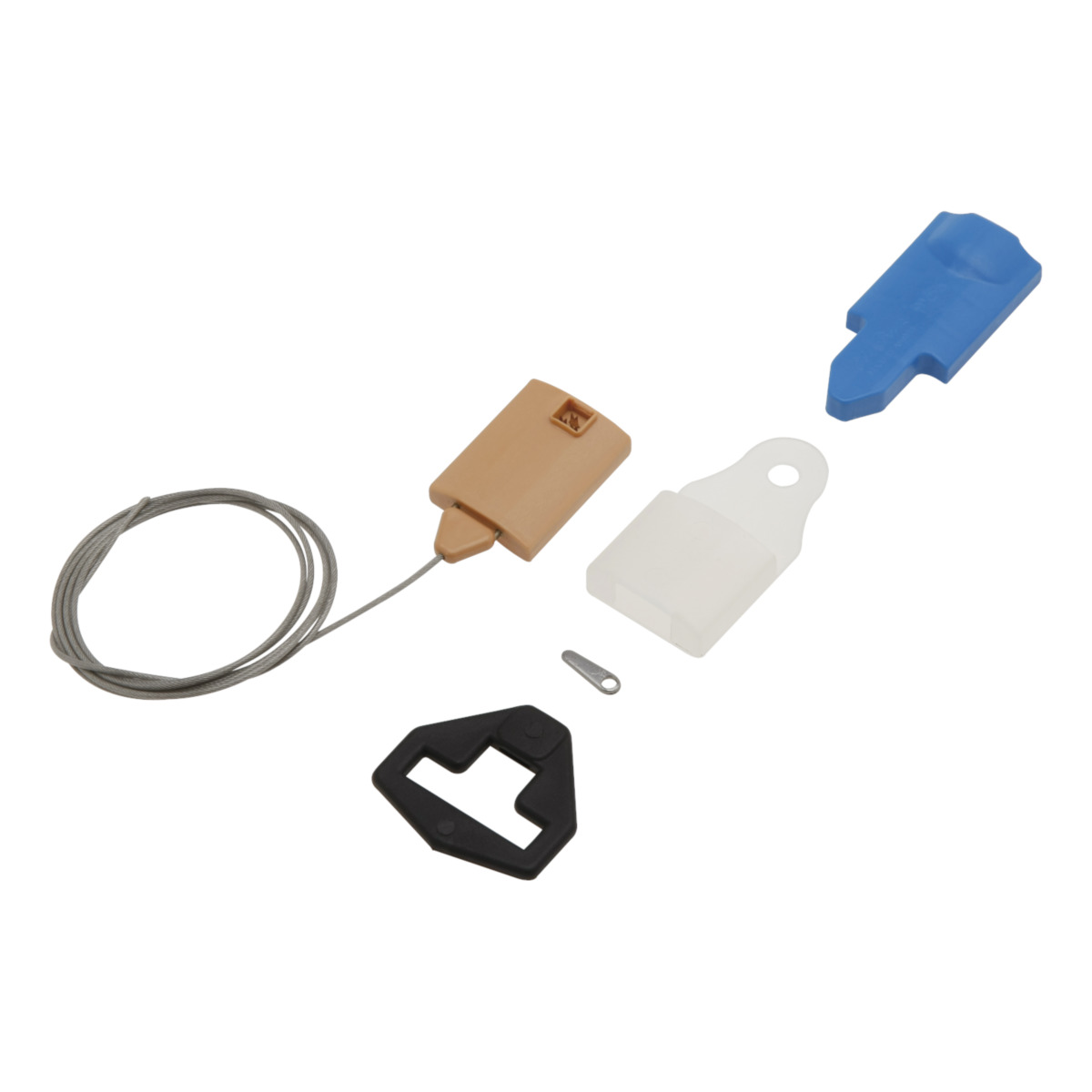

The 9X52 Linear Control Element allows continuous, proportional control of prosthesis components using harnesses.
The 4-step 9X53 Control Element allows for proportional control of prosthetic components at four different speed levels using harnesses. In combination with the 12K100 DynamicArm®, it provides the possibility to selectively switch between the different system components.
| Reference number | 9X52/9X53 |
|---|---|
| Weight | 11 g |
| Cable travel | 8 mm |
| Max. operating force | 10 N |
